| Prod Model: |
LYD-MINI-03 |
| Net Weight: |
17g |
| Static Power Consumption: |
<1W |
| Output: |
3 Circuit |
| Connection Mode: |
Common Anode |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Voltage: |
DC5-24V |
Product Description
Basic Info| Supply Voltage: | DC5-24V |
| Max. Load Power: | 72w |
| output: | 3 circuit |
| Output current: | 2A/ch |
| Working temperature: | -20~55ºC |
| Power connection: | USB plug |
| Place of Origin: | Shenzhen,China |
| Brand name: | louita |
Product DescriptionThis Mini RGB controller adopted the advanced computer control. Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with low cost,easy connection,simple manipulation and others advantages.User can choose the mode of fade, strobe,Blasting flash,flicker,and other Static color model. What's more, this controller have the characteristics of small volume, easy to carry,etc, its popular amount the many markets.
| Input Voltage | DC 5-24V |
| Peak Output Power | 30W@5V, 72W@12V | PWM Level | 256 Level |
| Peak Output Current | 2A*3CH | polarity protection | DC & 4-pin Plug |
| Type | Wire | Working Temperature | -20ºC-60ºC |
| Remote Battery | CR2025 3V | Certificate | CE & ROHS |

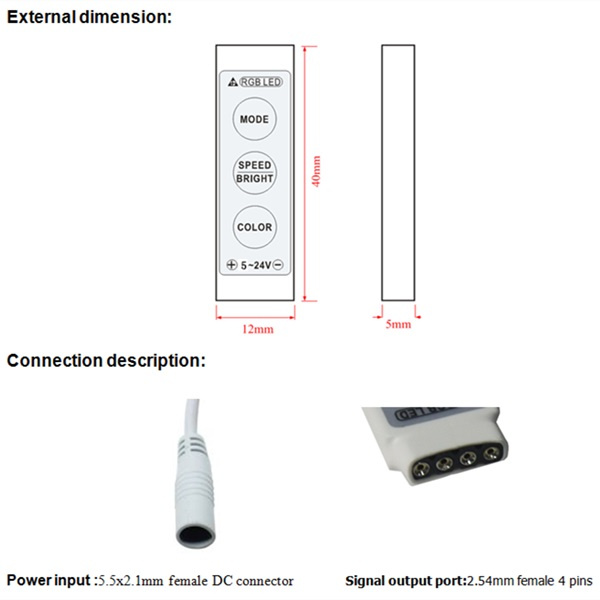

| Remote Standby Current | <1μA | Size | L85.9×W39.6×H6.9mm |
| Remote distance | 10 meters (blank area) | Materials and processes | SMD and Double FR4 PCB |
Functions| Dynamic Mode | 19 | Memory Function | Yes |
| Dynamic speed level | 10 | | |
| Static Color | 9 | | |
| Static Brightness Level | 5 | | |
| | No | Pattern | No | Pattern | No | Pattern |
Dynamic | 1 | 7 color | 8 | Purple fade | 15 | B blast flash |
| 2 | 3 color fade | 9 | Blue fade | 16 | P blast flash |
| 3 | 7 color fade | 10 | 3 color Jump | 17 | Y blast flash |
| 4 | White fade | 11 | 6 color jump | 18 | W blast flash |
| 5 | Green fade | 12 | 3 color flash | 19 | 3 blast flash |
| 6 | Yellow fade | 13 | R blast flash | 20 | Auto cycle |
| 7 | Red fade | 14 | G blast flash | | |
Static | 1 | Red | 8 | cyan | 15 | brown |
| 2 | Orange | 9 | Light blue | 16 | white |
| 3 | deep yellow | 10 | Sky blue | 17 | Milk-white |
| 4 | Yellow | 11 | blue | 18 | Pink-white |
| 5 | Light yellow | 12 | Dark blue | 19 | Yellow-white |
| 6 | green | 13 | bluish violet | 20 | blue-white |
| 7 | Light green | 14 | purple | | |

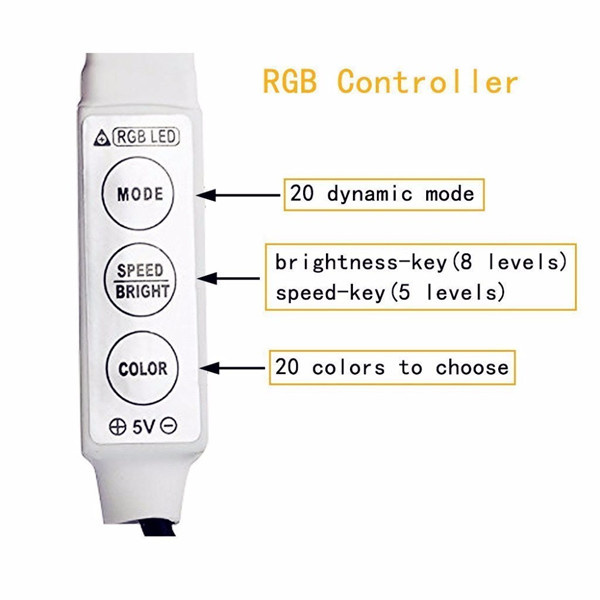

Speed/Bright key:this is the adjustable key. Press this key can adjust the light's brightness(total 5 level) when in Static mode;Press this key to adjust the speed(total 5 level)when in dynamic models.Press this key last about 3 seconds to turn OFF/ON this controller.
