USB Type a Male to Type a Male Extension Cable

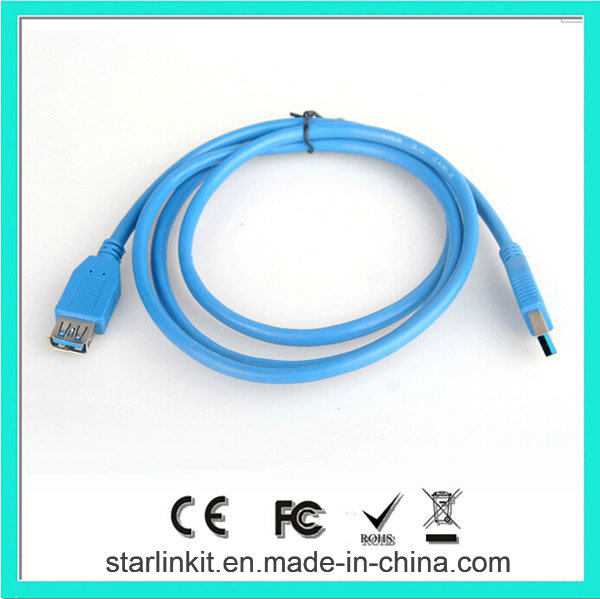

Name: USB Type a Male to Type a Male Extension Cable
Brand: all-electronics-online.com
SKU: 791255035
Availability: InStock
Rating: 4.3 (34 reviews)

Price:	US $ 0.5-15piece
Min Order:	100piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	USB-TA-M/M
Version:	3.0
Application:	Computer
Interface Type:	USB
Material:	Copper
Pin:	4Pin
Feature:	Waterproof
Power Cable Type:	Three-pin
Shape:	Round
Computer Cable Type:	Data Line
Printer Cable Type:	USB
Color:	Blue

Product Description

Product Description

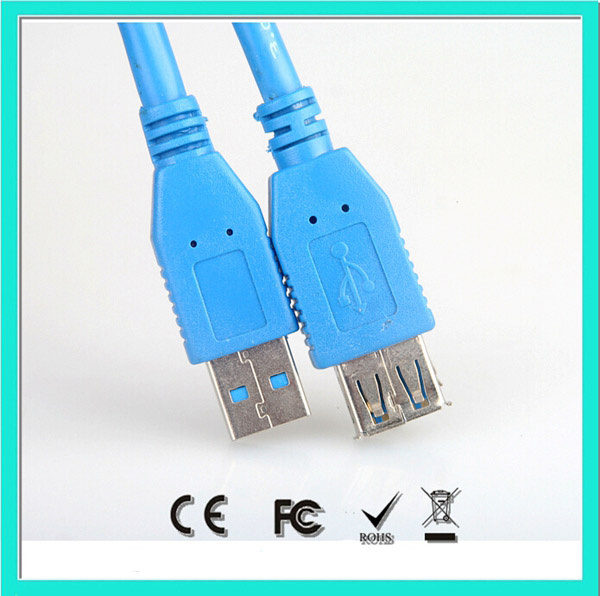

USB type A male to type A male extension Cable

Specifications:

panel mount USB cable USB 2.0 type A male to A male with screw USB extension cable

Length:10cm-200cm customized

Color:black/grey optional

Conductor:24/28AWG bare copper

Feature:

1.Type: A male to A male USB Cable

2.Connector plating: Gold-plated, Nickel-plated

3.Shielding: Foil and Braid Nylon

4.Jacket color: Blue, Black White or optional

5.Conductor: Bare copper, Tinned copper, Gold-plated

6.Over Mold: PVC 80PA, UL94V-0, Black, TPE

7.Withdraw Force: 10N min

8.Insertion Force: 35N max

9.Working Temperature: -25ºC~+85ºC

10.Length: 75cm

11.OD: 3.0-4.5mm

12.Speed: 480Mbps

13.Salt Spray Test: 24 hours

Electrical:

1.100% open & short test

2.Hi-Pot: DC 300V 10ms

3.Insulation Resistance: 10M OHM /300V Min.

4.Contact Resistance: 0.01 OHM Max.

5.Shield up to 65% braid.

6.Working Temperature: -25 ~ +85

Cable length	0.9m,1.5m ,2m length customizable
Cable shape	Circular
Competible for	Circular cable suitable for Android,smartphone with micor port such as samsung,htc, Blackberry,Kindle,Tablet
Functions	Charging and sync data transfer
Cable colors	Black,White, Blue, Green, Orange, Pink
Package details	General in PE bags,or provide retail package as your requirement
MOQ	100pcs,sample available
Delivery time	Sample within 2 days. 1000pcs within 5-15days

Mechanical:

Over mold: PVC 70Pa UL94V-0 Black

Pre mold: PE Low Density

Contact: Copper Alloy.

Insertion Force: 35 N Max.

Withdraw Force: 10 N Min
