UTP Cat5e 90 Degree Keystone Connector RJ45 Keystone Jack
| Price: |
US $ 0.45-0.66/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
LK-5KJU015 |
| Product Name: |
UTP Cat5e 90 Degree RJ45 Keystone Jack |
| Service: |
OEM/ODM |
| Sample: |
Available |
| Test: |
Fluke Test |
| Housing Material: |
PC UL94V-2 |
| Insert Material: |
ABS |
| Contact Material: |
Phosphor Bronze |
| Wire: |
AWG 24~26 |
| Usage: |
Server |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

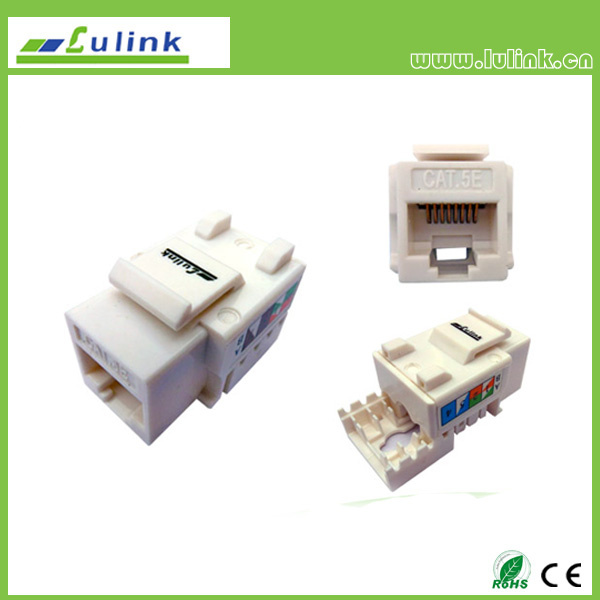

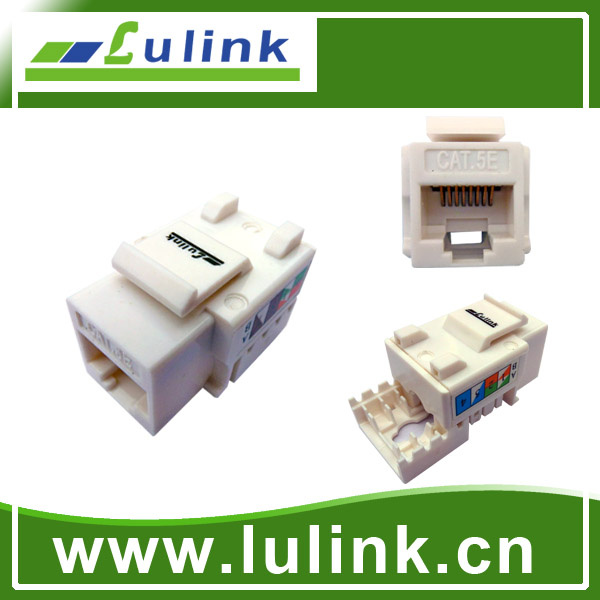

UTP Cat5e 90 degree keystone connector rj45 keystone jack
| Notes: | |
| Electrical: | |
| 1. Voltage rating | 125 VAC RMS |
| 2. Current rating | 1.5 AMP |
| 3. Contact resistance | 100 milliohms max |
| 4. Insulation resistance | 1000 megohms min @ 500 VDC |
| 5. Dielectric strength | 750 VAC RMS 60Hz, 1MIN |
| Environmental: | |
| 1. Storage | -40°to +85° |
| 2. Operation | 0°to 70° |
| Conform to TIA/EIA 568B category 5e |
| Mates with modular plug conforming to FCC part 68, subpart F. |

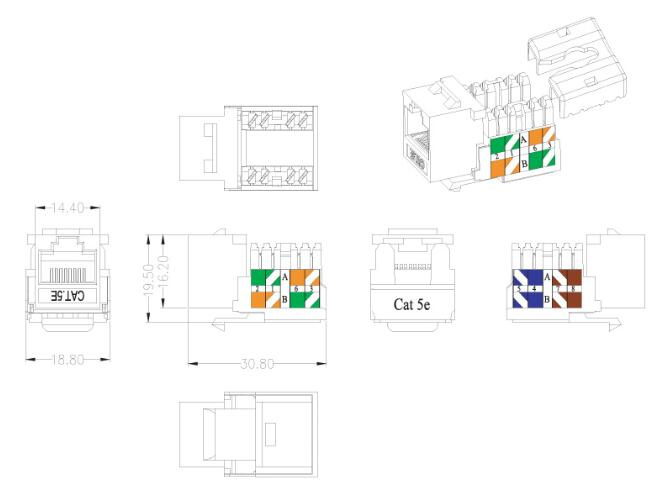

| Mechanical: | |
| 1. Housing material | PC UL94V-2 |
| 2. Insert material | Flame retardancy ABS UL94V-2 |
| 3. PCB material | FR-4, thickenss: 1.6mm |
| 4. Contact material | Phosphor bronze stamp PIN T=0.35mm |
| 5. IDC contact material | Phosphor bronze T=0.50mm with nickel plating |
| 6. Wire | AWG 24~26 |
Related products | Product Name | Item No. |
| Cat 3e 6P4C unshielded keystone jack | LK-3KJU001 |
| UTP Cat5e rj45 keystone jack, 90 degree | LK-5KJU015 |
| UTP Cat5e rj45 keystone jack tooless | LK-5KJU022 |
| FTP Cat5e rj45 keystone jack, 180 degree | LK-5KJF002 |
| UTP Cat5e rj45 keystone jack, 180 degree short type | LK-5KJU001 |
| UTP Cat5e keystone jack, Tooless | LK-5KJU021 |
| UTP Cat5e keystone jack, 90 degree | LK-5KJU024 |
| UTP Cat5e keystone jack, 90 degree, tooless | LK-5KJU027 |
| FTP Cat5e keystone jack, 90 degree | LK-5KJU004 |
| UTP Cat5e in-line coupler rj45-rj45 | LK-5KJU018 |
| FTP Cat6 rj45 keystone jack, 180 degree | LK-6KJF003 |
| UTP Cat6 rj45 keystone jack, 180 degree | LK-6KJU008 |
| UTP Cat6 rj45 keystone jack tooless | LK-6KJU009 |
| UTP Cat6 in-line coupler rj45-rj45 | LK-6KJU020 |
| UTP Cat6 rj45 keystone jack, 90 degree, tooless | LK-6KJU014 |
| UTP Cat6 keystone jack, 180 degree, short type | LK-6KJU016 |
| ... | ... |
Why choose us??a. Clean And Tidy Workshop + Skilled Workers.
b. Advanced test facilities + Test + Certification = Quality Guarantee ! Ensure you use our products worry-free.
c. Competitive price, save your money.d. Full range products, offer you one-stop purchase, save your time, save your delivery cost.
The information for keystone jack / RJ model | Type: | Cat5e, Cat6, Cat6a, Cat7 |
| Shield: | Unshield (UTP) and Shield (with iron clad) |
| Degree: | 90° and 180°, can used with face plate and patch panel |
| Style: | Toolless and with tool |
| Channel test: | Gold plating thickness>=3U |
| Unit test: | Gold plating thickness>=50U |
| Test: | Fluke test |
| Certificate: | RoHs / CE / UL |
| Flame-retardant level: | UL94-V0 >> UL94-V1 >> UL94-V2 |
A keystone module is a standardized snap-in package for mounting a variety of low-voltage electrical jacks or optical connectors into a keystone wall plate, face plate, surface-mount box, or a patch panel. Keystone modules are held in place with flexible tabs. This allows them to be snapped into a mounting plate with correspondingly-sized rectangular holes, called ports. All keystones, regardless of the type of jack they carry, are interchangeable and replaceable. This provides much flexibility in arranging and mounting many different types of electrical jacks in one plate or panel without requiring customized manufacturing. Some keystones use a pass-through type connector, where there is a jack on both the front face as well as the rear side. Others only have a jack on the front and employ a different mechanism for hard-wiring signal cables to the rear, such as a mini 110 block, an insulation-displacement connector, or a crimp or solder connection. Types of modules available
Many types of jacks are available in the keystone module format, limited mainly by their physical size, including: · 6P6C (RJ-11) modular jacks (telephone)· 8P8C (RJ-45) modular jacks (computer networking), unshielded for UTP cable and shielded for STP.· F connector (TV antenna/cable/satellite), 75 ohm coaxial· RCA jacks (audio/video)· 4-pin mini-DIN (S-Video jacks)· HDMI jacks (high-definition video and audio)· Optical fiber connectors· BNC connector (50 ohm coaxial)· USB jacks Company information Lulink Electronics Technology Co. Ltd

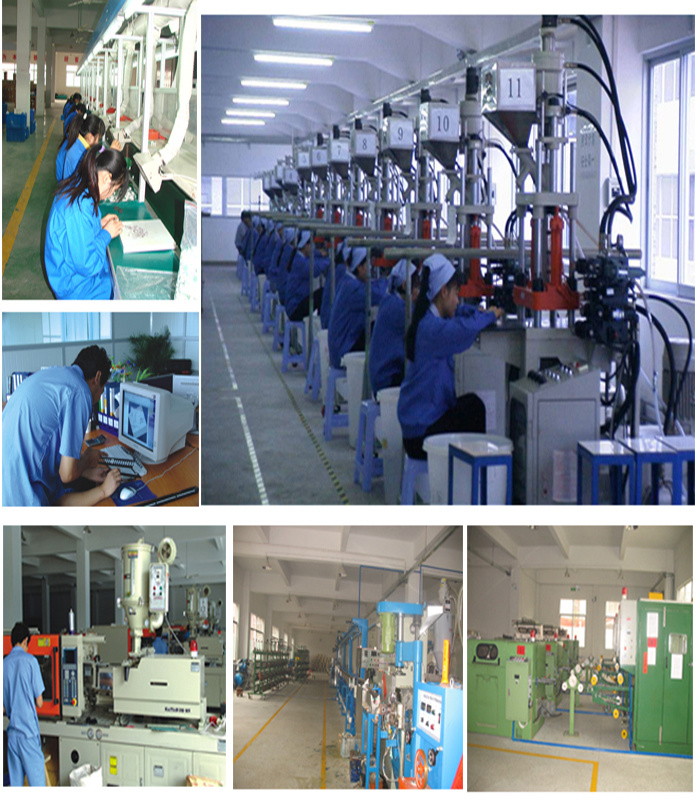

Established in 2005 with headquarter and R&D managing department based in Guangzhou.Lulink is an export organization specialized in developing, designing, producing network intelligent wire and telecommunication equipments, the products range consists of main categories and metal sheeting, Lulink is supported by a strong R&D team which has more than three years experience in the field of technology and integrating brilliant designers, technicians, support groups, sales and marketing organizations. We offer and accept OEM/ODM service to customers. Our Main products:Copper System: LAN cables, Adaptor, Connector and Spliter, Cabinet, PATCH CORD, TOOLS, Coaxial cables Fiber Optic: fiber optic patch cord, PLC splitter, adapter, connector, closure, media converter, etcCable Assembly: USB cable, HDMI cable, VGA cable, AV cable, DVI cable, etcAll has been certified by ISO9001:2008/ROHS/CE/UL/3C and so on.
FAQ Q1. How can we know the products' quality?We suggest you to buy a sample product first before placing a big order. Or you could talk to us online or send us an email if you need more detailed information for the specific product.Q2. How about the sample fee and sample time?For sample order, it is about 3-7 working days. As for sample fee is charged according to the size of the product.Q3: Can you help me make my own design?Yes, Sure. We can make OEM and ODM items for you as long as you can tell us your idea or provide pictures. We have done many OEM projects for our customers.Q4. What is your payment term? A. T/T, L/C, Western Union, money gram and PayPal are all accepted. B. For bulk production: 30% deposit pay before mass production, and 70% pay before shipment.Q5. Can we visit your factory?Yes, you can. You are most welcome to visit our factory and office. Please let us know before coming over and we will provide detailed route and hotel booking suggestions.
Lulink Electronics Technology Co., Ltd. Built on the year of 2001, initially as a leading network communication product supplier, engaged in connecting every corner of the world via the network in the most convenient manner and enriching people's life.
Now Lulink became one of Group company focus on the development, production, sales and service of Telecommunication products and generic cabling. The Factory base location on province Zhejiang, Guangdong. The office and Research central on Guangzhou, Dongguan and Shenzhen,? Which have hundreds staffs, and the capital asserts reach dozens of million RMB.

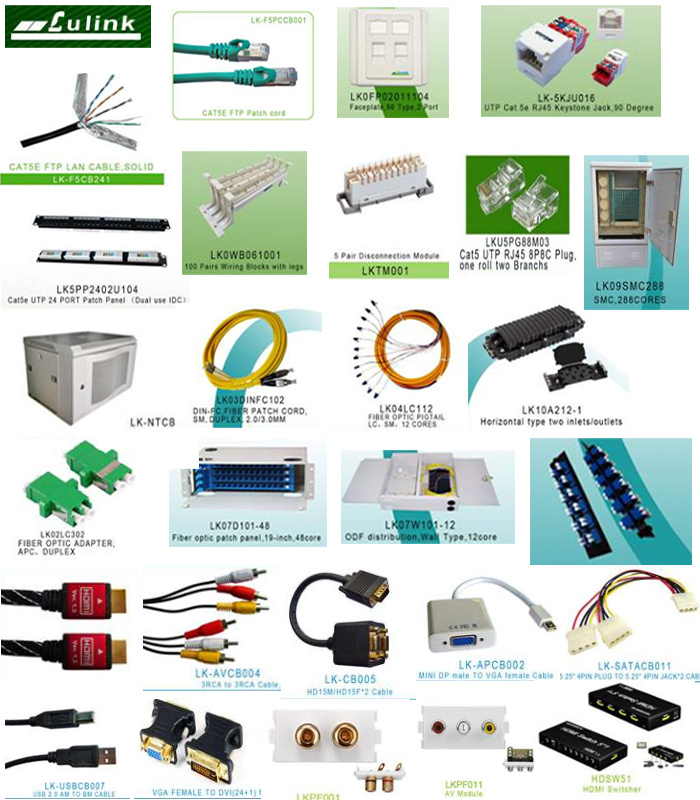

Luink's progress based on the market demands and strong requests of loyal customers to Lulink products. Our main products include all cabling components and finished products: LAN cables, patch cable, faceplate, keystone, patch panel, cabinet, fiber optical cable, fiber optical adaptor, FO patch panel, ODF; And cable assembly as USB cables, HDMI cables, VGA cables, power cables, AV cables, computer cables and OEM cables. We endeavor to develop new products at a high speed to meet your needs, and also provide the solution for engineering project. The quality and price of our products/services are very competitive which are affirmed fully by our clients. Our markets spread all over Europe, America, Southeast Asia and the Middle East.
Lulink will do more on the market research, Humanistic product design, professional service improvement, We expect to develop and make progress together with you while us continuously perfect and surpass ourselves. Let us work together to create a better and more brilliant future!
Thank you for visiting our website. Hope you find appropriate products and service from us.
