| Prod Model: |
DSC-Cat6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CAT6 LAN Cable: |
0.57mmcca, Cu |
| Application: |
RF Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
UL |
| Model: |
CAT6 Network Cable with UL CE, RoHS, ISO |
| Brand: |
CAT6 Network Cable with UL CE, RoHS, ISO |
Product Description

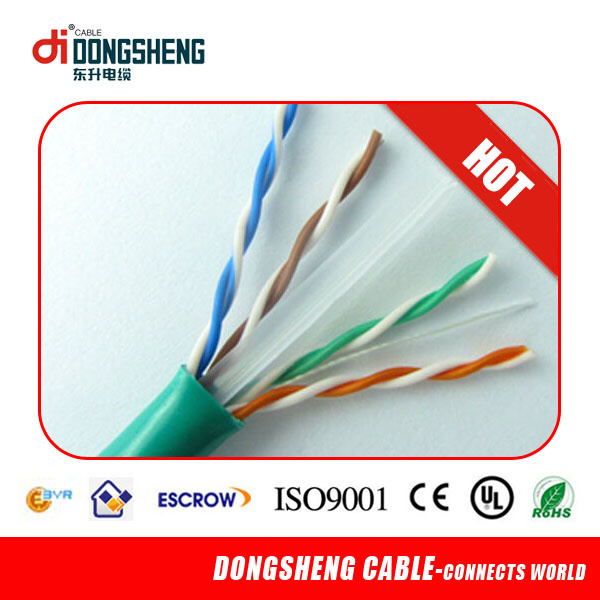

UTP CAT6 Network Cable with CE RoHS ISO UL
utp cat6
Cat6 Lan Cable,Cat6 FTP,FTP Cat6,SFTP Cat6,Lan Cable,Network Cable,Data Cable
Tips: We can ensure the cable pass FLUKE TEST 100% for CU conductor, with a high performance in your Cabling solution, or projec.
1. Certification: CE. RoHS,REACH,ISO Listed
2. Compliance: ETL verified ANSI TIA/EIA568-2, ISO/IEC 11801. RoHS Compliant.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment
4. Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc
Specifications:
SFTP Cat6 Lan Network Cable Construction: sftp cat6 cable
Item |
Conductor |
Number Of Pairs |
Shielding |
Drain Wire |
O.D. |
Cat6 UTP |
0.57mm BC/CCA |
4 |
Non |
Non |
6.2mmPVC
ROHS,UV,LSZH,UL,Reach |
Cat6 FTP |
0.57mm BC/CCA |
4 |
Aluminum Foil |
Yes |
6.8mm PVC
ROHS,UV,LSZH,UL,Reach |
Cat6 SFTP |
0.57mm BC/CCA |
4 |
Aluminum Foil + Alloy Braiding |
Yes |
7.2mm PVC
ROHS,UV,LSZH,UL,Reach |
UTP Cat6 Outdoor |
0.57mm BC/CCA |
4 |
Non |
Non |
PVC+PE
PVC
ROHS,UV,LSZH,UL,Reach |
FTP Cat6 Messenger |
0.57mm BC/CCA |
4 |
Aluminum Foil |
Yes |
PVC+Messenger
ROHS,UV,LSZH,UL,Reach |
Cat6 SFTP Cable Technical Performance(100m)
Frequency MHz | ATT ≤dB/100m | NEXT ≥dB/100m | ELFEXT ≥dB/100m |
| 0.772 | 1.80 | 76.1 | 70 |
| 1 | 2.00 | 74.2 | 67.8 |
| 4 | 3.80 | 64.9 | 55.8 |
| 8 | 5.30 | 60.3 | 49.7 |
| 10 | 6.00 | 58.8 | 47.8 |
| 16 | 7.60 | 55.3 | 43.7 |
| 20 | 8.50 | 54.1 | 41.8 |
| 25 | 9.50 | 52.9 | 39.8 |
| 31.25 | 10.70 | 49.5 | 37.9 |
| 62.5 | 15.40 | 47.4 | 31.9 |
| 100 | 19.80 | 44.1 | 27.8 |
| 200 | 29.00 | 38.6 | 21.8 |
| 250 | 32.80 | 38.9 | 19.8 |
Cat6 SFTP Cable Applications:
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
Applications: Cat6 SFTP Cable
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
Cat6 SFTP Cable Packing:
305m/Wooden Drum/Carton,500m/wooden drum,
Customer's requirement also be welcome
