| Prod Model: |
LK-F5CB241 |
| Sample: |
Avaliable |
| Color: |
White/ Black |
| Application: |
Submarine Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
UL |
Product Description

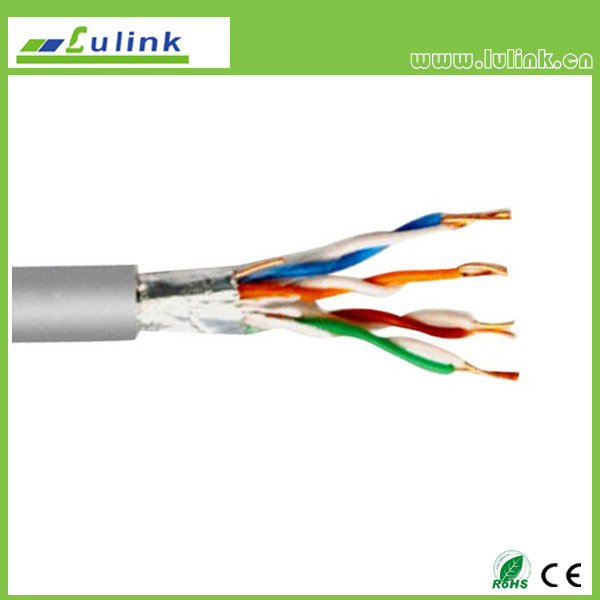

UTP/FTP/SFTP Cat5e Cat6 CCA Cu LSZH 24AWG Network Wire Lan Cable

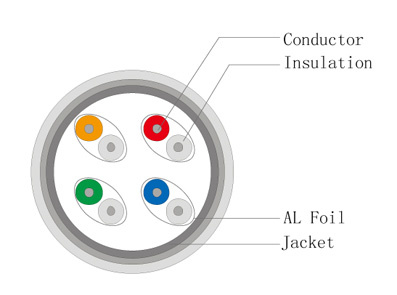

Structure Chart:

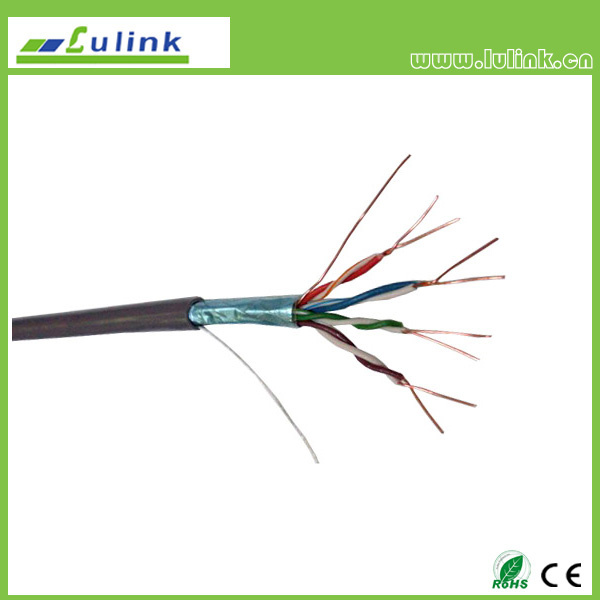

Cat5e FTP Lan Cable:
Cat5e FTP LSZH Lan Cable:

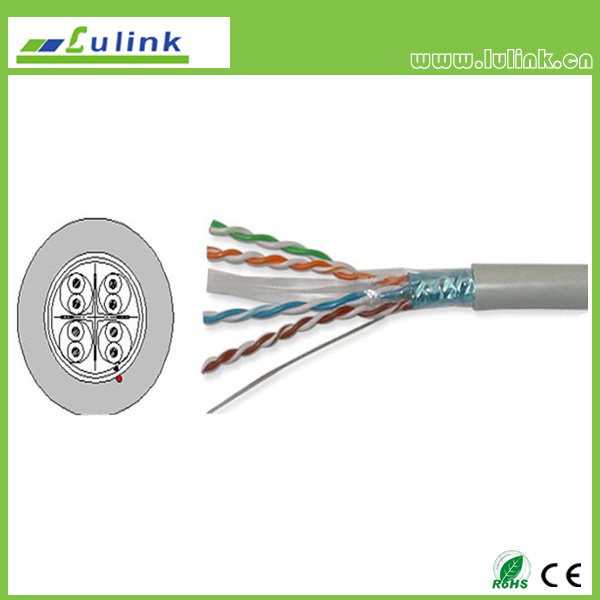

Cat6 FTP Lan Cable:

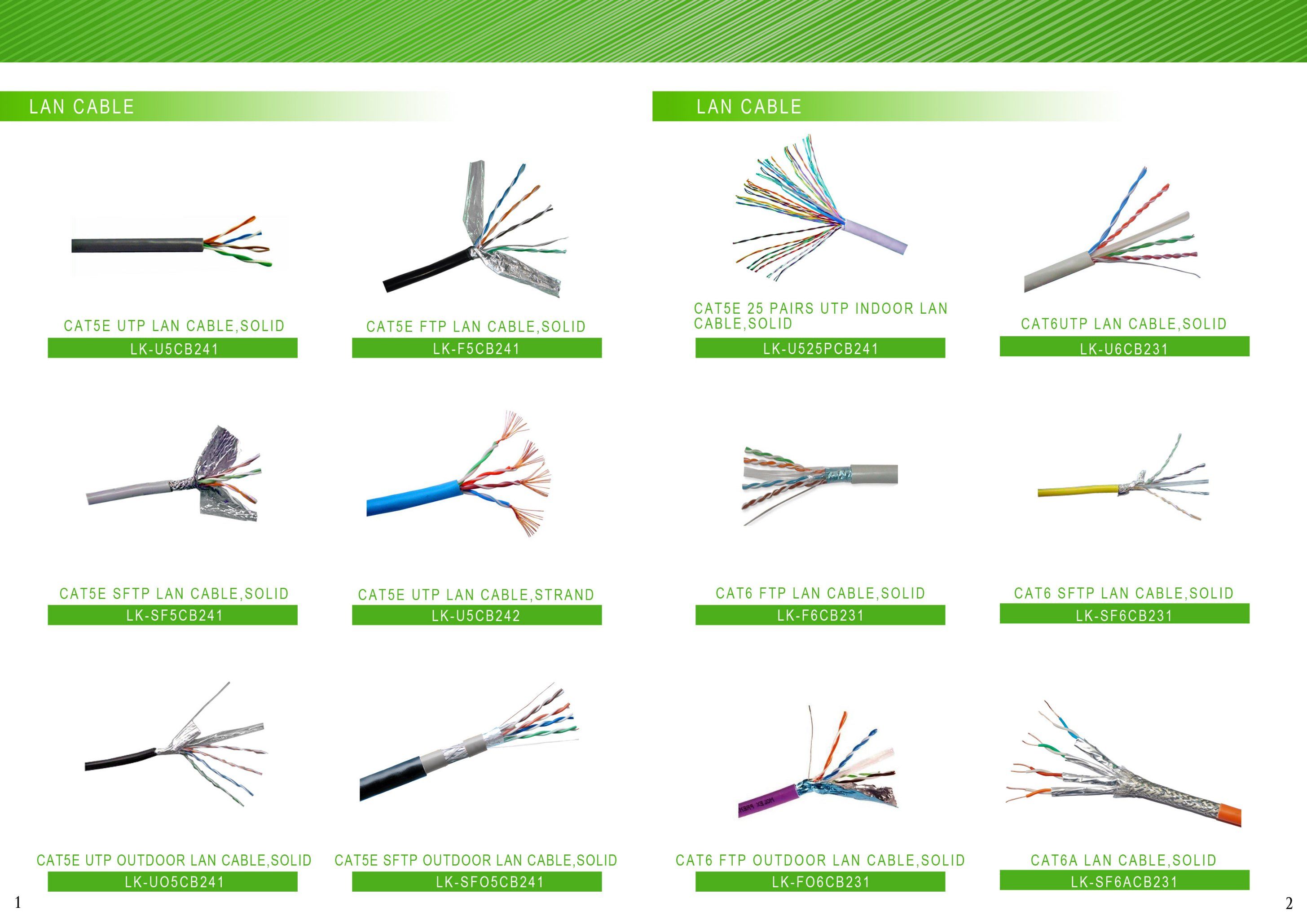

Similar Network Cables:
PRODUCT DESCRIPTION
1. This kind of cable use bare copper to be the center conduction, with the
specification is 24AWG; PE is adopted to be the dielectric, Each pair of the
coppers is covered by polyester film and AL foil even outer. The earth wire is
installed between these two covers. The jacket is made of fireproof material, and
it's so significative to the Cat.5e communication.
2. This Cat.5e FTP cable is well conformed to the ISO/IEC, TIA/EIA and EN standards
and whose electrical characteristics are exceed the lastest ISO/IEC Cat.5e
standards.
3. LSZH: means "Low smoke zero halogen", which is the symbol of environmental
protection.
ELECTRICAL CHARACTERISTICS
1. Impedance: 100±15
2. Static electric capacity: max:17.1nf/kf
3. Resisitance : max:28.6/kf
4. Unbalance resisitance: max 5%
5. Unbalance capacity: max 330pF/100m
6. Roted communicate rate: 65%
PHYSICAL CHARACTERISTICS
1. Copper diameter: 24AWG
2. Outer diameter: 6.1mm
3. Shielding material: AL foil
4. Earth wire: 24AWG bare copper or CCA
5. Minimum bend radius: O.D.*6~8
6. Maximum pulling tension: 10kg
7. Jacket material: PVC or LSZH
8. Roted temperature: -20~60ºC
9. Packing: Carton
APPLICATION
1. 10/100/1000Mbps Ethernet;
2. 100VG-Anylan;
3. Token ring;
4. ATM 155/ATM 622 etc;
STANDARD
1. ISO/IEC-11801
2. EN-50173
3. TIA/EIA-568-A-5
Lulink Electronics Technology Co. Ltd

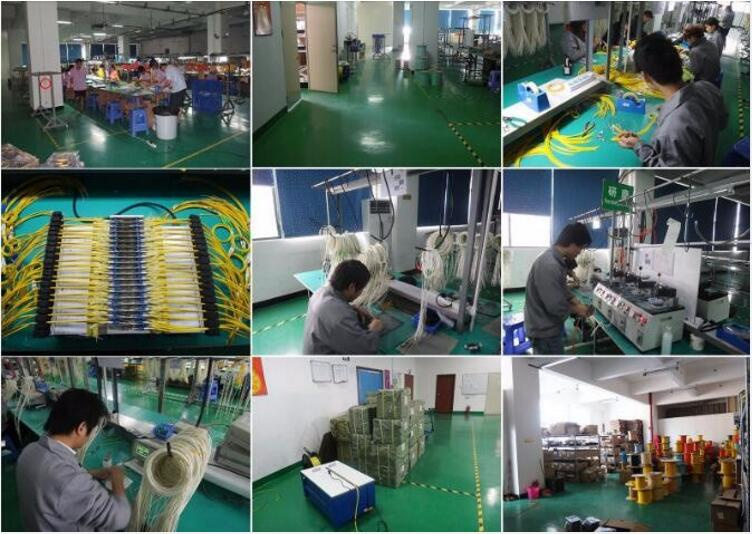

Established in 2005 with headquarter and R&D managing department based in Guangzhou.
