UTP FTP SFTP Cat5e CAT6 Network Cable LAN Cable

Product Description

PRODUCT DESCRIPTION

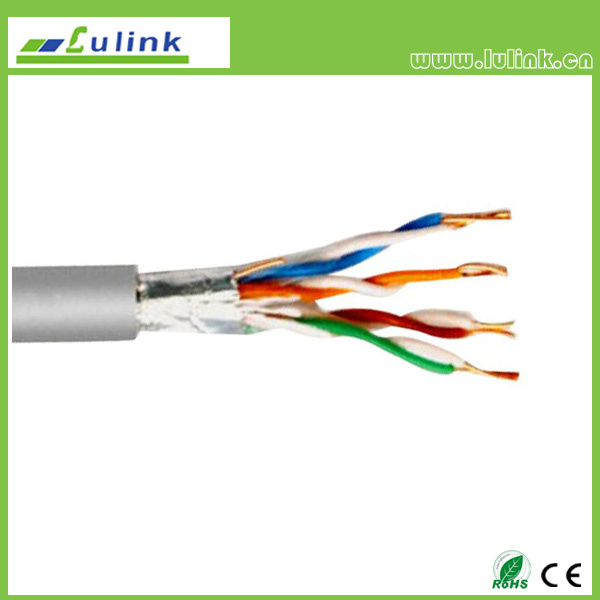

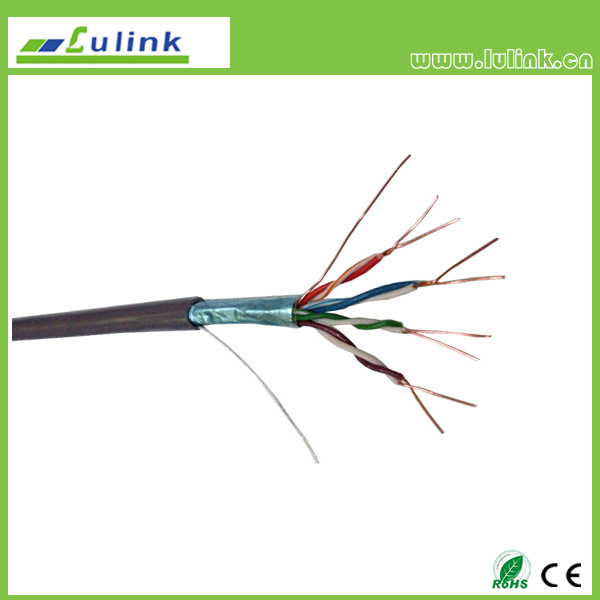

1. This kind of cable use bare copper to be the center conduction, with the
specification is 24AWG; PE is adopted to be the dielectric, Each pair of the
coppers is covered by polyester film and AL foil even outer. The earth wire is
installed between these two covers. The jacket is made of fireproof material, and
it's so significative to the Cat.5e communication.
2. This Cat.5e FTP cable is well conformed to the ISO/IEC, TIA/EIA and EN standards
and whose electrical characteristics are exceed the lastest ISO/IEC Cat.5e
standards.

ELECTRICAL CHARACTERISTICS
1. Impedance: 100±15
2. Static electric capacity: max:17.1nf/kf
3. Resisitance : max:28.6/kf
4. Unbalance resisitance: max 5%
5. Unbalance capacity: max 330pF/100m
6. Roted communicate rate: 65%

PHYSICAL CHARACTERISTICS
1. Copper diameter: 24AWG
2. Outer diameter: 6.1mm
3. Shielding material: AL foil
4. Earth wire: 24AWG bare copper  or CCA
5. Minimum bend radius: O.D.*6~8
6. Maximum pulling tension: 10kg
7. Jacket material: PVC or LSZH
8. Roted temperature: -20~60ºC
9. Packing: Carton

APPLICATION
1. 10/100/1000Mbps Ethernet;
2. 100VG-Anylan;
3. Token ring;
4. ATM 155/ATM 622 etc;

STANDARD
1. ISO/IEC-11801
2. EN-50173
3. TIA/EIA-568-A-5



Company Information:

Lulink Technology, whose full name is Lulink Electronics Technology Co., Ltd, build on the year of 2001, initially as a leading network communication product supplier, engaged in connecting every corner of the world via the network in the most convenient manner and enriching people's life.

Now Lulink became one of Group company focus on the development, production, sales and service of Telecommunication products. The Factory base location on Hangzhou City, The office and Research central on Guang zhou ,Dong guan and Shen zhen,  which have hundreds staffs, and the capital asserts reach dozens of million RMB.

Luink's set up based on the market demands and strong requests of loyal customers to Lulink products. Now, our main products containF Five  parts: Networking cabling system, Fiber optic system ,Cable assembly,Smart Home system and solor system,thus a product diversification development pattern formed.

Lulink Will do more on the market research, Humanistic product design, professional service improvement, We expect to develop and make progress together with you while us continuously perfect and surpass ourselves. Let us work together to create a better and more brilliant future!

Lulink Service:

1)Reply your enquiry within 24 working hours;
2)Experienced staffs answer all your questions in fluent English;
3)Customized Design is available,OEM&ODM are welcomed;
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs;
5)Special discount and protection of sales area will be provided to our distributor.

FAQ:

Q1: What kind of product do you offer?
A: Our main products include all cables: LAN cables, patch cable, faceplate, keystone, patch panel, cabinet, fiber optical cable, fiber optical adaptor, FO patch panel, ODF, and cable assembly as USB cables, HDMI cables, VGA cables, power cables, AV cables, computer cables and OEM cables.Also launch Smart Home system.

Q2: What's your MOQ? Can you offer free samples?
A: For network cable and fiber optic cable,normally,our MOQ is 3000m per item.
Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our lead time is 5~15 working days,subject to the order quantity.

Q4: What's your payment term?
A: We accept T/T,Paypal,Western Union,MoneyGram.Other payments accept through negotiation.

Q5:What's your shipping way?
A: We can support all different kinds of shipping way as following:
By Express,Like Fedex,DHL,UPS,TNT and ect.
By Air,need to know the destination airport.
By Sea,need to know the name of the port of destination.
Other delivery methods are available upon request from clients.
