SHENZHEN MYSUN INSULATION MATERIALS CO., LTD. >> VDE Certificated Flexible Silicone Cable 2cores to 4cores Cable

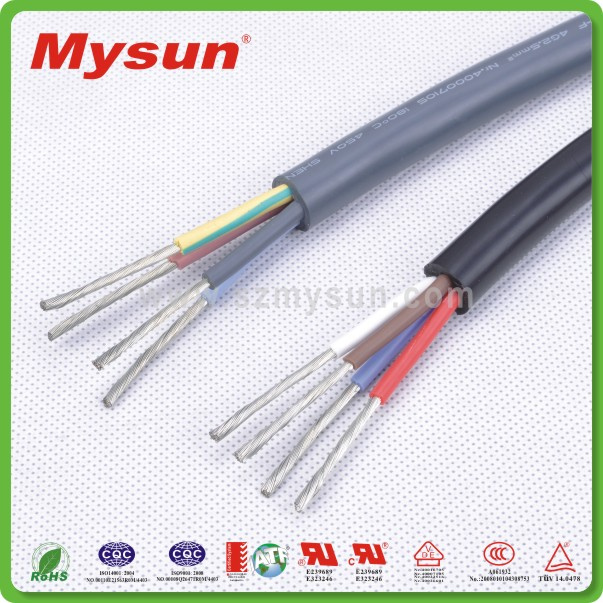

VDE Certificated Flexible Silicone Cable 2cores to 4cores Cable

VDE Certificated Flexible Silicone Cable 2cores to 4cores Cable
Price: US $ 0.5-0.9/Meter
Min Order: 5000/Meter
Pay Type: L/C,T/T,Paypal
Prod Model: VDEH05S-F
Type: Insulated
Conductor Type: Stranded
Application: Heating
Conductor Material: Copper
Insulation Material: Silicone Rubber
Certification: CSA, Ts16949
Sheath Material: Silicone Rubber
Range Of Application: Home Appliance,LED,Metro
Brand: Mysun

Product Description

Specifications:

Nominal voltage: 450/750V

Temperature range: 180C

Standard: VDE 0282-15

Conductor: Tinned copper

Insulation: Silicone Rubber

Insulation: Silicone Rubber

Normal Colors(Can be customize any colors):

2C: white, black, red, brown, yellow, blue, green, yellow/green

3C: black, brown, blue, yellow/green

4C: black, brown, blue, yellow/green(customized)



Product dimensions:

ConductorInsulationDiameter
(mm)
Max.cond
resistance
(Ω/km)
Unit Length
(m)
Section
(mm²)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Fiberglass
Thickness
(mm)
2*0.7524/0.201.130.60 0.80 5.7-7.426.7100
2*1.0032/0.201.31 0.90 6.1-8.020
2*1.5030/0.2541.60 0.80 1.00 7.6-9.613.7
2*2.5050/0.2542.08 0.90 1.10 9.0-11.67.16
3*0.7524/0.201.130.60 0.80 6.2-8.126.7
3*1.0032/0.201.31 0.90 6.5-8.520
3*1.5030/0.2541.60 0.80 1.00 8.0-10.413.7
3*2.5050/0.2542.08 0.90 1.10 9.6-12.47.16
4*0.7524/0.201.130.60 0.80 6.8-8.826.7
4*1.0032/0.201.31 0.90 7.1-9.320
4*1.5030/0.2541.60 0.80 1.10 9.0-11.613.7
4*2.5050/0.2542.08 0.90 1.20 10.7-13.87.16





Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
