Vhs Series Vertical Hollow-Shaft Asynchronous Motor for Deep Well Pump

Name: Vhs Series Vertical Hollow-Shaft Asynchronous Motor for Deep Well Pump
Brand: all-electronics-online.com
SKU: 690653621
Availability: InStock
Rating: 4.4 (121 reviews)

Price:	US $ 200-25000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Brand:	Wangyang
Species:	Ylb Series Three-Phase
Number Of Poles:	2,4

Product Description

Features and Applications
Series VHS (B) motors are vertical hollow--shaft three--phase squirrel cage induction motors specially for driving vertical deep-well turbine pumps.
The protection degree is weather--protected type 1 (drip--proof) and the rated voltage is 460V 60Hz.We can also provide with rated 230/460V on request. Adopting an internationally advanced structure of anti--reverse, the motors are exact and reliable for preventing the reversal. The motors are employed with the oil--immersed bearing lubricating construction, which makes the bearings running in a condition of satisfactory cooling and lubrication so as to ensure a longer operating duration of the bearings. The motors are characterized by high efficiency, large staring torque, low temperature rise, leakage free, quiet running, low vibration etc.
Through our innovative research and development. Series VHS(B) deep--well pump motors transcend the traditional mode of motor construction, that leads to a stable and increased efficiency of the motors.
As a domestically initiative product, the motors reach the international advanced level of the latest NEMA Standard. After being fitted with long--shaft typed pumps, the motors are widely used in pumping underground water in mine, city, farm, factory and so froth.

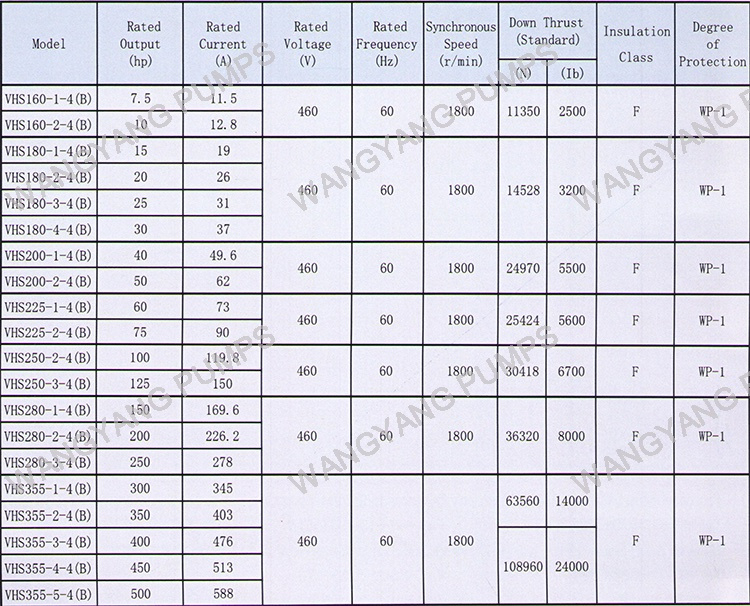

Rating and Performance

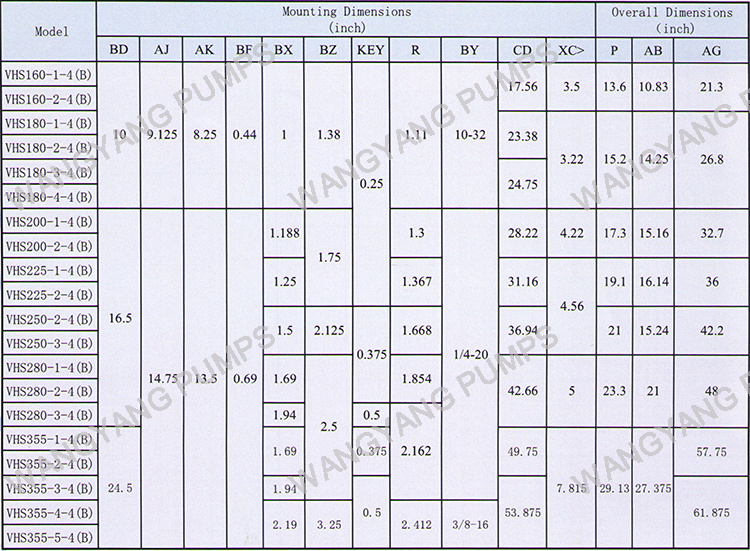

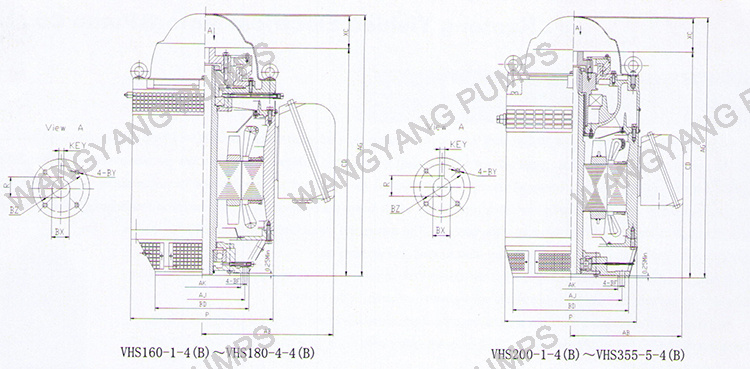

Mounting and Overall Dimensions:

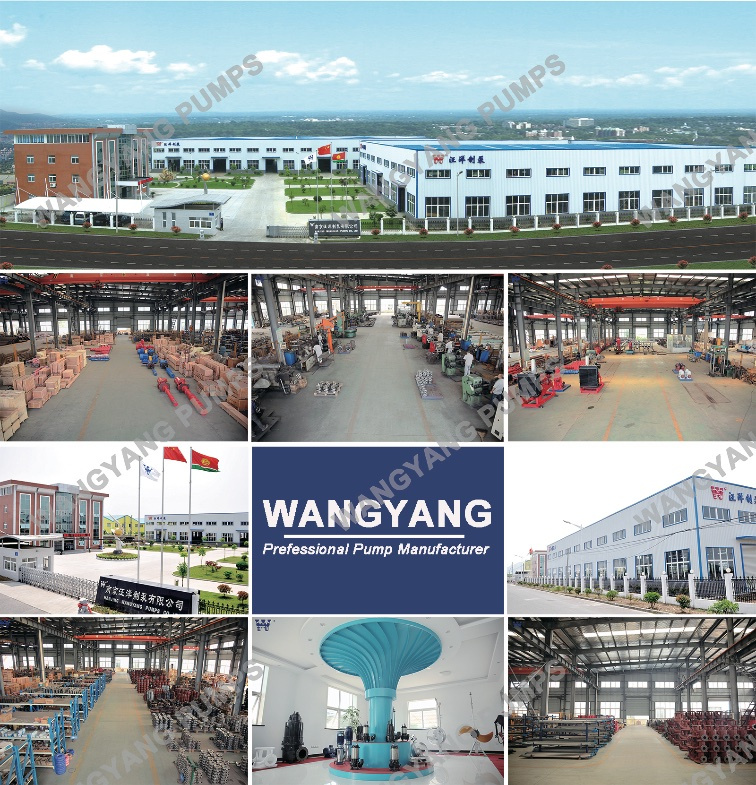

Nanjing Wangyang Pumps Co., Ltd is the most professional manufacturer since 1998 of centrifugal pump (single stage double suction & single stage end suction), vertical turbine pump (including the pump motor), submersible pump, sewage pump, fire pump (vertical turbine fire pump, single stage double suction fire pump, & diesel engine fire pump), and submersible mixer & propeller. We are always strictly following ISO9001 quality management system and have been certified by international quality certification since 1990s.

Our company is equipped with advanced facilities and completed casting, mechanical processing as well as assembly line. The pump test center is built by adopting national level b accuracy standard which can measure various types of pumps with the flow of 12000m³ /h and the head less than 350m. Our independent research and development results include pump metal mold manufacturing process, big pump manufacturing process and other patent technique, which made it occupy leading position in domestic counterparts.

We constantly regard "pursue subsistence on quality, seek market on integrity, develop with service, management for efficiency". Reliable quality, reasonable price, good reputation as well as considerate service make our company be highly praised by customers from home and abroad. We sincerely welcome domestic and international friends and counterparts to come here!
