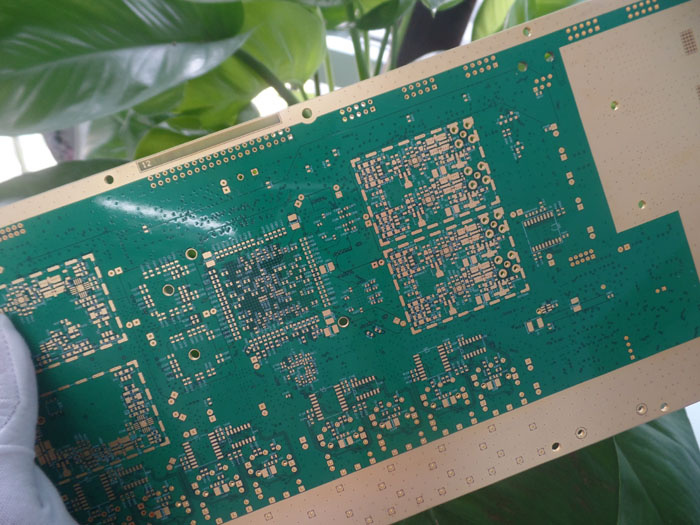

Via Caps (Solder Mask) PCB RO4003c 32mil (0.813mm) HASL Pb Free
| Price: |
US $ 2.63/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-469.1757-V1.1 |
| Final Foil External: |
1oz |
| Final Height Of PCB: |
2.4mm ±10% |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Contour/Cutting: |
Routing |
| Minimum Trace And Space: |
4.5mil/4.5mil |
| Minimum / Maximum Holes: |
0.36/2.5mm |
| Test: |
100% Electrical Test Prior Shipment |
| Number Of Different Holes: |
13 |
| Outline Dimension: |
0.0059" (0.15mm) |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Brand: |
Bicheng |
Product Description
Company Profile
Bicheng Enterprise Limited mainly specializes in high frequency and microwave printed circuit boards. We have rich experiences on the high frequency PCB in the application of power divider, coupler, combiner, power amplifier, trunk amplifier, base station and 4G antenna etc. The dielectric constant ranges from 2.2-10.3 etc. We keep inventory at any time for RO4350B, RO4003C, F4B etc. and can provide quick sample service in time.
We're capable of supplying high frequency PCBs up to 32 layers inclusive of HDI technology, blind and buried via, hybrid with FR-4 substrate etc.
PCB Board
Aluminum PCB
Microwave PCB
Flexible PCB
Specifications of Laminates FR-4When ordering a copper clad laminate board, the FR-4 thickness and the copper foil thickness must be specified separately.
FR-4 thickness is specified in thou or inches, and common thicknesses range from 10 thou (0.010 in, 254 µm) to 3 inches (76 mm).
Copper foil thickness is specified in units of ounces per square foot (oz/ft2), commonly referred to simply as ounce. Common thicknesses are 1 oz/ft2 (300 g/m2), 2 oz/ft2 (600 g/m2), and 3 oz/ft2 (900 g/m2). These work out to thicknesses of 34.1 µm (1.34 thou), 68.2 µm (2.68 thou), and 102.3 µm (4.02 thou), respectively. Some PCB manufacturers refer to 1 oz/ft2 copper foil as having a thickness of 35 µm (may also be referred to as 35 μ, 35 micron, or 35 mic).
1/0 - denotes 1 oz/ft2 copper one side, with no copper on the other side.
1/1 - denotes 1 oz/ft2 copper on both sides.
H/0 or H/H - denotes 0.5 oz/ft2 copper on one or both sides, respectively.
2/0 or 2/2 - denotes 2 oz/ft2 copper on one or both sides, respectively.
Due to the development needs of electronic product installation technology and PCB technology, the high Tg (Glass temperature) FR-4 products was born.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products

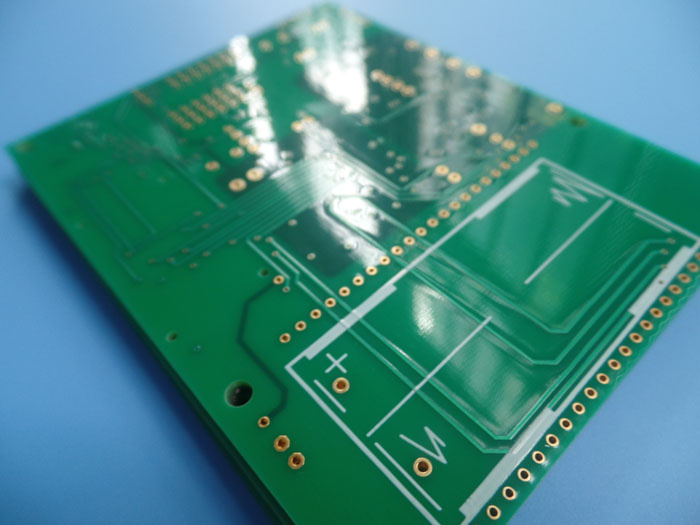

Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)

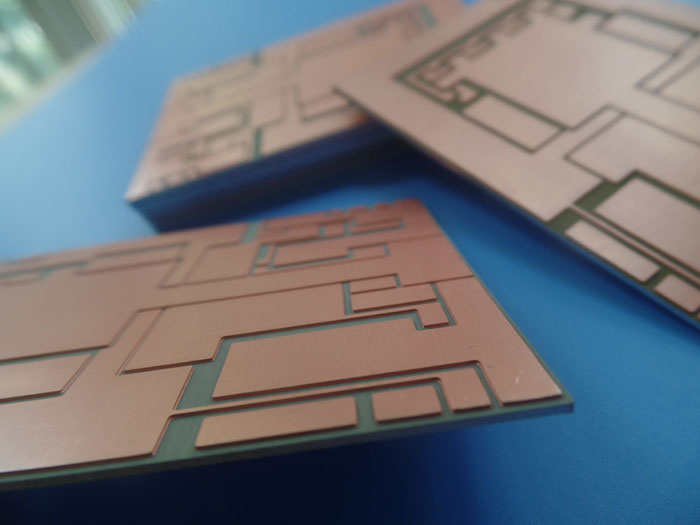

High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

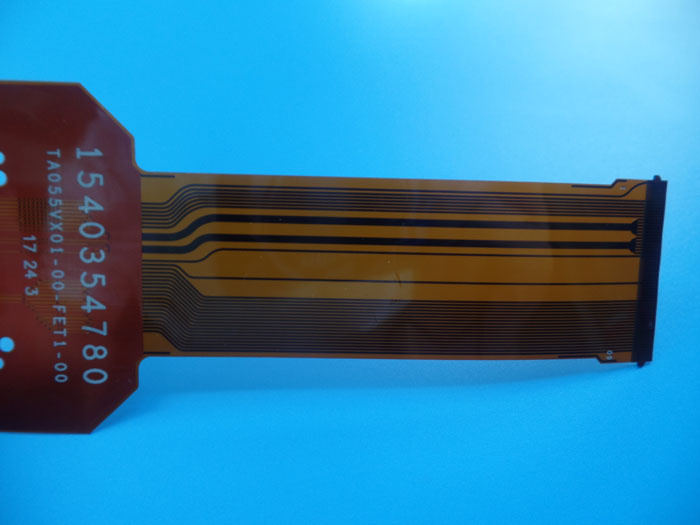

Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
