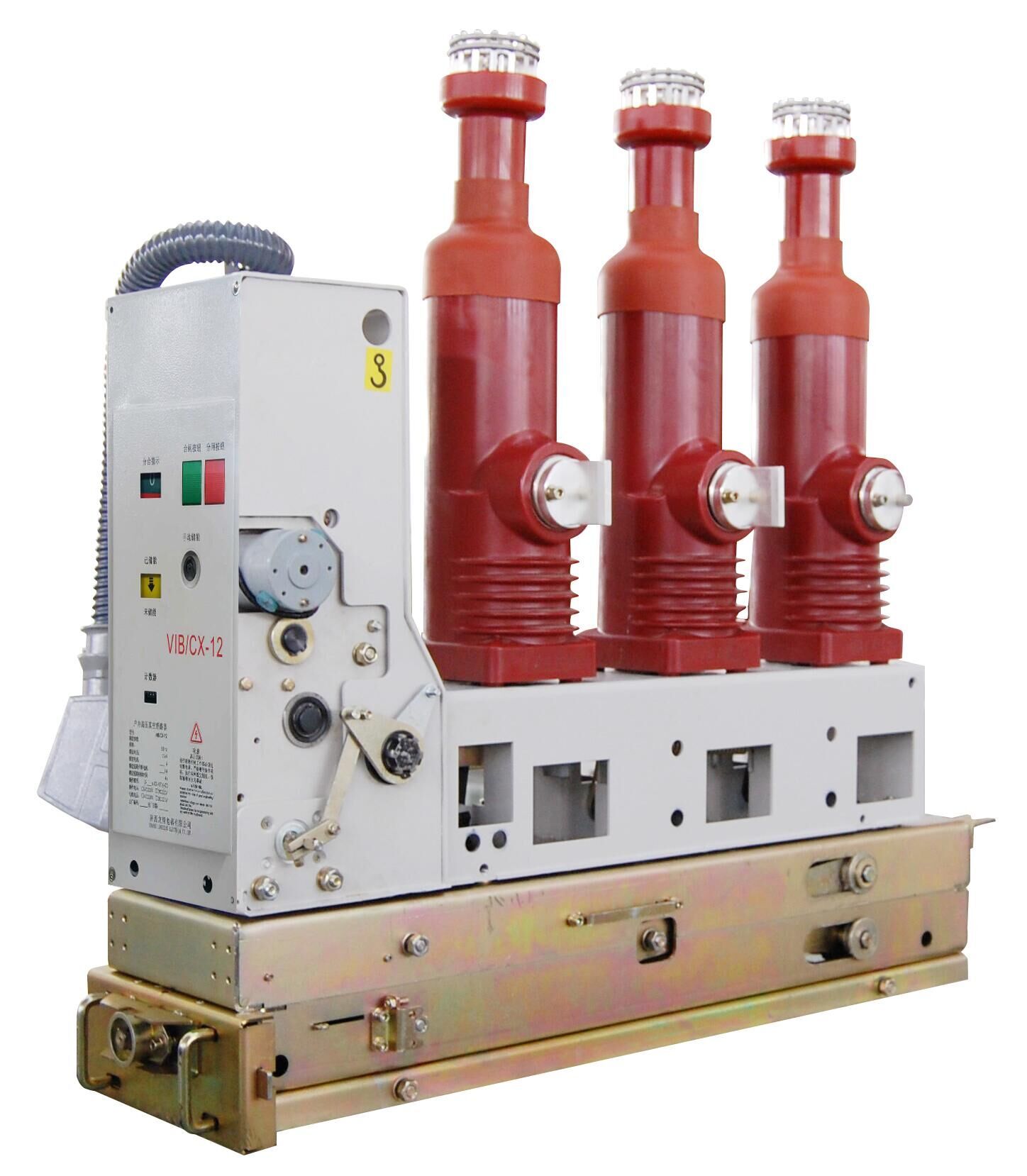

Vib/Cx-12 High Voltage Vacuum Circuit Breaker

Name: Vib/Cx-12 High Voltage Vacuum Circuit Breaker
Brand: all-electronics-online.com
SKU: 819999415
Availability: InStock
Rating: 4.5 (32 reviews)

Price:	US $ 2000-3000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	VIB/CX-12
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	ACB
Poles Number:	3
Certification:	CCC

Product Description

VIB/CX-12/630-25( Spanish)

Principales parámetros técnicos del Modelo VIB/CX-12/630-25 Disyuntor de vacío

No.	Nombre	Unidad	Datos
1	Voltaje nominal	kV	12
2	1 min Voltaje nominal sportado 1 min		42
3	Voltaje nominal de relámpago soportado		75
4	Frecuencia nominal	Hz	60
5	Corriente nominal	A	630
6	Corriente de corte de cortocircuito nominal Corriente resistente de corta duración admisible nominal	kA	25
7	Corriente resistente de pico admisible nominal Corriente de cortocircuito nominal	kA	63
8	Orden de operación nominal		O-0.3s-CO-180s-CO
9	Distancia abierta entre contactos	mm	9 ± 1
10	Recorrido de contacto	mm	3.5± 0.5
11	Tiempo del muelle de cierre de contactos	ms	≤ 2
12	Asincronismo de apertura trifásica		≤ 2
13	Tiempo de apertura		20~50
14	Tiempo de cierre		30~70
15	Velocidad media de apertura	m/s	0.9~1.3
16	Velocidad media de cierre	m/s	0.4~0.8
17	Voltaje de Funcionamiento	V	DC120
18	Dirección de salida		lado derecho
19	Motor de Carga		DC120V,90W

Company Introduction

General

Shaanxi Longxiang Electrical Co., Ltd. is a specialized manufacturer of making vacuum circuit breaker covering the voltage range of 12kV~40.5kV, which is located in Gaoxin 19th Road, East Development Zone, Baoji city, Shaanxi province. It occupancies total area of 18800 square meters including building area of 12800 square meters. The annual production capacity of vacuum circuit breaker is 16000 sets.

Professional management team and extensive market supply

Shaanxi Longxiang Electrical Co., Ltd is in posseeion of professional management team, main of them were from middle of high level management of large-scale enterprises in this industry, with more than 20 years working experience accumulation, professional knowledge and managerial experience, we focus on technology innovation based on market-oriented concept. The products are widely used in national power, petrochemical, smelting, aviation industry etc. And also exporting to Italy, Russia, Iran, India and other international markets. We also have established long-term strategic cooperation relations with several specialized manufactures of power transmission and distribution in the world.

Reliable technique and continuous improvement of quality control

Having professional R&D team to supply technical support, and cooperating with related research institutes, all these guarantee our product in pioneer level on its technique. Besides, our advanced production line can control the quality of any procedures, and all products will be inspected strictly before delivery.
