Vib/Cx-12 Vacuum Circuit Breaker with Lateral Operating Mechanism

Name: Vib/Cx-12 Vacuum Circuit Breaker with Lateral Operating Mechanism
Brand: all-electronics-online.com
SKU: 801983785
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	US $ 2200-3000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	VIB/CX-12
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

VIB/C-12
Indoor high voltage VCB
1.Summary
VIB/C TYPE Vacuum circuit breaker operating Mechanism ,based on the spring energy storage with a manual storage and electric energy storage in two ways, its performance meet demands GB1984-89 AC high voltage circuit breakers,JB3855-96 General technical conditions of 10KV indoor high voltage vacuum circuit breaker ,the relevant provisions of the international Electrotechnical Commission IEC56 standards and technical conditions of the product.

2.Technical parameters : After Adjustment of assemble VCB
3.1 Mechanical parameters with data table

Table 1

Item	Name	Unit	Value
1	Clearance between open contacts	mm	9±1
2	Overtravel		3.5±0.5
3	Center distance between phase		210±1
4	Contact closing jump time	MS	≤3
5	open Close/ asynchronized of three phases		≤2
6	Opening time		20~50
7	Closing time		30~70
8	6mm Average opening speed After contact separate 6mm	M/S	1.1±0.2
9	Average closing speed the whole process		0.6±0.2
10	After Closing , contact pressure	N	25KA	31.5KA
			2900±200	3100±200

Company Introduction

General

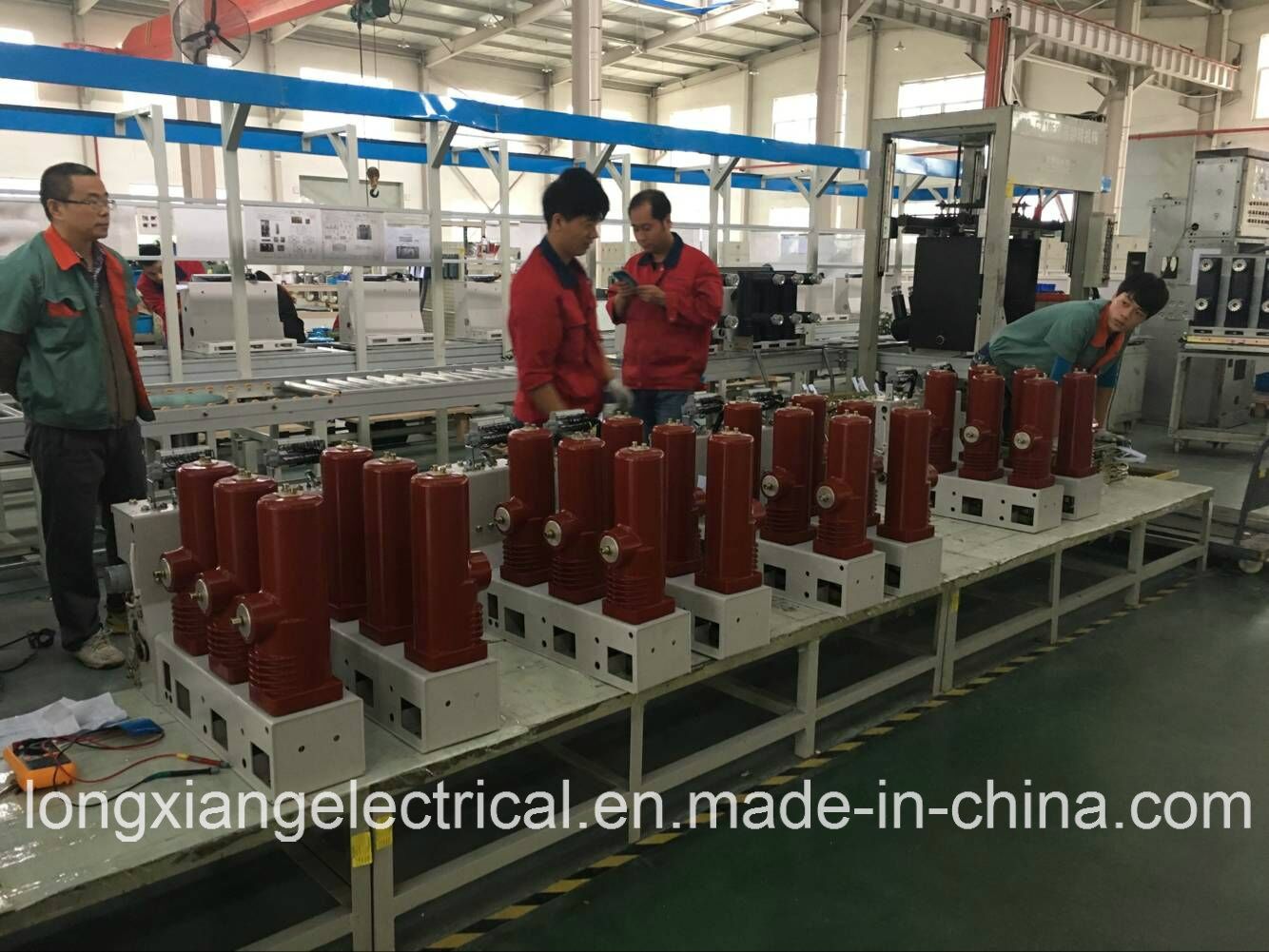

Shaanxi Longxiang Electrical Co., Ltd. is a specialized manufacturer of making vacuum circuit breaker covering the voltage range of 12kV~40.5kV, which is located in Gaoxin 19th Road, East Development Zone, Baoji city, Shaanxi province. It occupancies total area of 18800 square meters including building area of 12800 square meters. The annual production capacity of vacuum circuit breaker is 16000 sets.

Professional management team and extensive market supply

Shaanxi Longxiang Electrical Co., Ltd is in posseeion of professional management team, main of them were from middle of high level management of large-scale enterprises in this industry, with more than 20 years working experience accumulation, professional knowledge and managerial experience, we focus on technology innovation based on market-oriented concept. The products are widely used in national power, petrochemical, smelting, aviation industry etc. And also exporting to Italy, Russia, Iran, India and other international markets. We also have established long-term strategic cooperation relations with several specialized manufactures of power transmission and distribution in the world.

Reliable technique and continuous improvement of quality control

Having professional R&D team to supply technical support, and cooperating with related research institutes, all these guarantee our product in pioneer level on its technique. Besides, our advanced production line can control the quality of any procedures, and all products will be inspected strictly before delivery.
