Vib1/R 12kv High Voltage Vacuum Circuit Breaker

Name: Vib1/R 12kv High Voltage Vacuum Circuit Breaker
Brand: all-electronics-online.com
SKU: 803969635
Availability: InStock
Rating: 4.6 (85 reviews)

Price:	US $ 2000-2500/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

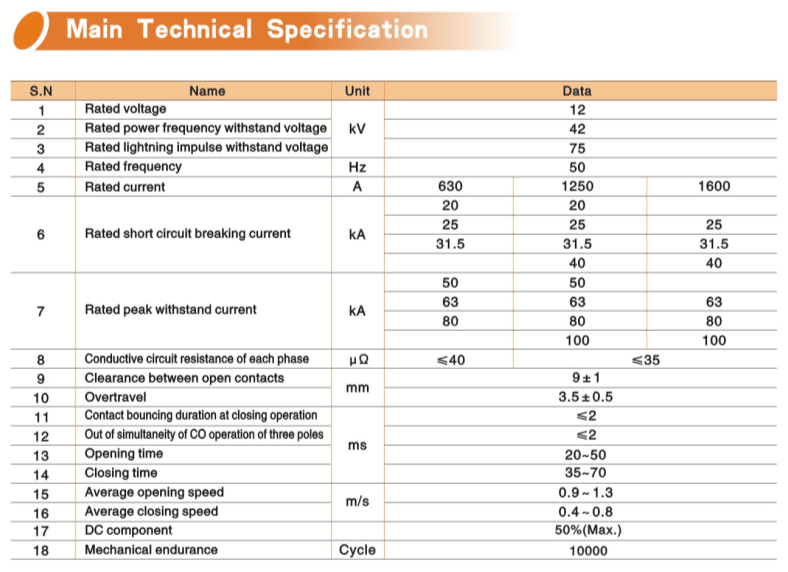

Prod Model:	VIB1/R-12
Rated Voltage:	12kv
Rated Current:	630/1250/1600A
Rated Frequency:	50Hz
Operating Mechanism:	Lateral
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	ACB
Poles Number:	3
Certification:	CCC

Product Description

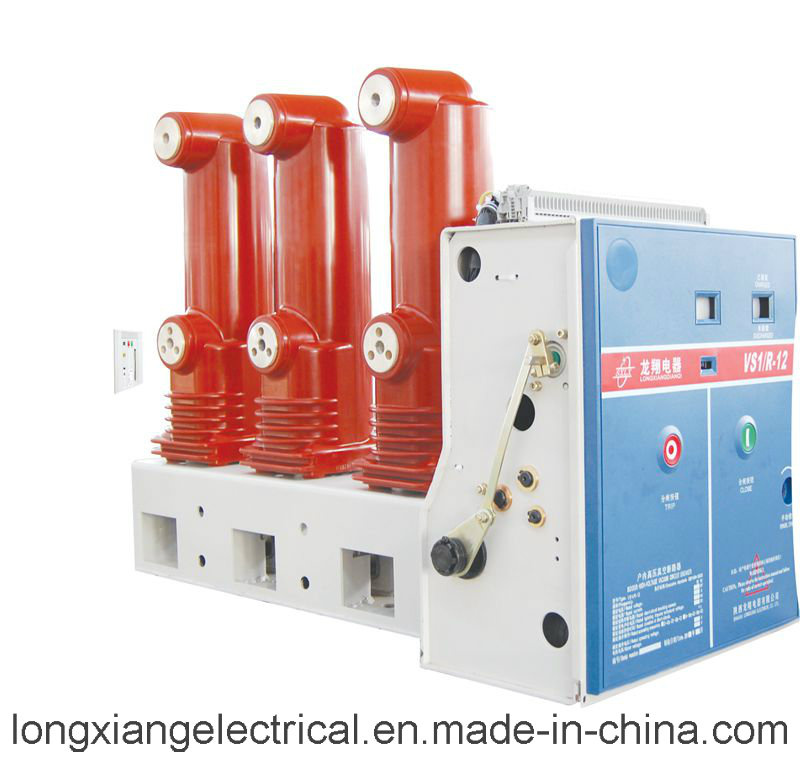

VIB1/R-12
Series of Indoor High Voltage Vacuum Circuit Breaker With
Lateral Operating Mechanism

General Description
VIB1/R-12 series of Indorr High Voltage Circuit Breaker With Lateral Operating Mechanism used spring to storage energy.The operating mechanism can be operated by two ways:by manual and electromotive operation.The characteristics is accordance with GB1984-2003 High voltage AC Circuit breaker,JB3855-1996 3.6-4.5kV Indoor AC High Voltage Circuit Breaker and IEC standard 62271-100:2001 High Voltage AC Circuit Breaker.

Applying ambient conditions
1.Ambient temperature:-15ºC~+40ºC.
2.Ambient humidity:the average humidity of a day should be no more than 95%;the average humidity of a month should be no more than 90%.
3.Saturated vapour pressure:the average pressure of a day should be no more than 2.2kPa;the average pressure of a month should be no more than 1.8kPa.
4.The height above sea level:1000m
5.Earthquake intensity:not exceed 8 degrees.
6.It should be installed in the places without fire,explosion,serious filth,chemical erosion and violent vibration.

Following information is required for order
VCB Full type,main technical specification,distance between phase and quantily.
Type and specification of service voltage.
Name and quantity of spare parts.

Company Introduction

General

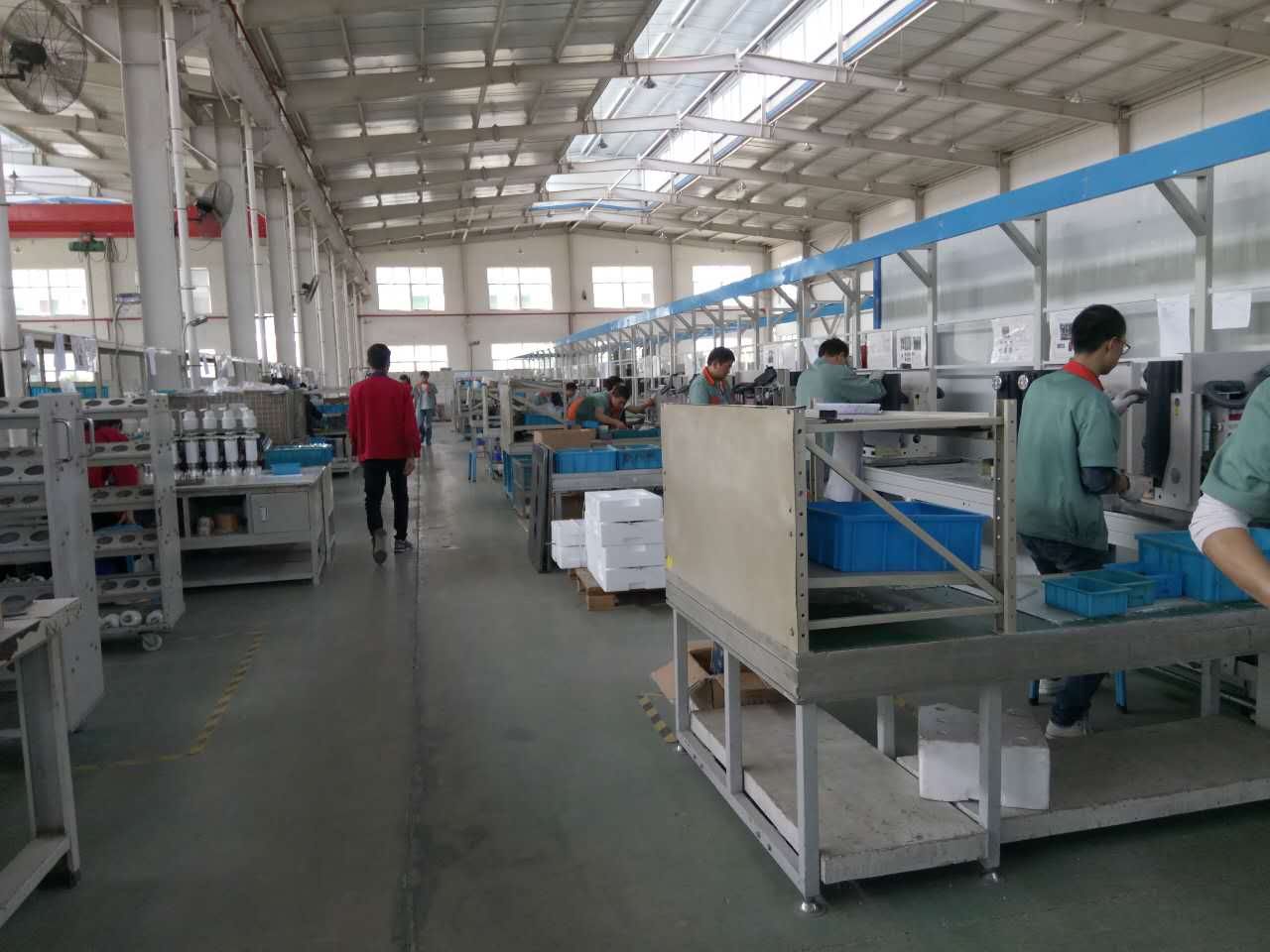

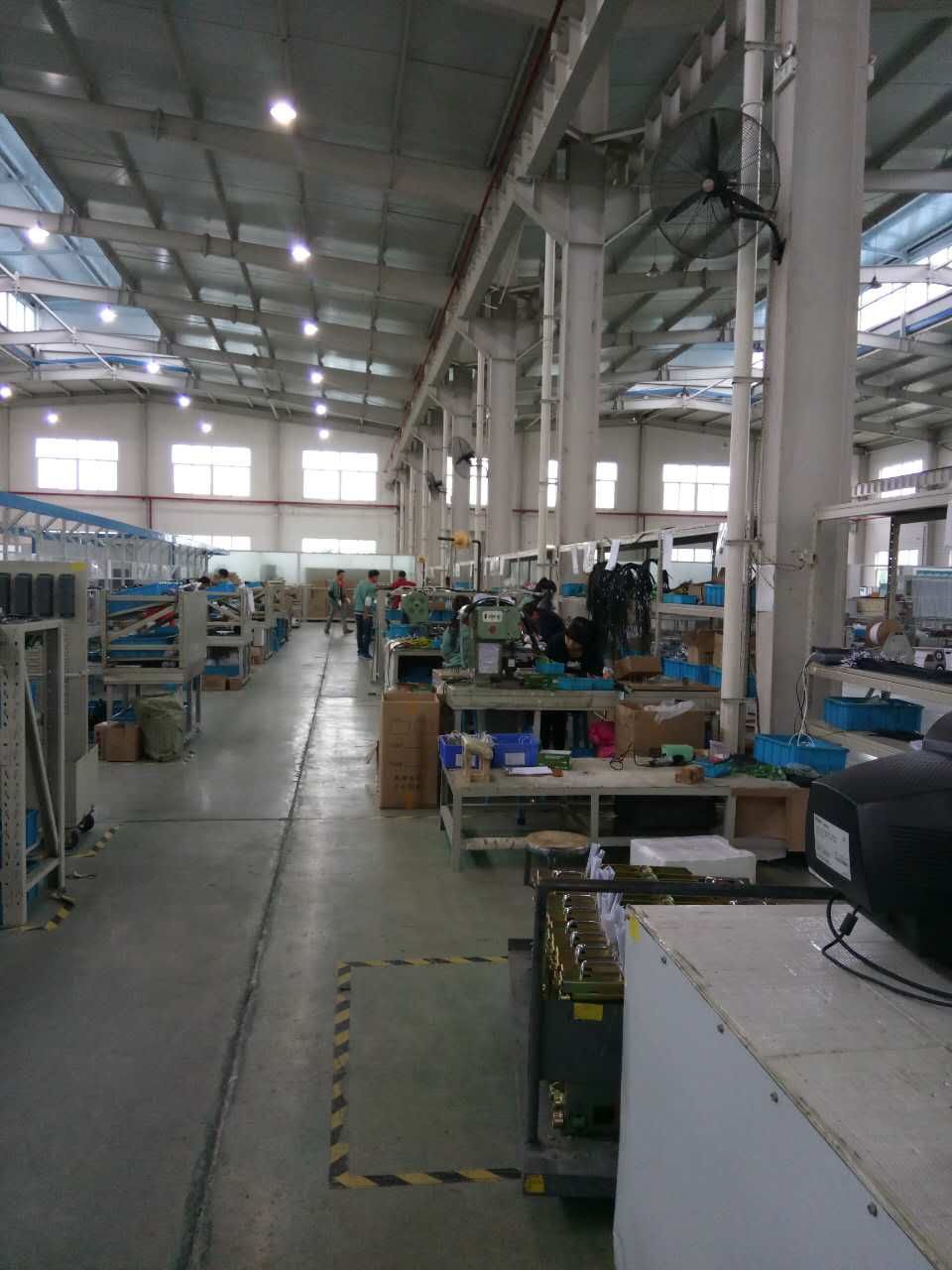

Shaanxi Longxiang Electrical Co., Ltd. is a specialized manufacturer of making vacuum circuit breaker covering the voltage range of 12kV~40.5kV, which is located in Gaoxin 19th Road, East Development Zone, Baoji city, Shaanxi province. It occupancies total area of 18800 square meters including building area of 12800 square meters. The annual production capacity of vacuum circuit breaker is 16000 sets.

Professional management team and extensive market supply

Shaanxi Longxiang Electrical Co., Ltd is in posseeion of professional management team, main of them were from middle of high level management of large-scale enterprises in this industry, with more than 20 years working experience accumulation, professional knowledge and managerial experience, we focus on technology innovation based on market-oriented concept. The products are widely used in national power, petrochemical, smelting, aviation industry etc. And also exporting to Italy, Russia, Iran, India and other international markets. We also have established long-term strategic cooperation relations with several specialized manufactures of power transmission and distribution in the world.

Reliable technique and continuous improvement of quality control

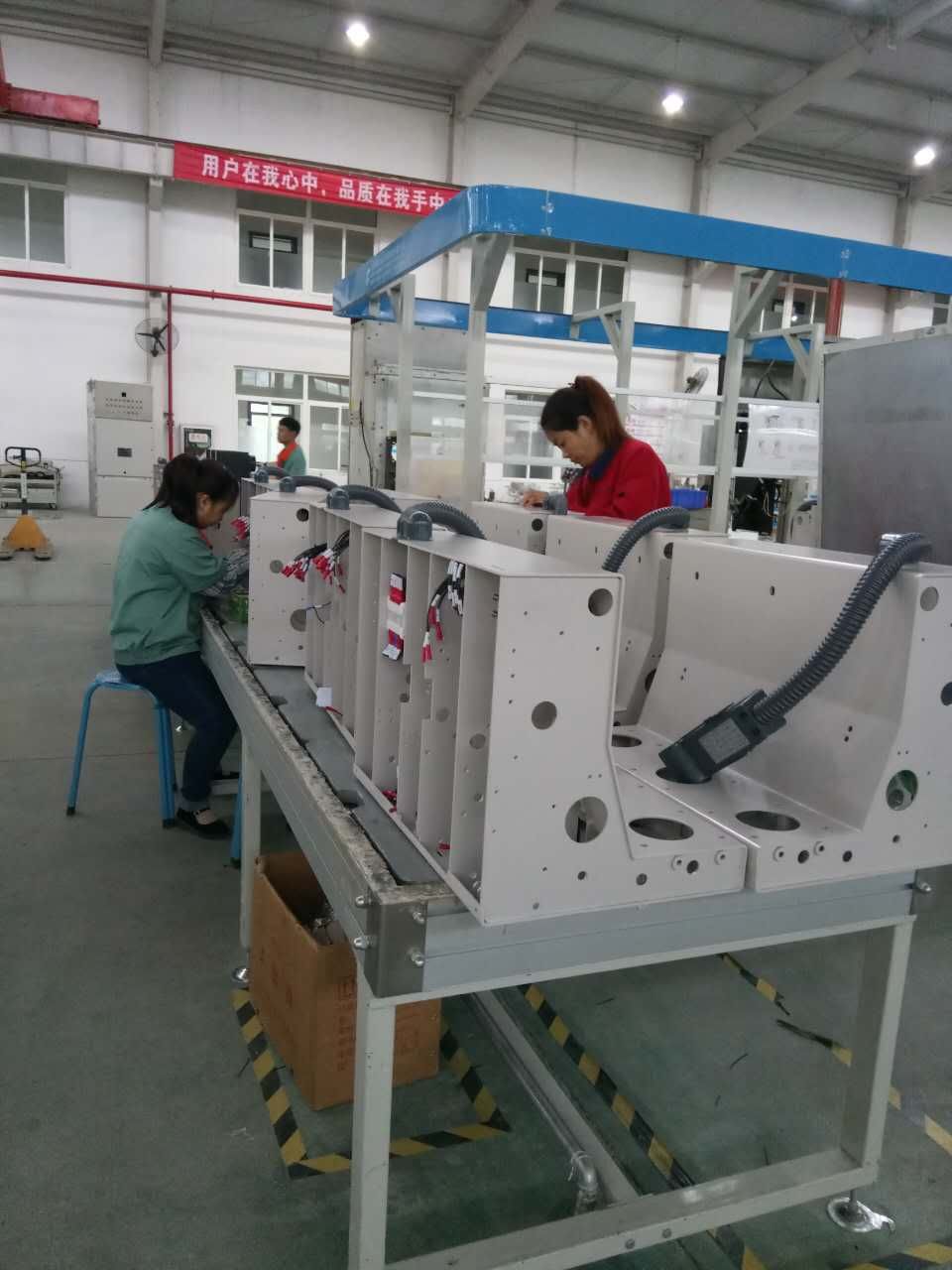

Having professional R&D team to supply technical support, and cooperating with related research institutes, all these guarantee our product in pioneer level on its technique. Besides, our advanced production line can control the quality of any procedures, and all products will be inspected strictly before delivery.
