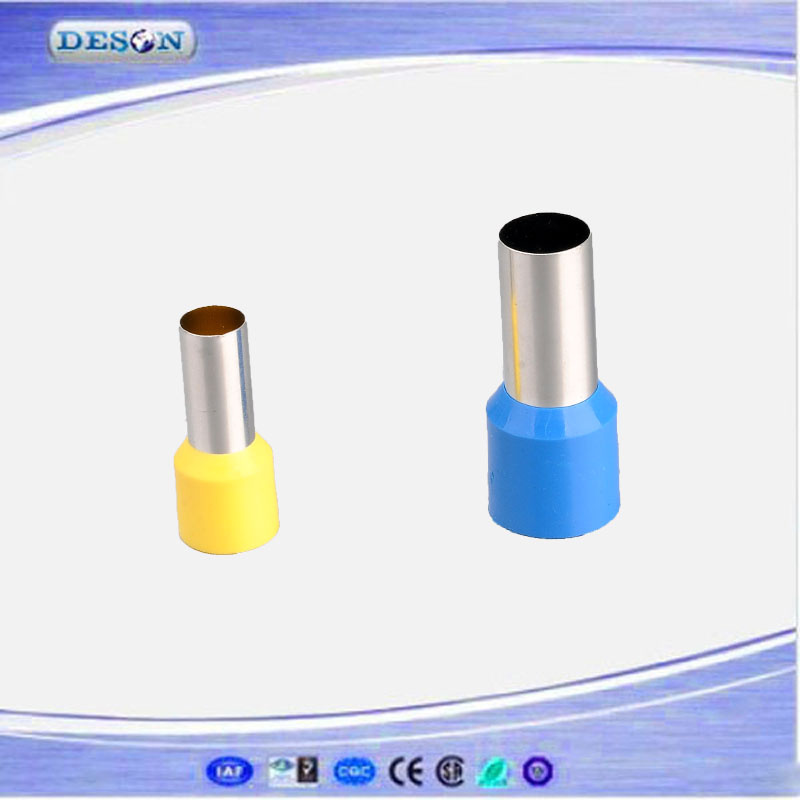

Vinyl Insulated Cord End Terminal

Name: Vinyl Insulated Cord End Terminal
Brand: all-electronics-online.com
SKU: 791569465
Availability: InStock
Rating: 4.3 (48 reviews)

Price:	US $ 2/Bag
Min Order:	1/Bag
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	E0506
Insulated Material:	PVC
Terminal Material:	Copper
Max Electrical Rating:	600V
Temperature:	75 Degree
Material:	Copper
Application:	Conduct Electricity
Type:	Cord End Terminal
Shape:	Cord End Terminal
Character:	Cord End Terminal
Interface Type:	Cord End Terminal
Brand:	Deson

Product Description

Vinyl Insulated Cord End Terminals

Material	Copper
Plating	Tin
Insulation	Non
Color
Working Temp	-40 to +105°C
Cable Range	A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 14-12(2.5-4mm²), 12-10(4-6mm²)
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Supply Ability	2 x 20 feet containers per week
Packaging Details	A.Common Packing:100pcs + polybag + label + inner box+ export carton
Packaging Details	B.Customized Packing:OEM Label,Inner Box,Blister,etc
HS Code	8536900000
Origin Country	Zhejiang, China
Test Report	CE ROHS

ITEM	DIMENSION
	F	L	W	H	D	C
	F	L	W	H	D	C
E0506	6	12	2.6	6	1.3	1
E0508	8	14
E0510	10	16
E0512	12	18
E7506	6	12.3	2.8	6.3	1.5	1.2
E7508	8	14.3	2.8	6.3
E7510	10	16.3	2.8	6.3
E7512	12	18.3	2.8	6.3
E1006	6	12.3	3	6.3	1.7	1.4
E1008	8	14.3	3	6.3
E1010	10	16.3	3	6.3
E1012	12	18.3	3	6.3
E1508	8	14.3	3.5	6.3	2	1.7
E1510	10	16.3
E1512	12	18.3
E1518	18	24.3
E2508	8	15.4	4	7.4	2.6	2.3
E2510	10	17.4
E2512	12	18.4
E4009	9	16.4	4.5	7.4	3.2	2.8
E6012	12	20.5	6	8.5	3.9	3.5
E10-12	12	22	7.5	8.8	4.9	4.5
E16-12	12	22	8.7	10	6.2	5.8
E25-16	16	28	11	12	7.9	7.5
E35-16	16	30	12.5	14	8.7	8.3
E50-20	20	36	16	15	10.9	10.3
