Non-Insulated Cord End Terminal

Name: Non-Insulated Cord End Terminal
Brand: all-electronics-online.com
SKU: 791570115
Availability: InStock
Rating: 4.9 (49 reviews)

Price:	US $ 2/Bag
Min Order:	1/Bag
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EN
Insulated Material:	PVC
Terminal Material:	Copper
Max Electrical Rating:	600V
Temperature:	75 Degree
Material:	Copper
Application:	Conduct Electricity
Type:	Cord End Terminal
Shape:	Cord End Terminal
Character:	Cord End Terminal
Interface Type:	Cord End Terminal
Brand:	Deson

Product Description

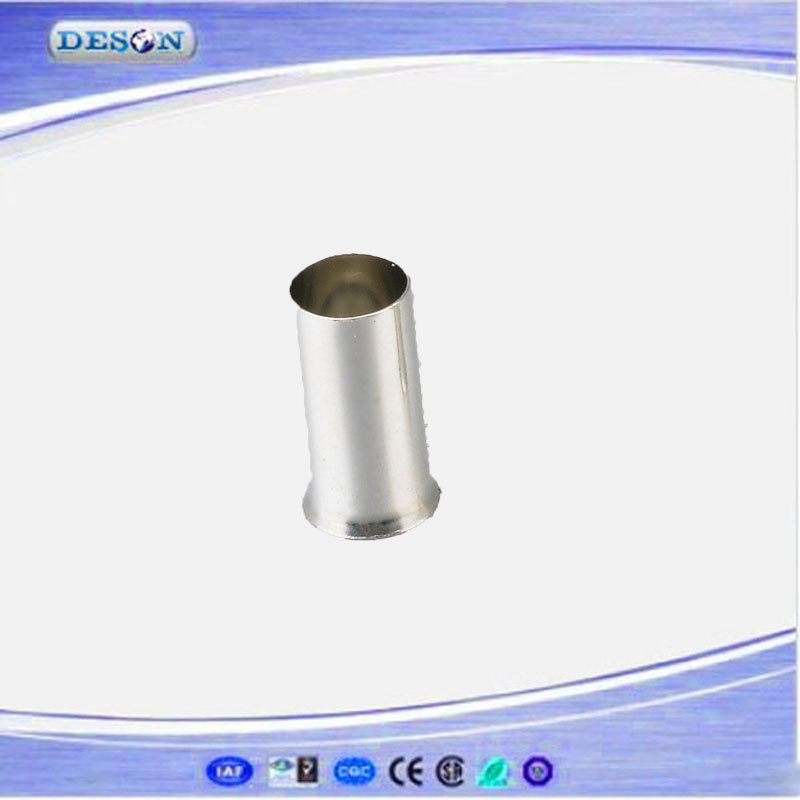

Non- Insulated Cord End Terminals

Material	Copper
Plating	Tin
Insulation	Non
Color
Working Temp	-40 to +105°C
Cable Range	A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 14-12(2.5-4mm²), 12-10(4-6mm²)
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Supply Ability	2 x 20 feet containers per week
Packaging Details	A.Common Packing:100pcs + polybag + label + inner box+ export carton
Packaging Details	B.Customized Packing:OEM Label,Inner Box,Blister,etc
HS Code	8536900000
Origin Country	Zhejiang, China
Test Report	CE ROHS

ITEM	Dimensive(mm)				Conductor cross-section
NO	L	DØ	CØ	WØ	A.W.G	Mm2
EN0506	6	1.3	1	1.7	#22	0.5
EN0508	8
EN0510	10
EN0512	12
EN7506	6	1.5	1.2	1.9	#20	0.75
EN7508	8
EN7510	10
EN7512	12
EN1006	6	1.7	1.4	2.2	#18	1
EN1008	8
EN1010	10
EN1012	12
EN1507	7	2	1.7	2.5	#16	1.5
EN1508	8
EN1510	10
EN1512	12
EN1518	18
EN2507	7	2.6	2.2	3.3	#14	2.5
EN2508	8
EN2510	10
EN2512	12
EN2518	18
EN4009	9	3.2	2.8	3.9	#12	4
EN4012	12
EN4018	18
EN6010	10	3.9	3.5	4.8	#10	6
EN6012	12
EN6015	15
EN6018	18
EN10-12	12	4.8	4.5	5.8	#7	10
EN10-15	15
EN10-18	18
EN16-12	12	6.2	5.8	7.2	#8	16
EN16-15	15
EN16-18	18
EN25-16	16	7.9	7.5	9.1	#4	25
EN25-22	22
EN35-16	16	8.7	8	10.2	#2	35
EN50-12	12
EN50-18	18		0.3
EN35-25	25
EN 50-20	20	10.9	10.3	12.4	#1	50
EN50-22	22
EN50-25	25
EN50-30	30
EN 70-22	22	15.8	14.3	13.5
EN70-25	25
EN70-32	32
EN95-25	25	17.3	15.6	14.8
