Voltage Regulator, Automatic Voltage Regulator, AC Voltage

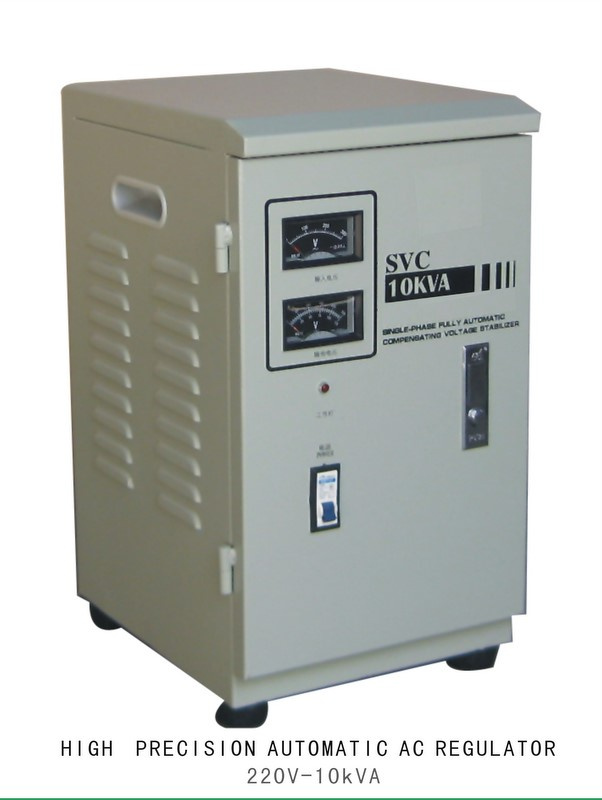

Name: Voltage Regulator, Automatic Voltage Regulator, AC Voltage
Brand: all-electronics-online.com
SKU: 665098625
Availability: InStock
Rating: 4.4 (47 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC10KVA, SVC15KVA, SVC20KVA, SVC30KVA, SVC40KVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Industrial Frequency
Brand:	Sanyu

Product Description

1. Voltage regulator, automatic voltage regulator, ac voltage----
SVC10KVA, SVC15KVA, SVC20KVA, SVC30KVA, SVC40KVA

2. CE, ISO9002, SGS, CCC certificates, etc.

3. Features:

This series of voltage regulators with self-voltage regulation or compensation Surge, has features of small size, light weight, continuously adjustable voltage, output voltage and high precision, wide range of voltage regulation, low loss, no waveform distortion, which is widely used for civilian appliance regulators, industrial equipments, medical devices.

It's the most cost-effective regulated power suply on the current market.

This series of regulated power supply has set up the over-voltage protection, the length of delay time and selective output, overcurrent protection functions.

It's leading among the similiar products.

Input voltage	160-250 Ultra-low voltage 130-250V
Output voltage	220±3% with 110V output
Phase	Single-phase
Frequency	50-60Hz
Adjustment time	Less than 0.5s Input voltage change 10%
Rated output current	0.5KVA	1KVA		2KVA	3KVA	5KVA	10KVA		15KVA	20KVA
	2A	4A		6A	8A	12A	20A		28A	40A
Ambient temperature	-5 degree to 40 degree
Temperature rise	Less than 60 degree
Relative humidity	Less than 90%
Waveform distortion	No additional distortion
Efficiency	More than 90%
Pressure	Meet part standards

Model specifications			Machine size mm					Weight kg
SVC Single-phase 500VA			190×190×140					5
1000VA			225×225×160					8
1500VA			225×225×160					9
2000VA			245×260×205					12
3000VA			225×285×260					15
5000VA			245×460×200					25
7000VA			280×320×580					40
10000VA			280×320×580					40
15000VA			335×400×640					45
20000VA			435×400×880					45
30000VA			510×330×910					90

Shanghai Sanyu Electronics Equipment Co., Ltd.Was founded in 2000, with parent company Japan Sanyu Corporation (Asia).We are a leading manufacturer of AC drives, automation products and inverter welding machines in Shanghai, China.

SY-8000, SY7000, SY8600 vector control inverter are our key patent products.We produce high quality and outstanding performance AC drives.We have developed full range AC drives to meet the most needs of customers.Sanyu drives have been widely used in many industries from low end market to high end market.

In China, there are hundreds of authorized distributors and technicians who are ready to serve our customers at any time.Currently, Sanyu drives have been exported to more than 30 countries.Depth of industry experience combined with innovative design talents in diverse technologies have ensured that Sanyu will play an important role in automation and drive market all over the world.We are becoming a world-renowned professional AC drives and inverter system supplier.
