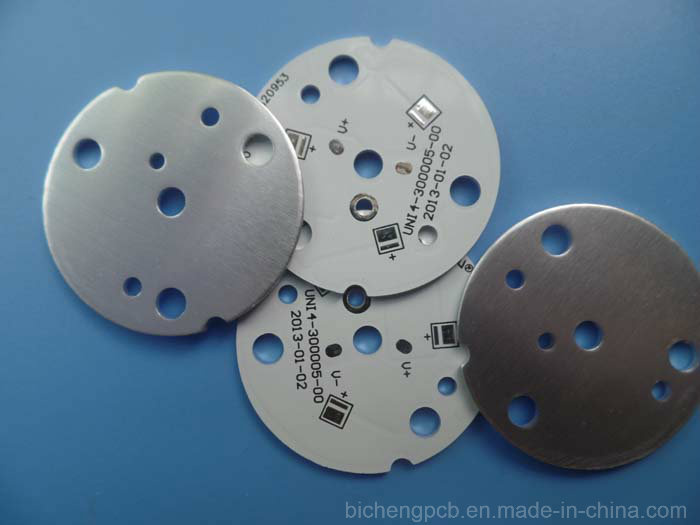

Volume Produciton PCB Board Ceramic Matt White Mask
| Price: |
US $ 1.43/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-581-V5.81 |
| Board Thick: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Out Layer Copper: |
35um (1 Oz) |
| Soldermask Color: |
Green, Lp-4G G-05, Nanya Supplied |
| Silkscreen Color: |
White, S-380W, Taiyo Supplied |
| Final Foil Internal: |
0.5 Oz |
| Minimum Trace And Space: |
6.7 Mil/5.9 Mil |
| Minimum / Maximum Holes: |
0.3/2.5mm |
| Via: |
Blind Via From to Inner Layer 1 |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Company ProfileFounded in Shenzhen China in 2003 Bicheng Enterprise Limited is a professional PCB export
enterprise. We have established a good relationship of cooperation with well-known enterprises
in the same industry. Our PCB products range from fiberglass PCB, high frequency PCB to metal
core PCB and ceramic PCB's.

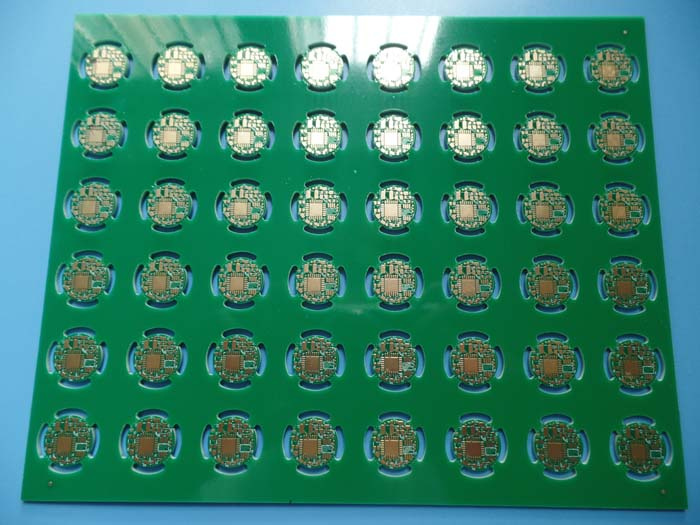

Printed Circuit Board

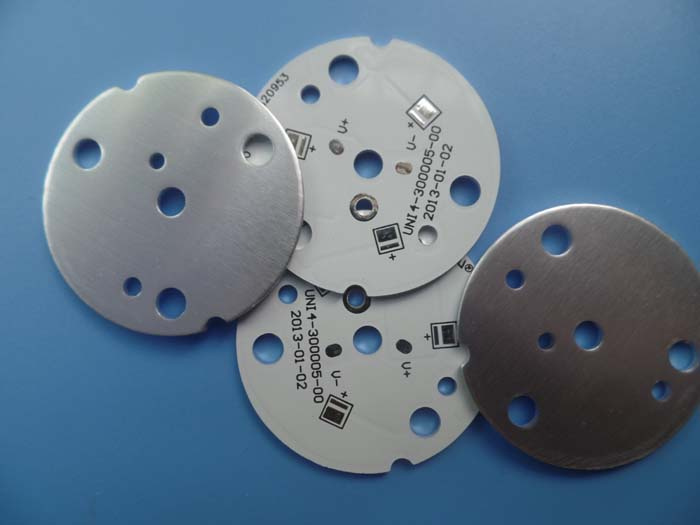

Aluminum PCB

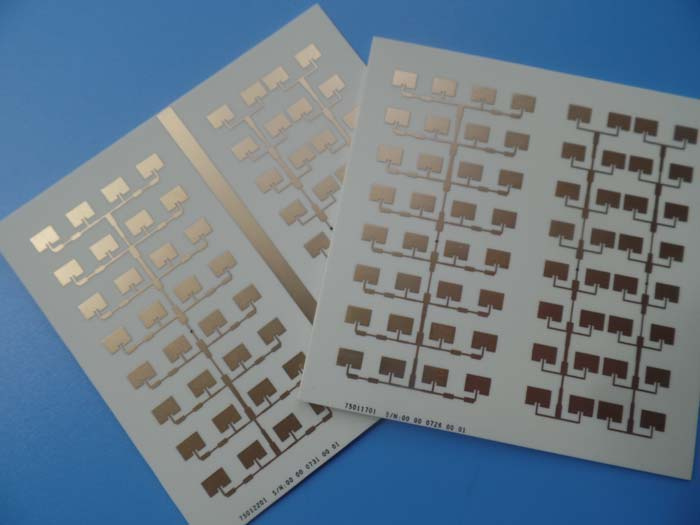

High Frequency PCB

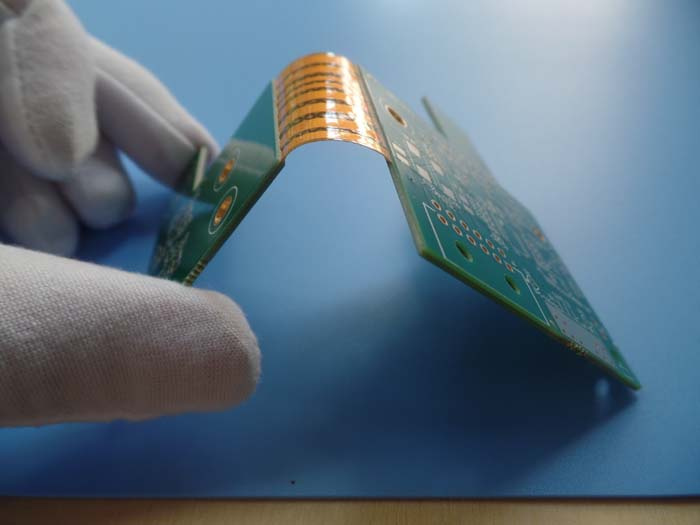

Flex PCB

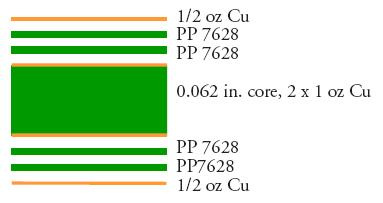

The components of multilayer PCB: PrepregA multilayer board consists of copper foils, thin rigid laminates and prepreg sheets.
Prepreg plays a role of bonding material used for bonding the individual thin laminates of the
multilayer boards. It consists of glass cloth impregnated with epoxy resin. Unlike rigid laminates,
the epoxy resin is only semi-cured. Epoxy resin is referred to as B-stage when semi-cured.
The prepreg sheets are not sticky. During lamination of the board, the epoxy resin is first changed
to a liquid state and later in the press cycle to the fully cured state. During the press cycle, the
cured epoxy resin in the thin, rigid laminates softens, but it does not become liquid.
Thicknesses of Prepreg sheets| Glass Fabric Style | Pressed Thickness | Resin Content |
| | mm | mil | % |
| 7628H(7630) | 0.213 | 8.4 | 50 |
| 7628(43%) | 0.195 | 7.6 | 43 |
| 7628(41%) | 0.185 | 7.3 | 41 |
| 2116HR | 0.135 | 5.3 | 57 |
| 2116 | 0.12 | 4.7 | 52 |
| 2113 | 0.1 | 4 | 56 |
| 1080 | 0.076 | 3 | 64 |
| 1060 | 0.05 | 2 | 71 |
The pressed thickness varies from one manufacturer to another. As long as the PCB designer
does not know the brand(s) of the glass fabrics used by the multilayer board manufacturer, it is
more or less impossible to specify a detailed build-up. Therefore, this should be left to the
manufacturer. When a board is required impedance control, the thickness of the dielectric material
between the individual layers become important and thickness and tolerance are usually specified
by designer.
The minimum thickness of the dielectric material (thin laminate or prepreg sheets) is 75 µm (3 mils)
and, in some cases, 100 µm (4 mils).
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
