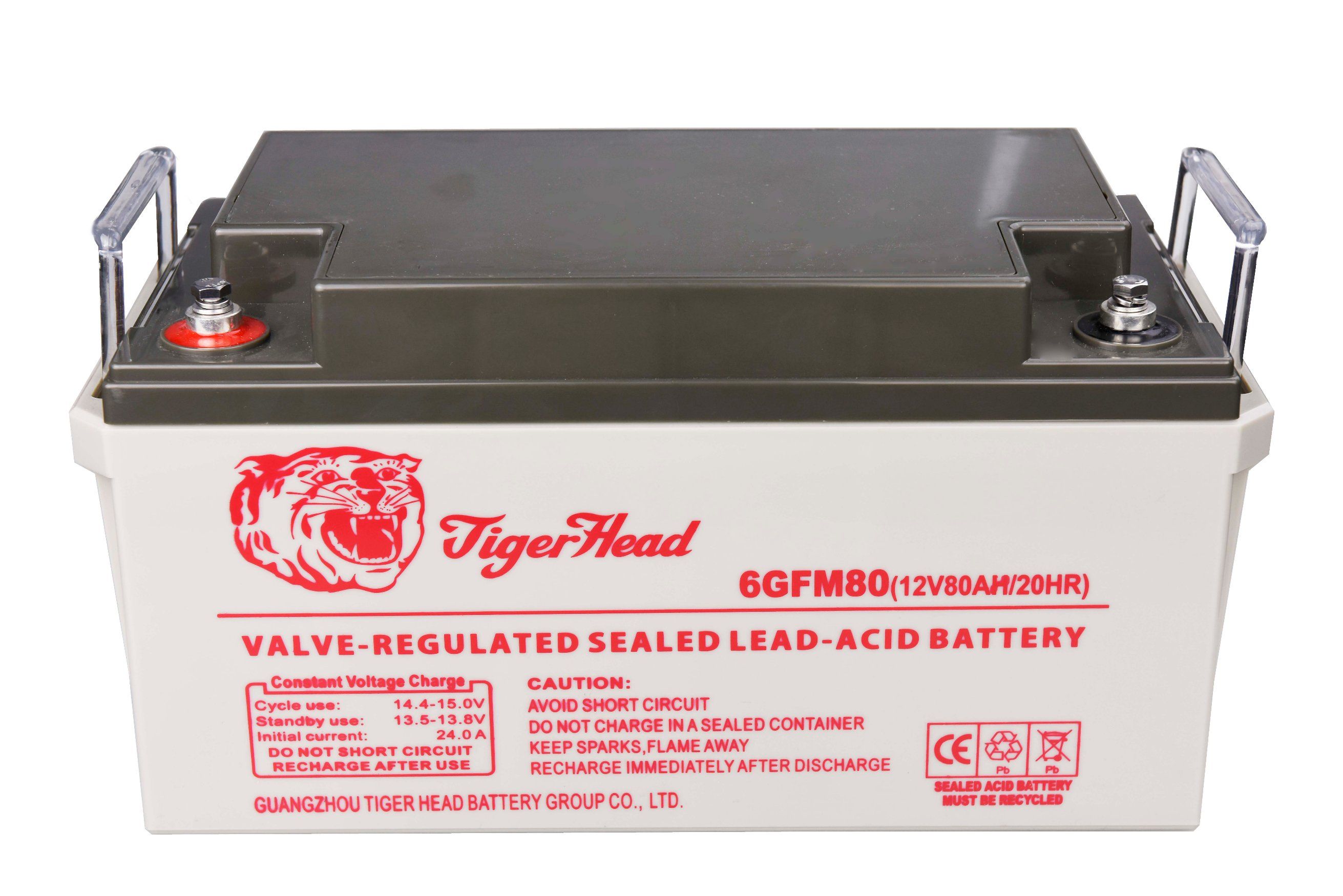

VRLA AGM Gel Battery for Solar System 12V 80ah
| Price: |
US $ 1/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
12V80AH |
| Certification: |
Ce, Son, Tbs, Unbs, Saso |
| Gross Weight: |
24kg |
| Warranty: |
2 Years |
| Delivery Time: |
30 Days |
| Product Life: |
18 Years |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Flat Battery |
| Rechargeable: |
Chargeable |
Product Description


Application fields
Our VRLA solar battery Sealed Battery / Maintenance Free Battery / Rechargeable Battery / Gel Battery can be widely use in alarm system, marine equipment, cable television, medical equipment, communication equipment, micro processor based office machines, control equipment, portable cine and video lights, computers, power tools, electronic cash registers, solar powered systems, electronic test equipment, telecommunications systems, electric powered bicycle and wheelchairs, television and video recorders, emergency lighting systerms, toys, etc.Operation and maintenance manualFor maintenance free battery, it's free maintenance in the operation. But we can only use it in proper operation to keep the long lifetime of the battery,(1) Battery InstallationBatteries should be installed possibly in a clean, cool, ventilated and dry place. The battery should be placed upright. Each terminal between the batteries is connected firmly.(2) The ambient temperatureAmbient temperature is important factor for the battery operation. When the ambient temperature is too high, Battery plate corrosion will be increased, while absorbing more moisture; When the ambient temperature is too low, the battery will not be full charged. All this will affect the battery life. Therefore we suggest the working ambient temperature is around 25 º C.(3) The charge and discharge currentBattery charge and discharge current usually uses the concept C, the actual value of C is related to the capacity of the battery. For example, a 100AH battery: 1C = 100A. Charging current is around0.1C; The charging current must not be bigger than 0.3C. Discharge current general requirements in0.05 ~ 3C range.(4) Charging voltageAfter the battery is full converted to float charging, the float voltage is around 13.0V. If the charging voltage is too high will cause the battery overcharge, otherwise the battery will not be full charged. Charging voltage is abnormal, it may be caused by the battery configuration error, or it may be caused bycontroller failure. Do not choose the controller with bad quality.(5) The depth of dischargeDepth of discharge of the battery life is alsoa important factor for lifetime of battery, the deeper the battery discharge, the fewer the number of cycles, so battery should avoided from deep discharge.(6) Regular maintenanceBattery should be regular checked in every period time after used, such as check its outlook, measuring the average voltage of each battery, etc.Data sheet| ITEMS | CAPACITY | WEIGHT | SIZE(MM) |
| 6FM4.5 | 12V4.5AH | 1.48 | 90*70*101*107 |
| 6FM7 | 12V7AH | 1.95 | 151*65*94*99 |
| 6FM7 | 12V7AH | 2.06 | 151*65*94*99 |
| 6FM7.5 | 12V7.5AH | 2.18 | 151*65*94*99 |
| 6FM9 | 12V9AH | 2.66 | 151*65*94*99 |
| 6FM12 | 12V12AH | 3.5 | 151*98*95*101 |
| 6FM18 | 12V18AH | 4.7 | 181*77*167*167 |
| 6FM24 | 12V24AH | 7.2 | 166*175*125*125 |
| 6FM26 | 12V26AH | 7.8 | 166*175*125*125 |
| 6FM28 | 12V28AH | 8.4 | 165*175*125*125 |
| 6FM33 | 12V33AH | 10.5 | 195*130*164*178 |
| 6FM40 | 12V40AH | 12.50 | 255*97*203*203 |
| 6FM40 | 12V40AH | 12.2 | 197*165*170*170 |
| 6FM40 | 12V40AH | 11.4 | 197*165*170*170 |
| 6GFM42 | 12V42AH | 13.2 | 197*165*170*170 |
| 6GFM60 | 12V60AH | 18.5 | 259*168*208*214 |
| 6GFM65 | 12V65AH | 19.2 | 348*167*178*178 |
| 6GFM80 | 12V80AH | 23.5 | 348*167*178*178 |
| 6GFM100 | 12V100AH | 27.8 | 330*173*212*220 |
| 6GFM100 | 12V100AH | 30.6 | 330*173*212*220 |
| 6GFM120 | 12V120AH | 34.00 | 408*177*225*225 |
| 6GFM120 | 12V120AH | 32.30 | 408*177*225*225 |
| 6GFM150 | 12V150AH | 41.50 | 483*170*239*239 |
| 6GFM150 | 12V150AH | 43.20 | 483*170*239*239 |
| 6GFM200 | 12V200AH | 53.6 | 530*209*214*220 |
| 6GFM200 | 12V200AH | 57.4 | 522*240*224 |
| 6GFM220 | 12V220AH | 59.8 | 522*240*224 |
Guangzhou Tiger Head Battery Group Co., Ltd. is situated in the Huangpu road, Tianhe District, Guangzhou, with its east neighboring to the Huangpu Port, its west to the Guangzhou East Train Station, the Exit to the Huanan Express Trunk Way, and its south facing the Pearl River. Thus it boasts of convenient transportation in both highways and waterways.
Guangzhou Tiger Head Battery Group Co., Ltd. is an export-oriented enterprise specializing in battery production and management, with the largest scale in Chinese battery industry. It realizes annual output of 2 billion pieces of dry batteries and earns over 308 million U. S. Dollars of foreign exchange per year, which makes it the leading battery enterprise in China.
The company' S main products are "555", "Tiger Head" and " TIHAD" brand all kinds of dry batteries, lead-acid storage batteries, Ni-MH batteries, polymer Li-ion batteries and some battery-related appliances.
The trademark "Tiger Head" of the company is the first "Chinese Well-known Trademark" in Guangzhou as well as in the country' S battery industry, and the trademark "555" the "Famous Trademark" in Guangzhou city as well as in Guangdong province. "555" brand R20S batteries have won National Excellent Quality Silver Award, while"555" brand LR6 alkaline batteries have won National Excellent Quality Gold Award. Moreover, "555" brand zinc-manganese alkaline batteries have been rewarded as "Chinese Top Brand Products" and "National Inspection Exemption Products".
Based on strengthening quality control and seeking development via technical progress, Tiger Head Battery Group Co., Ltd. Has been making persistent efforts to excel. As the first company using computer-controlled automatic discharging detection facility among the same business in China, the company has had a strict quality monitoring system in production. Thus for years running, the company has been evaluated as the "Advanced Enterprise of Quality and Profit" by the Ministry of Foreign Trade and Economic Cooperation, PRC, the State Bureau of Light Industry, and the Quality Control Association of Guangdong Province.
Since the year 1999, the company has been performing series of reforming with a capital outlay of RMB 400 million, introducing the most advanced production line of mercury free zinc-manganese alkaline battery, thus providing the consumers with environment friendly batteries of high performance. The company adopts in production the special explosion-proof structure, new material, new formula, new technique and the special sealing technology, all in the leading position in the world, which makes true the Mercury-free and Pollution-free in battery production fives years ahead of the national schedule. Recently, the company invested RMB 1.5 million independently developing the Real-time Monitoring Management System via IT new technology, which includes several parts of on-the-spot production management, operation instruction, and figures analysis, etc. This system, via visual image transformation and vivid industry control charts, can help monitoring persons to get accurate first-hand information about the production, even they are not on the production spot. Thus, it helps to improve management efficiency and reduce management cost. Today, a modernized Battery City has been set up in the new factory zone with the area of 170 thousand square meters.
