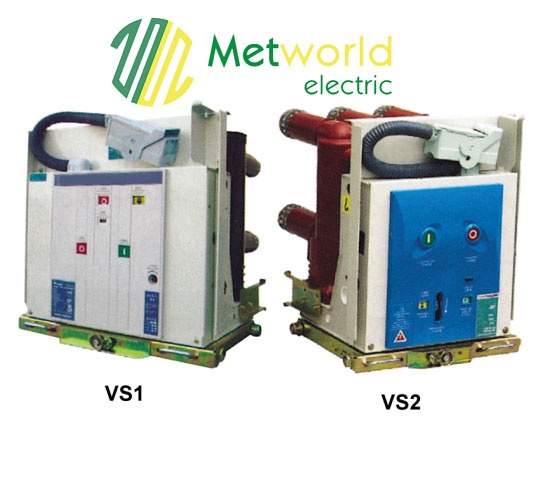

Vs Series Hv Vacuum Circuit-Breaker

Prod Model:	VS1, VS2, etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium:	Vacuum
Voltage:	High
Series:	Vs
Standards:	IEC
Color:	White ,Blue
Rated Voltage:	3.6,7.2,12kv
Mechanical Life:	20000
Rated Frequency:	50,60Hz
Rated Current:	630,1250aetc.
Paint:	Customized
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Certification:	CE
Structure:	Vcb
Poles Number:	All
Function:	Vcb

Product Description

Item	Unit	Data
Standard		IEC60058 GB198489 JB3855 DL/T403
Rated voltage	kV	12
Rated frequency	Hz	50
Rated lingtning impulse withstand voltage(peak)	kV	75
Rated short-time power frequency withstand voltage(1min)	kV	20	25	31.5	40
Rated current	A	630 1250	630 1250	1250 1600 2000 2500 3150	1250 1600 2000 2500 3150
Rated short-time withstand current	kA	20	25	31.5	40
Rated short-circuit making current	kA	50	63	80	100
Rated short-circuit current duration	s	4
Breaking times of rated short-circuit breaking current	Time	50(40kA is 30)
Mechanical life	Time	20000
Rated operation order		AC/110/220,DC 110/220

Item	Unit	Data
Standard		IEC6271-100z60694
Rated Voltage	kV	3.6/7.2/12
Rated frequency	Hz	50/60hz
Rated power frequency withstand voltage	kV	42
Rated lighting impact withstand voltage		75
Rated current	A	630	630	630
		1250	1250	1250
		1600	1600	1600
Rated short-circuit breaking current	kA	20	25	31.5
		20	25	31.5
Rated short-time withstand current		50	63	80
Rated peak withstand current(peak)
Rated short-time making current(peak)		50	63	80
Rated short-circuit breaking current times	Times	30
Rated breaking current of single capacitor bank	A	630
Rated breaking current of back to back capacitor bank		400
Rated operating voltage	V	AC220/110 DC220/110
