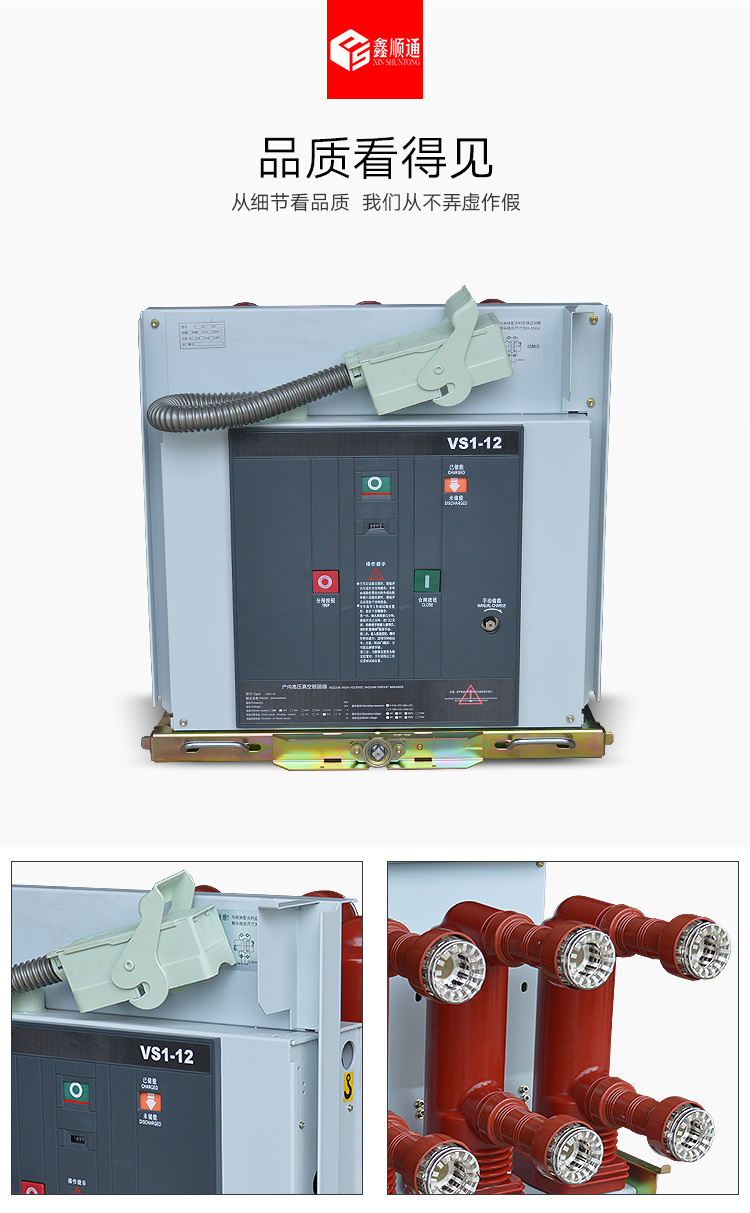

Vs1-12 Indoor Hv Vacuum Circuit Breaker

Name: Vs1-12 Indoor Hv Vacuum Circuit Breaker
Brand: all-electronics-online.com
SKU: 728977642
Availability: InStock
Rating: 4.3 (83 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZN63 (VS1)-12
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	ACB
Poles Number:	3
Certification:	CCC

Product Description

ZN63 (VS1) -12 Series type hv vcb is rated voltage 12kV, three-phase AC 50Hz Indoor high-voltage switchgear.

The use of environmental conditions:
1.Ambient temperature: not higher than +40 °C, not less than -15°C
2. Altitude: not exceed 1000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%.
4. Earthquake intensity: not more than ten.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.

Mainly technical parameters

Adjust the parameters of mechanical properties:

No	Item	Unit	Parameters
1	Contact distance	mm	14±1
2	Contact Over-travel	mm	3.5±1
3	Closing speed	m/s	1.0±0.2
4	Opening speed	m/s	1.3±0.2
5	Contact closing spring time	ms	≤2
6	Rated contact pressure	N	20KA(2400±200) 25KA (2400±200) 31.5KA(3100±200)
7	Three phase closing opening asynchrony	ms	≤2

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
