Vsm-12 Series of Indoor High Voltage Magnetic Circuit Breaker
| Price: |
US $ 2000-7000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
VSm-12 |
| Rated Voltage: |
12kv |
| Rated Current: |
630;1250;1600;2000;2500;3150A |
| Distance Between Phases: |
210, 275mm |
| Mechanism Type: |
Permanent Magnetic |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description

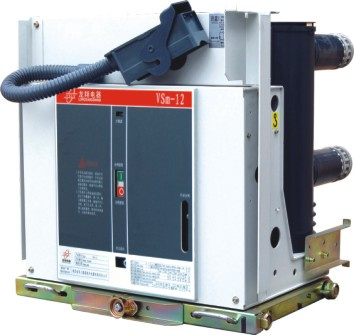

VSm-12
Series of Indoor High Voltage Vacuum Circuit Breaker
General Description Vsm series of indoor high voltage vacuum circuit breaker is adopted front and rare
construction for their permanent magnetic and vacuum interrupters.The main
conducting circuit is with floorstanding type,the upper and lower outlet terminal and
vacuum interrupters are installed in one insulation house.The insulation house is casted with epoxy resin material by APG technology,which can protect the surface of the
vacuum interrupters against dust accumulation and impact.It also has good insulation
property under humid,hot and pollution ambient condition.
The vacuum circuit breaker with permanent mechanism is airinsulated,used for indoor installation for differnt kind of power load,it is suitable for electrical net construction and reconstruction project in municipal net,rural net,mineral and railway net system, especially used in that fields which require frequently switching and have some requirement for short circuit operation cycles.This product was introduced by some international advance technique and processing technology with characteristics of intelligence ,high reliability,long endurance and free maintenance etc.
| Model No. | VSm-12 |
| Standard | IEC62271-100:2001 |
| Operation mechanisum | Permanent magnetic |
Applying ambient conditions1.Ambient temperature:-15ºC~+40ºC.
2.The height above sea level≤1000m.
3.Relative humidity:the average humidity of a day should be no more than 95%;the
average humidity of a month should be no more than 90%.
4.Saturated vapour pressure:the average pressure of a day should be no more than 2.2kPa;the average pressure of a month should be no more than 1.8kPa.
5.Earthquake intensity:not exceed 8 degrees.
6.It should be installed in the places without fire,explosion,serious filth,chemical erosion
and violent vibration.
Packaging & Delivery| Packaging Details: | Non-solid wooden case |
| Delivery Detail: | Within 10~15days from the date of receiving signed sales confirmation by both parties. |
Company Introduction
General
Shaanxi Longxiang Electrical Co., Ltd. is a specialized manufacturer of making vacuum circuit breaker covering the voltage range of 12kV~40.5kV, which is located in Gaoxin 19th Road, East Development Zone, Baoji city, Shaanxi province. It occupancies total area of 18800 square meters including building area of 12800 square meters. The annual production capacity of vacuum circuit breaker is 16000 sets.
Professional management team and extensive market supply
Shaanxi Longxiang Electrical Co., Ltd is in posseeion of professional management team, main of them were from middle of high level management of large-scale enterprises in this industry, with more than 20 years working experience accumulation, professional knowledge and managerial experience, we focus on technology innovation based on market-oriented concept. The products are widely used in national power, petrochemical, smelting, aviation industry etc. And also exporting to Italy, Russia, Iran, India and other international markets. We also have established long-term strategic cooperation relations with several specialized manufactures of power transmission and distribution in the world.
Reliable technique and continuous improvement of quality control
Having professional R&D team to supply technical support, and cooperating with related research institutes, all these guarantee our product in pioneer level on its technique. Besides, our advanced production line can control the quality of any procedures, and all products will be inspected strictly before delivery.
