| Prod Model: |
VV-P VV22-P VV32-P VV42-P... |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jacket: |
PVC |
| Conductor Shape: |
Round/Sector |
| Cores Number: |
1-30 Cores |
| Feature: |
Flame-Retardant |
| Delivery: |
Based on Quantity |
| Voltage: |
Low and Medium Voltage Cable |
| Insulation Material: |
PVC |
| Current: |
AC Cable |
| Application: |
Power Station |
| Certification: |
CCC |
Product Description

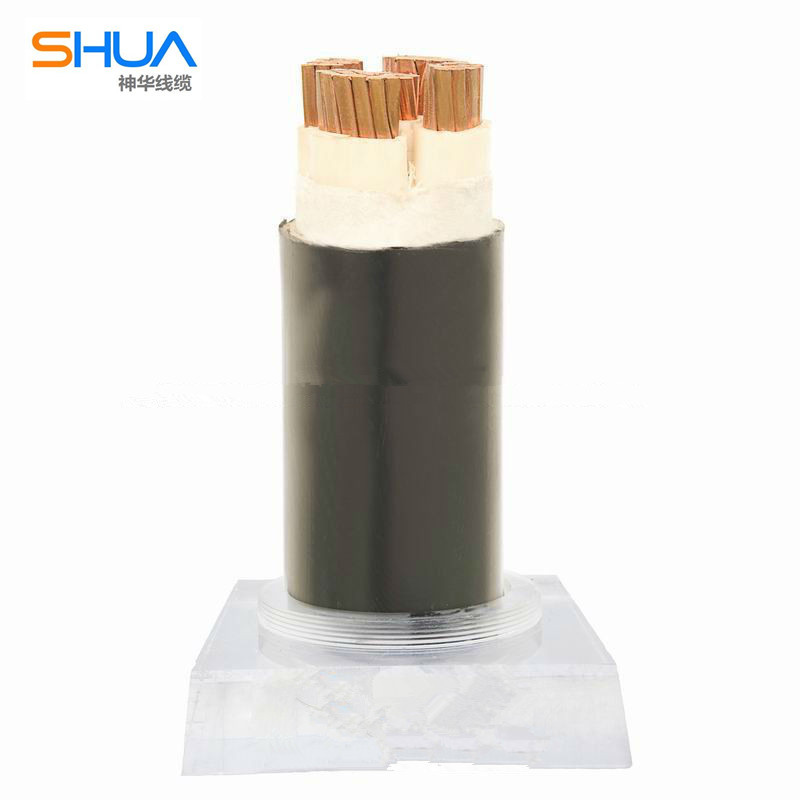

--1900/3300V Cable 3 cores Cu/PVC/PVC Cable BS 6346
0.6/1kV PVC cables (plastic power cable) is one of high quality products of our company. The product not only has good electric capability, but also has good chemical stabilization, simple structure, easy to use, and the laying of cable do not be limited by the fall. It is widely used at the transformer circuit which rated voltage is 6000V or under.
The product is produced against IEC60502 and IEC60331, . And the product can be produced against the standard of BS, DN, and the standard required by the clients.
1. The long-term permissible operation temperature of the conductor shall not be higher than 70
2. The max temperature of the conductor of cable should less then 160 when short circuit. (less then 5 second)
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance
5. Light weight, perfect bending properties, installed and maintained easily and conveniently
6 Rated voltage: 0.6/1kV, 3.6/6kV
7 Number of cores: One, two, three, four, five
1. Type, name and usage
Type
|
Name
|
Usage
|
|
VV
|
PVC insulated PVC sheathed power cable
|
Can be laid at indoor, tunnel and tube .Cable cannot under take mechanism outside force
|
|
VLV
|
|
VY
|
PVC insulated and PE sheathed power cable
|
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside fore
|
|
VLY
|
|
|
PVC insulated steel belt armored and PVC sheathed power cable
|
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
|
|
VLV22
|
|
VV23
|
PVC insulated steel belt armored and PE sheathed power cable
|
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
|
|
VLV23
|
|
VV32
|
PVC insulated fine steel wire armored PVC sheathed power cable
|
Can be laid at indoor, underground and mining well .Cable can undertake mechanism outside force
|
|
VLV32
|
|
VV33
|
PVC insulated fine steel wire armored PE sheathed power cable
|
Can be laid at indoor, underground .Cable can under take mechanism outside force
|
|
VLV33
|
|
VV42
|
PVC insulated thick steel wire armored PE sheathed power cable
|
Can be laid at indoor, underground,mining well .Cable can under take mechanism outside force
|
|
VLV42
|
|
VV43
VLV43
|
PVC insulated fine steel wire armored PVC sheathed power cable
|
Can be laid at indoor, underground ,mining well and the places of b
|
