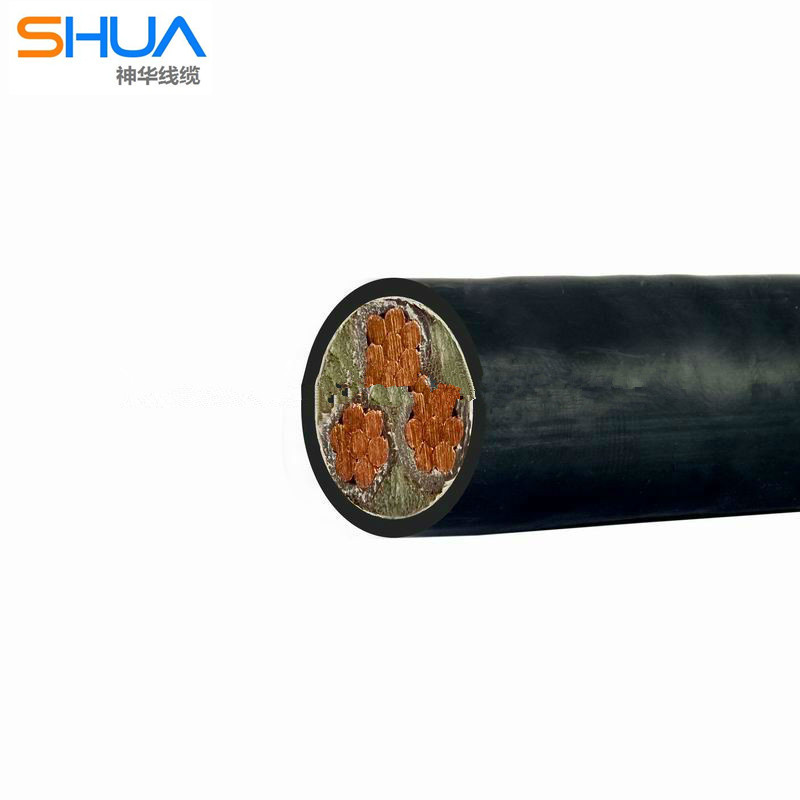

Vy PVC Insulated PE Sheathed Power Cable

Name: Vy PVC Insulated PE Sheathed Power Cable
Brand: all-electronics-online.com
SKU: 740086335
Availability: InStock
Rating: 4.8 (46 reviews)

Price:	US $ 0.8-1/Meter
Trade Terms:	FOB,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	VV VV22 VV32...
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	According to Your Requirements
Color:	Black Red Orange Green
Voltage:	Low and Medium Voltage Cable
Insulation Material:	PVC
Current:	AC Cable
Application:	Power Station
Certification:	CCC

Product Description

Application
Pvc power cablefor fixed laying in power transmission and distribution lines with A/C 50HZ, and rated voltage of 1kv and below.

Operating characteristics:
1. The long-time working temperature of cable should not be higher than 70oC. When the conductor is in short circuit (max. 5s) the temperature should not exceed 160oC. The ambient temperature under installation shall not below 0oC.
2. Bending radius should not be less than 10 times the outer diameter of the cables.

Model	Description	Application
VV	copper conductor, PVC insulated, PVC sheathed, power cables	Suitable for indoors, tunnel, cable trench and occasions alike, with no capacity for mechanic external force. Single-core cable forbidden to laid in magnetic pipes.
VLV	aluminum conductor, PVC insulated, PVC sheathed, power cables
VY	copper conductor, PVC insulated, PE sheathed, power cables
VLY	aluminum conductor, PVC insulated, PE sheathed, power cables
VV22	copper conductor, PVC insulated, steel-tape armoured, PVC sheathed, power cables	Suitable for laid in indoors, tunnel, cable trench and directly burial alike, with a certain capacity for mechanic external force, but not high stretching force.
VLV22	aluminum conductor, PVC insulated, steel-tape armoured, PVC sheathed, power cables
VV23	copper conductor, PVC insulated, steel-tape armoured, PVC sheathed, power cables
VLV23	aluminum conductor, PVC insulated, steel-tape armoured, PVC sheathed, power cables
VV32	copper conductor, PVC insulated, thin wire-armoured, PVC sheathed, power cables	Suitable for laid indoors, tunnel, cable trench, Silo and directly burial with a certain capacity for mechanic external force and stretching force
VLV32	aluminum conductor, PVC insulated, thin wire-armoured, PVC sheathed, power cables
VV33	copper conductor, PVC insulated, thin wire-armoured, PVC sheathed, power cables
VLV33	aluminum conductor, PVC insulated, thin wire-armoured, PVC sheathed power cables

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
