W7 bypass Large LCD display Pure Sine Wave Inverter 1000W-6000W, 12/24/48VDC, 110/220/230/240VAC
| Price: |
US $ 175/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
w7 solar inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
120VAC, 220VAC, 230VAC, 240VAC |
| Output Frequency: |
50Hz/60Hz |
| Output Waveform: |
Pure Sine Wave |
| LCD Display: |
Show Voltage, Battery, Load |
| Color: |
Black and White |
| Peaking Power: |
3 Times of Rating Power |
| Function: |
Bypass,DC auto start optional |
| Battery: |
Free maintenance sealed lead acid batter |
| Phase: |
Single Phase |
| Frequency: |
Low Frequency |
| Current Type: |
DC to AC |
| Usage: |
Solar Inverter System |
Product Description

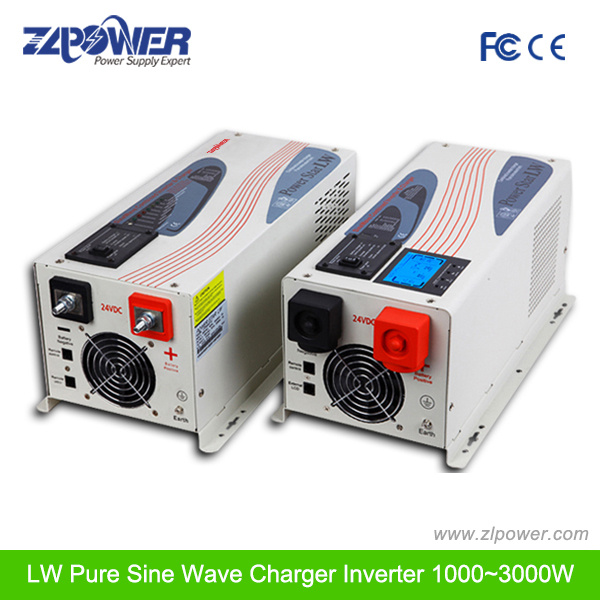

Powerstar LW Inverter Charger 1000W to 6000W, PURE SINE WAVE, 12V/24V/48VDC, 120V/220/230/240VAC, with built in AC battery charger and UPS Function, PEAK POWER Three times.
NEW FEATURES:
1. LCD Digital Display Panel, can show voltage, battery and load details and adjust voltage or frequency.
2. Add inside MPPT solar charger controller 12v/24v 40A. (Optional)
3. Add remote control LCD panel with 5meters length cable. (Optional)
Advantages:
l. Pure sine wave combined inverter charge
l. 4 step progressive charging 7 battery type selector
l. Easy to install & easy to use
l. Highpower,Multistage Battery charger
l. Automatically and swiftly line to battery switchover
l. High efficiency using lineinteractive circuit topology
l. Microprocessor control guarantees high reliability
l. Bypass without battery connected
When the POWER STAR LW is in the inverter mode, the ' through the box' earth line is automatically
disconnected from the input earth and joined to the output neutral, complying with the natural earth
inverter requirements if you what to maintain a trough earth simply connect the input earth to the
output earth.
| Model No. | LW1000 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| AC Input |
| Phase & waveform | Single phase & Pure Sine Wave |
| Voltage | 120VAC/230VAC |
| Acceptable Voltage | 194-243VAC\164-243VAC(wide mode ) |
| Line Low Transfer | 85V±4%/184(154 wide mode±4%) |
| Line Low Return | 95V±4%/194(164 wide mode±4%) |
| Line high Transfer | 135V±4%/253±4% |
| Line high Return | 127V±4%/243±4% |
| Frequency | 50Hz or 60Hz (auto sensing) |
| Line Low Transfer | 47Hz for 50Hz,57Hz for 60Hz |
| Line high Transfer | 55Hz for 50Hz,65Hz for 60Hz |
| Output |
| Phase & waveform | Single phase & Pure Sine Wave ( bypass mode sync to input ) |
| Voltage | 120/220/230/240VAC ( bypass mode sync to input ) |
| Voltage Regulation | ±10%rms ( bypass mode sync to input ) |
| Frequency | 50Hz±0.3Hz ( bypass mode sync to input ) |
| Peak Power | 3 times of rating power |
| Short Circuit Protection | Yes,shutdown after 10ms |
| Power Factor | 0.9-1.0 |
| DC Input |
| Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V |
| Minimum Start Voltage | 10V for 12V,20V for 24V,40V for 48V |
| Low Battery Alarm | 10.5V for 12V,21V for 24V,42V for 48V |
| Low Battery Transfer | 10V for 12V,20V for 24V,40V for 48V |
| High Voltage Alarm | 16V for 12V,32V for 24V,64V for 48V |
| Max Charging Current | 35A/70A |
| Over Charge Voltage | 15.7V for 12V,31.4V for 24V,62.8V for 48V |
| Transfer Efficiency |
| Line Mode | > 95% |
| Battery Mode | > 88% |
| power saver | Available when the load is less than 25 Watts |
| Indicators |
| 7-LED Display | From the right to the left,LED1 line mode (green lighting) , LED2 inverter mode |
| (green lighting) , LED3 charging mode ( yellow lighting ), LED4 Fully charged |
| (green lighting) , LED5 over heat shutdown(red lighting ), LED6 Overloaded |
| shutdown ( red lighting ), LED7 Saving Mode ( green lighting ) |
| 3-LED Display | Charging Mode(green lighting) , inverter mode(green lighting) , Alarm ( red lighting ) |
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is |
| turning the inverter off. |
| Audible Alarm | Sounding when the heatsink's tem is over 105 °C and shutdown after 30 seconds. |
| Protections | low battery , over charging , over temp , over load |
| Communications | RS-232/USB(custom-made ) |
| Enviromental |
| Operating Environment | 0-40 °C ,0-90%RH(non-condensing) |
| Audible Noise | < 60dB |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
