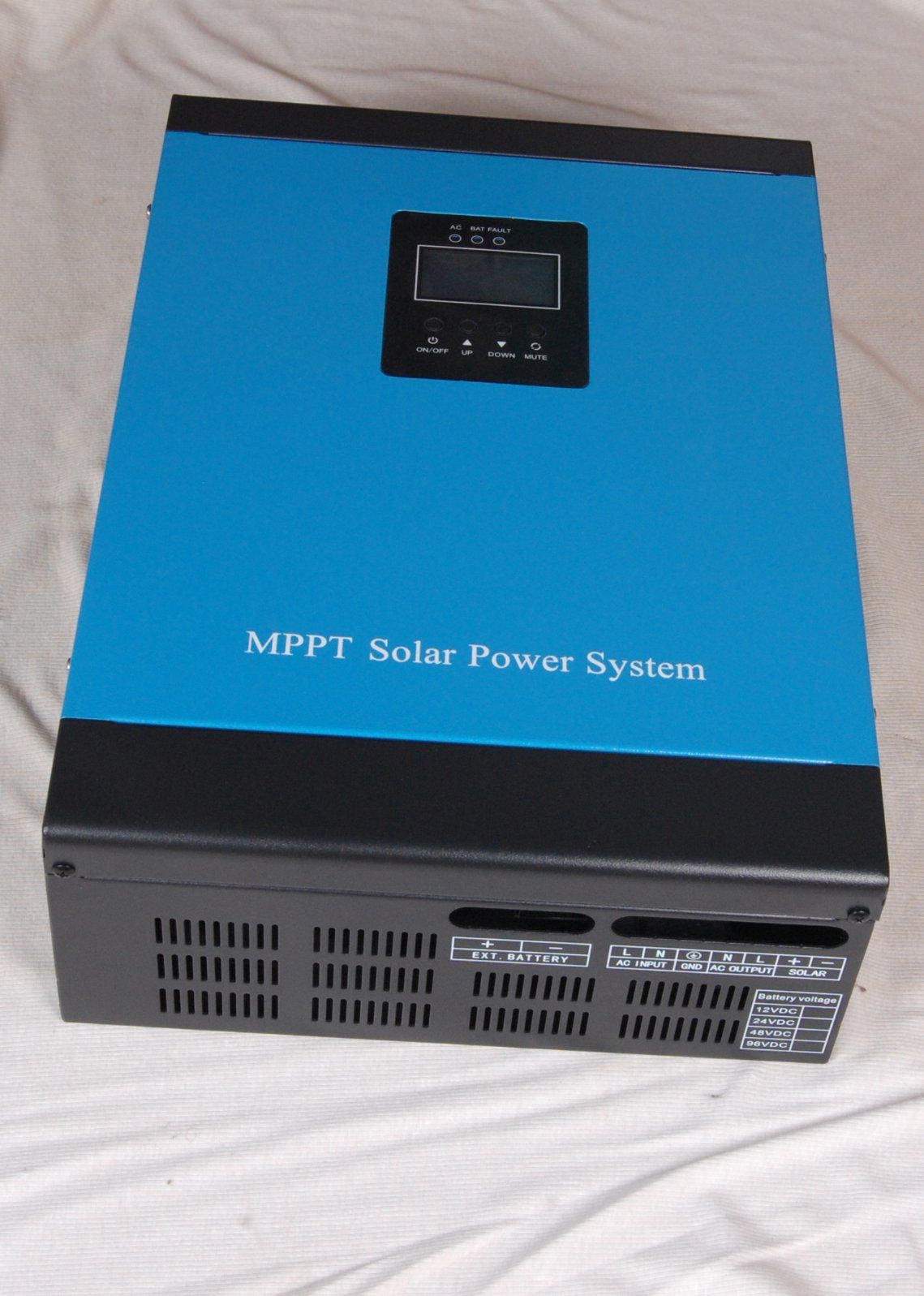

Wall Mounted MPPT Controller 50A 24V Inverter 1000W

Name: Wall Mounted MPPT Controller 50A 24V Inverter 1000W
Brand: all-electronics-online.com
SKU: 822236645
Availability: InStock
Rating: 5 (112 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MI-1.5KVA
AC Input Voltage Range(VAC):	170-275VAC 220V, 85-138VAC 110V
Input Frequency(Hz):	45-65Hz
Battery Voltage Range:	10.5-15VDC
Output Waveform:	Pure Sine Wave
Efficiency:	85%
Thd:	3%
System Voltage Automatic Recognition:	18V-29V
Maximum PV Open Circuit Voltage (Voc):	190V

Product Description

MI-1.5KVA Technicai data(Low frequency)

Models		MI-1.5KVA(MPPT)
Rated power		1000W
Battery voltage		24V
N.W./G.W		14KG/15KG
Dimension L×W×H(mm)		440×310×132(mm)
Package size L×W×H(mm)		390×390×510(mm)/2PCS
Inverter	AC Input voltage range(VAC)	170-275VAC(220V)
	Input frequency(Hz)	45-65HZ
	Battery voltage range	21-30VDC
	Output voltage range(VAC)	Inverter mode 220V±2%
	Utility output voltage range	constant voltage output 220VAC±10%
	Output frequency(Hz)	50±1%.
	Utility output frequency range	50Hz 60Hz automatic tracking
	Output waveform	Pure sine wave
	Efficiency	85%
	THD	≤3%
	Transfer time(ms)	≤4ms
	Charging type	U0-U7
	charging current	C0=0A,C1=5A,C2=10A,C3=15,C4=20A,C5=25A,C6=30A
	Battery Lack-voltage alarm/protection	24V(21V/20V)
	Battery over-voltage alarm/ protection	24V(30V/33.4V)
	Overload protection	rated power≥110%,60Spower off;≥130%,10S power off;≥150%,0.6S power off..
	Temperature protection	≥85ºC alarm,≥90ºC shutdown the machine
	Working mode	01. Normal Mode: Utility is preferred, Utility is charging ;02 Eco Mode: load power≤10% shutdown the machine,≥11%-100% turn on;03 ≥13V ≤10.5V Solar inverter is preferred,Utility is not charging,charging:battery voltage≥13V switch to inverter mode;Inverter:battery voltage≤10.5V, switch to utility mode
Solar power Controller	Solar rated voltage	36V
	Maximum input voltage	105V
	Charging voltage(DC)	28.6V
	Charging current	50A
	Protection type	Solar cells, anti-anti-charge protection, battery open-circuit protection, battery reversal protection
	Overcharging protection voltage	30V
	Over discharge	20V
MPPT	System voltage automatic recognition	18V-29V
	Maximum PV open circuit voltage (Voc)	190V
	Max efficiency	≥98.1% (Voc is 1.5 or 2 times than battery, then it's best efficiency)
Cooling method		Auto detective cooling fan ≤42ºC Fan slow turning heat dissipation,≥45ºC Fan high turning heat dissipation

Shenzhen sunlight photoelectric Co., Ltd. is a professional and powerful new energy products manufacturer and provider of solar application products and systems in Shenzhen.

In the past 10 years it mainly engaged in all kinds of lighting products manufacturing famous as Sunlight brand.

At present Shenzhen Sunlight photoelectric Co., Ltd keeps pace with the times of solar and makes solar application products, home solar power system series, Solar street light, solar garden light, solar energy traffic lights; Solar controller, solar inverter, solar battery, energy-saving lamps and lanterns etc.

The company has the the research and development of plastics moulds, die-cast mould, as well as moulding products, rapid prototype and assembly of finished parts. Our products are various and top-grade including all kinds moulds of consumer electronic goods, lighting fixtures, Lamps LED tubes and solar power systems.

High quality and favorable price. We're pleased to get your Inquiry and we will come back to you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
