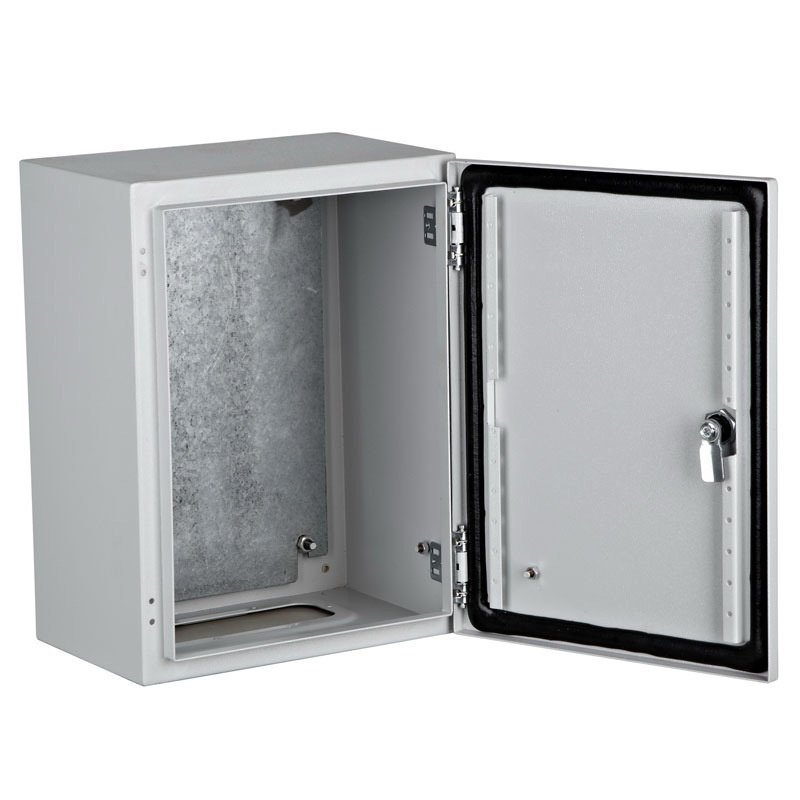

Wall Mounting Enclosure / Distribution Cabinet

Name: Wall Mounting Enclosure / Distribution Cabinet
Brand: all-electronics-online.com
SKU: 662778962
Availability: InStock
Rating: 4.7 (120 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Treatment:	RAL7032 or RAL 7035 Powerder coated
Type:	Distribution Metering Box
Structure:	Protection
Size:	Customizable
Application Range:	Electrical power system
Shell Protection Grade:	IP65
Brand:	Cowinelec, OEM,ODM

Product Description

*IP65 or IP54 Board
*Multipole earthing points, RAL7032 or RAL 7035 Powerder coated
*One door, two door, or inner door. Or fix with chassis
*Includes aluzince steel mounting plate/powder coated plate
*Nice seal
*any size is avilable

JUNTA DE ESTANQUEIDAD Junta de poliuretano para una mayor fiabilidad y una estanqueidad perfecta del armario. IP 65 (o IP 54 con placa Cabstop)

Este armario, se entrega listo para su uso equipado con una placa de montaje ciega; Se puede instalar directamente o equiparlo con diversos accesorios para una mayor rapidez en la instalació N: Placas Cabstop para optimizar la entrada de los cables, placas perforadas para simplificar la fijació N de la aparamenta dentro del armario o chasis para la integració N perfecta de los dispositivos modulares.

Gracias a su estanqueidad (IP 65) y robustez, los armarios se pueden instalar en una gran variedad de entornos, tanto en ambientes industriales como en el sector terciario: Almacenes, aparcamientos exteriores, campings, centros comerciales, etc.

NO.	Height	Width	Deep	Sheet Thickness
NO.	mm	mm	mm	Door/mm	Body/mm	Mounting Plate/mm
1	200	200	150	1.2	1.2	2
2	250	200	150	1.2	1.2	2
3	300	200	150	1.2	1.2	2
4	300	200	200	1.2	1.2	2
5	300	250	150	1.2	1.2	2
6	300	250	200	1.2	1.2	2
7	300	250	250	1.2	1.2	2
8	300	300	150	1.2	1.2	2
9	300	300	200	1.2	1.2	2
10	300	300	250	1.2	1.2	2
11	400	300	150	1.2	1.2	2
12	400	300	200	1.2	1.2	2
13	400	300	250	1.2	1.2	2
14	400	300	300	1.2	1.2	2
15	400	400	150	1.2	1.2	2
16	400	400	200	1.2	1.2	2
17	400	400	250	1.2	1.2	2
18	400	400	300	1.2	1.2	2
19	500	300	150	1.2	1.2	2
20	500	300	200	1.2	1.2	2
21	500	300	250	1.2	1.2	2
22	500	300	300	1.2	1.2	2
23	500	400	150	1.2	1.2	2
24	500	400	200	1.2	1.2	2
25	500	400	250	1.2	1.2	2
26	500	400	300	1.2	1.2	2
27	500	500	150	1.2	1.2	2
28	500	500	200	1.2	1.2	2
29	500	500	250	1.2	1.2	2
30	500	500	300	1.2	1.2	2
31	600	400	150	1.2	1.2	2
32	600	400	200	1.2	1.2	2
33	600	400	250	1.2	1.2	2
34	600	400	300	1.2	1.2	2
35	600	500	150	1.2	1.2	2
36	600	500	200	1.2	1.2	2
37	600	500	250	1.2	1.2	2
38	600	500	300	1.2	1.2	2
39	600	600	150	1.2	1.2	2
40	600	600	200	1.2	1.2	2
41	600	600	250	1.2	1.2	2
42	600	600	300	1.2	1.2	2
43	700	400	200	1.2	1.2	2
44	700	400	300	1.2	1.2	2
45	700	500	150	1.2	1.2	2
46	700	500	200	1.2	1.2	2
47	700	500	250	1.2	1.2	2
48	700	500	300	1.2	1.2	2
49	700	600	200	1.2	1.2	2
50	700	600	250	1.2	1.2	2
51	700	600	300	1.2	1.2	2
52	800	600	200	1.5	1.5	2
53	800	600	250	1.5	1.5	2
54	800	600	300	1.5	1.5	2
55	800	600	400	1.5	1.5	2
56	800	800	200	1.5	1.5	2
57	800	800	250	1.5	1.5	2
58	800	800	300	1.5	1.5	2
59	1000	600	200	1.5	1.5	2
60	1000	600	250	1.5	1.5	2
61	1000	600	300	1.5	1.5	2
62	1000	700	200	1.5	1.5	2
63	1000	800	200	1.5	1.5	2
64	1000	800	250	1.5	1.5	2
65	1000	800	300	1.5	1.5	2
66	1000	800	400	1.5	1.5	2
67	1000	1000	250	1.5	1.5	2
68	1000	1000	300	1.5	1.5	2
69	1200	600	200	1.5	1.5	2
70	1200	600	250	1.5	1.5	2
71	1200	600	300	1.5	1.5	2
72	1200	800	200	1.5	1.5	2
73	1200	800	250	1.5	1.5	2
74	1200	800	300	1.5	1.5	2
75	1200	1000	250	1.5	1.5	2
76	1200	1000	300	1.5	1.5	2
77	1200	1000	400	1.5	1.5	2
78	1200	1200	250	1.5	1.5	2
79	1200	1200	300	1.5	1.5	2
81	1400	600	300	1.5	1.5	2
82	1400	800	300	1.5	1.5	2
83	1400	800	400	1.5	1.5	2
84	1400	1000	300	1.5	1.5	2
85	1400	1000	400	1.5	1.5	2
86	1400	1200	300	1.5	1.5	2
