Wall Plug 12V 2A EU Us UK Au Switching Power Adapter

Name: Wall Plug 12V 2A EU Us UK Au Switching Power Adapter
Brand: all-electronics-online.com
SKU: 794839045
Availability: InStock
Rating: 4.4 (53 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW120-020-A
Input Voltage:	DC100-240V 50/60Hz
Voltage:	12V
Current:	2A
Warranty:	One Year
Delivery Date:	15days
Usage:	Switching
Output Type:	AC
Brand:	Customized

Product Description

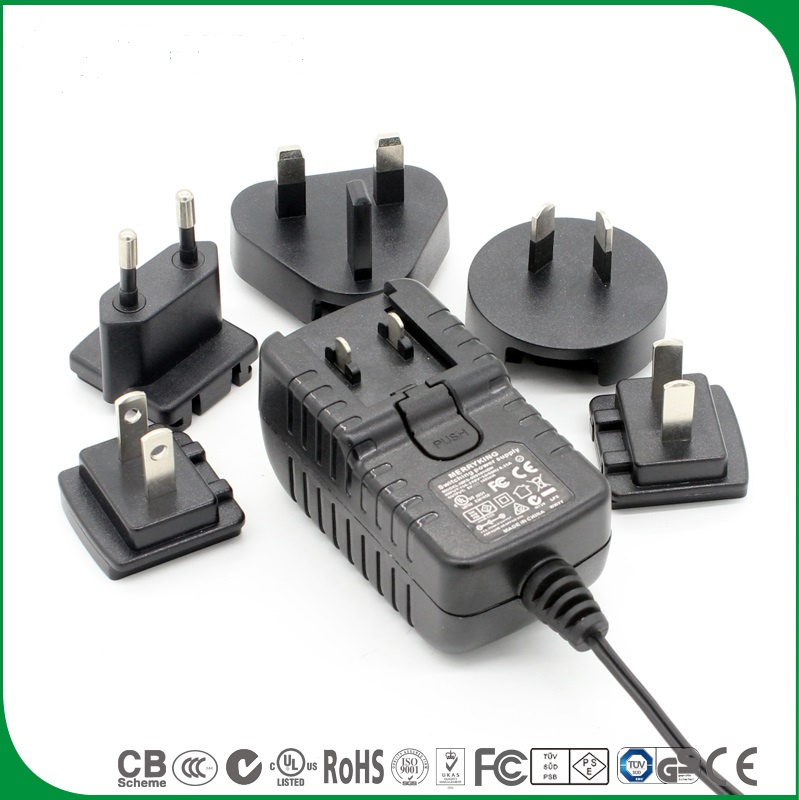

Wall plug 12V 2A EU US UK AU switching power adapter

Specifications:

Input Voltage:	100-240V DC 50/60Hz 0.3A
Output Voltage:	12V
Output Ampere:	2000mA / 1500mA / 1000mA / 800mA / 500mA / 350mA / 100mA
DC Plug:	5.5x2.1mm / 5.5x2.5mm / 2.5x0.7mm / 3.5x1.35mm / 4.0x1.7mm
DC Cable:	3464/2468 22AWG Cable / L=1.2m / 1.5M / 1.8M (OEM available)
AC Plug:	US/EU/UK (BS)/AU Wall Mount type (Other plug available)
Color:	Black / White
DC plug type:	right angle / 90° angle

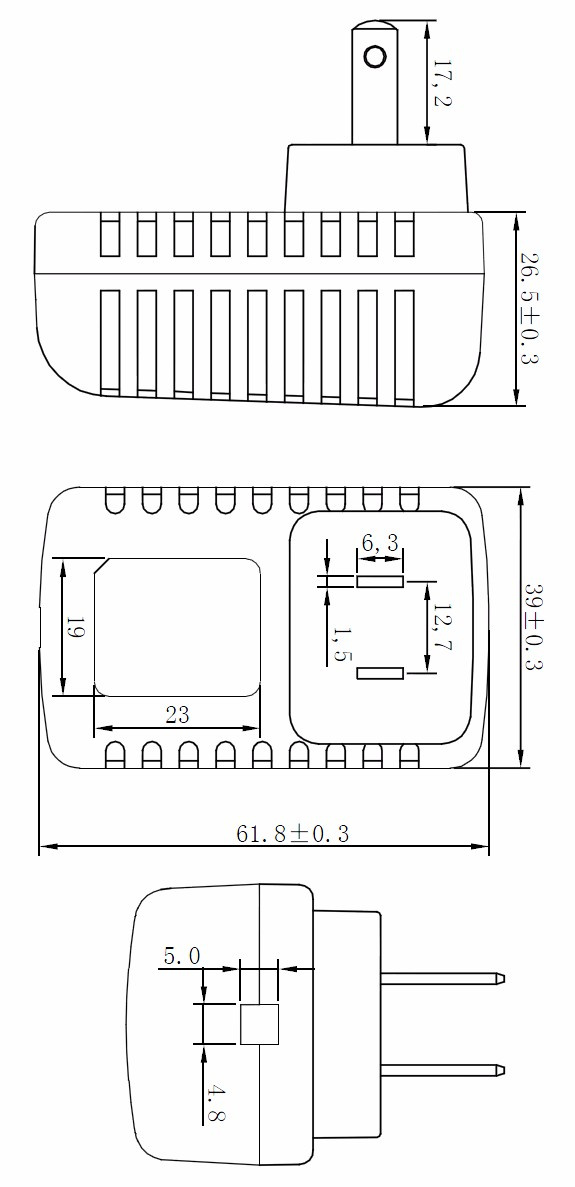

Case size:

Features:
Compact size and easy to carry
Punctual delivery and competitive price
Single output to 24W, 12V, 2A
Meets safety agency requirements and compliant with EMI/EMC
Modified and customized designs are available
1-year warranty

Electrical Specification:

Input voltage: 90-264VAC, 47/63Hz
Input current: 0.2A (maximum), 100/240V AC
Input Plug: EU US UK AU South Korea South Africa Plugs
Surge current: at 100V AC, 30A maximum / at 240V AC, 60A maximum
Leakage current: 0.25mA maximum
No load power consumption: 0.1W maximum
Output efficiency: 24W maximum
Output voltage range: 3-24V DC (Optional)
Over-voltage protection: 120% minimum
Over-current protection: 120% minimum
Short-circuit protection: automatic recovery
Output voltage range: ±5%
Ripple & Noise:1% of Output Voltage

Package:

Inner Box

Normally neutral brown box or customized requirement

Outer Carton

Normally neutral standard carton or customized requirement

Shipping:

FedEx/DHL/UPS/TNT for samples, Door-to-Door;
By Air or by Sea for batch goods, for FCL: Airport / Port receiving;
Customers specifying freight forwarders or negotiable shipping methods;
Delivery Time: 1-3 days for samples; 5-10 days for batch goods.

Our Services

OEM and ODM available
New moulding available
Manufacture per your samples are welcome

About samples: Samples available within 3-5 workdays

After sales service:

Warranty: 12 Months
Spare parts: 3‰ of the qty
Get the feedback on our products within 10 days after customer receive the product,
If quality problems within warranty, confirm with customer what problem occurs, if our faults, accomplish the defected parts in next order.
Give our best supporting during our customer's application.

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
