Product Description

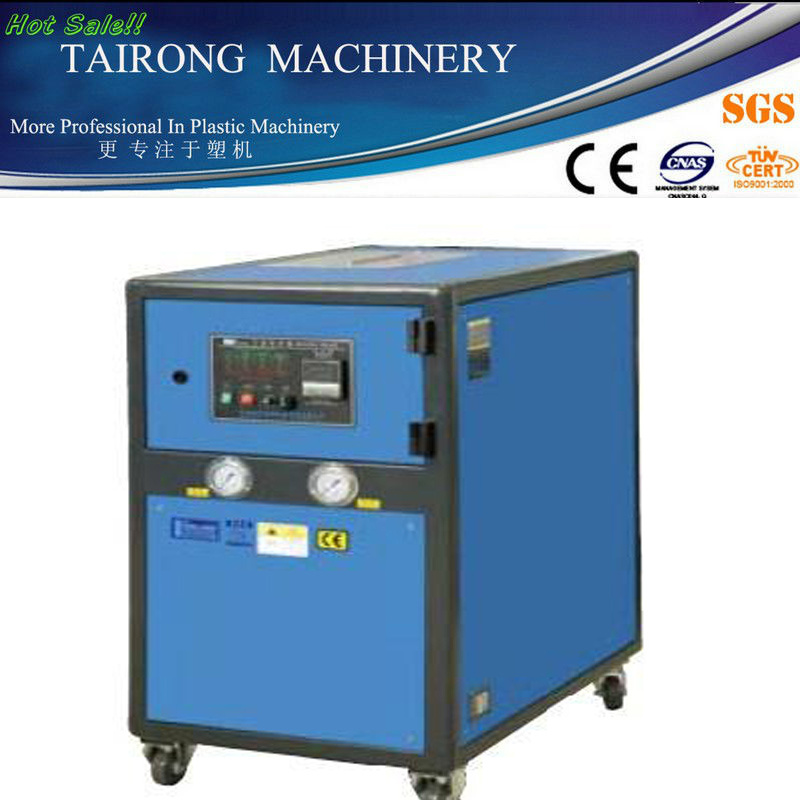

Compressor is used "COPELAND" brand which made in the USA. The inside safety protection can guarantee the long lasting of the chiller well. The pump is used made in Taiwan and all parts of cooling system are imported from the USA, Mexico. Denmark and Japan.
Equipped with shellpipe condenser and stainless steel cased evaporator, which are quite easy to be cleaned and maintained. Equipped with automatic water supply device in the water- tank. Air cooled cased chiller with board type evaporator is suitable for the district of lack of water resource and district of poor water quality.
Larger than model XC-20 are assembled 2 sets or 4 sets of compressors, so they are able to used as separate or together to reduce the resource waste.
Complete with safety protection and error indication system, including compressor over load protection, pump over load protection, high pressure and low pressure protection and phase failure protection,
Equipped with figure intellectualized temperature controls, which can accurately measure and control water temperature within the range of 5C-35C.
Applied Machinery: Cooling system of oil temperature, ultrasonic, high frequency machinery. Cooling
System of injection molding machinery. Cooling system of blow molding machinery. Cooling system of extruder.
Additional equipment for option: 1. Starter of timer switch. 2. Large type of water filter. 3. Protection switch for prove the electric leakage. 4. Cooling tower and pump.
|
Model |
XC-03WCI |
XC-05WCI |
XC-08WCI |
XC-10WCI |
XC-12WCI |
XC-15WCI |
XC-20WCI |
XC-25WCI |
XC-30WCI |
XC-40WCI |
XC-50WCI |
XC-100WCI |
|
Parameter |
|
Specifications |
|
Cooling capacity (Kcal/h) |
7580 |
13500 |
21150 |
28000 |
34400 |
41000 |
50000 |
60000 |
77600 |
101780 |
121400 |
246000 |
|
Compressor |
( All-closed V orticity ) |
Screw Compressor |
|
Compressor power (kw) |
2.5 |
4.4 |
7 |
9 |
10.2 |
13.4 |
18 |
20.4 |
26.8 |
35 |
40 |
74 |
|
Refrigerant |
R22 |
|
Chilled water pump power(kw) |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
1.5 |
2.2 |
2.2 |
4 |
7.5 |
7.5 |
8 |
|
Max flow rate of chilled water(L/min) |
55 |
120 |
120 |
200 |
200 |
400 |
400 |
400 |
400 |
600 |
600 |
900 |
|
Max pressure(m) |
9 |
25 |
25 |
16 |
16 |
20 |
30 |
30 |
50 |
55 |
55 |
60 |
|
Flow water inlet and outlet pipe ( " ) |
1 " |
1 " |
1 " |
1.5 " |
1.5 " |
1.5 " |
2 " |
2 " |
2 " |
3 " |
3 " |
5 " |
|
Condensing water rate (L/min) |
≥ 36 |
≥ 60 |
≥ 100 |
≥ 135 |
≥ 200 |
≥ 200 |
≥ 240 |
≥ 300 |
≥ 300 |
≥ 340 |
≥ 400 |
≥ 800 |
|
Chilled water inlet and outlet pipe (" ) |
1 " |
1 " |
1.5 " |
1.5 " |
1.5 " |
1.5 " |
2 " |
2 " |
2 " |
2 " |
2 " |
4 " |
|
Size length(mm) |
850 |
850 |
1000 |
1150 |
1250 |
1500 |
1700 |
1700 |
2100 |
2100 |
2300 |
2500 |
|
Size width(mm) |
560 |
560 |
750 |
800 |
850 |
900 |
950 |
1000 |
1100 |
1200 |
1400 |
1500 |
|
Size height (mm) |
870 |
1040 |
1100 |
1150 |
1050 |
1200 |
1200 |
1300 |
1300 |
1500 |
1500 |
1700 |
|
Water tank capa(L) |
38 |
70 |
130 |
170 |
220 |
260 |
300 |
380 |
/ |
|
Weight(kg) |
180 |
220 |
320 |
400 |
420 |
450 |
550 |
650 |
750 |
|
|
|
