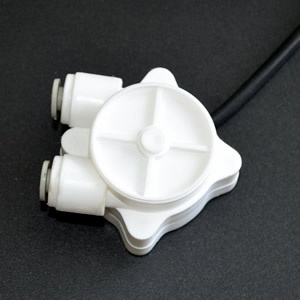

Water Flow Sensor with Plastic Material of Mini Turbine (FST-002)

Name: Water Flow Sensor with Plastic Material of Mini Turbine (FST-002)
Brand: all-electronics-online.com
SKU: 703997515
Availability: InStock
Rating: 4.5 (114 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FST-002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Principle:	Hall
Wires:	PNP (Three-Wires)

Product Description

The turbine flow sensor is designed to measure the flow of water, gasoline, kerosene, and other light transmitting, non-corrosive liquids of similar viscosity. specifically for small diameter applications, the turbine flow sensor provides accurate, repeatable readings in flow ranges 0.5 to 2 lpm. The higher viscosity of diesel fuel reduces signal repeatability at flow rates below 0.03 GPm. Pressure drops are very low compared to other turbine flow sensors and the bearing system is rated for continuous operation at the upper end of the flow range. The sensors produce a current pulse signal from a Hall-effect mement. FST-002 flow sensor is specially designed for heating water, non alcoholic beverage, alcoholic beverage, and other low viscosity liquids applications. It is made of PBT material for more high operating temperature. Housing: PBT Bearing pin: PBT O-ring: Silicon Turbine: PBT Flow rate: 0.3 -2.5.0 L/min Measuring accuracy: 10% Repeatability: 10% Temperature range: -10°C to +85°C Pressure range: 0.5 bar to 8.0 bar @ 20°C Mounting position: Horizontal recommended Signal Connection: Open Collector NPN 3.8-15.0 VDC Signal: square wave pluse

Our Corp.Specializes in studying and manufacturing magnetoelectric sensors, of the ability producing the following series with large scale.

Temperature Switches, PT100, PT1000 sensor, transmitter, and preventing cooling switches, pressure switches and sensors, liquid level switches, flow switches and turbin flow sensor, level Transmitter, position switches, proximity switches, gear tooth speed sensor, magnetic encoder, rotary sensors are marching to market.Our products can be widely applied to automobile engine, automobile-conditioner, household conditioner refrigerator, Electro-heater for appliance, solar boiler, for watching out and controlling temperature, liquid level, pressure and fluid flow parameters.

Products are matched with these famous domestic enterprises, such as Shanghai Carrier.A.O.Smith, Pentair, XinFei (Henan) Guangzhou refrigerator, Midea, , Meiling, Roshita, Hitachi of Japen etc.At the same time, we provide the OEM service.

Our products are CCC, VDE, ETL, CE, CQC, EX approved and have passed through the ISO 9001-2000 certified.

Our whole staff carries out the following operations and managing ideal:Credit, honest and meeting customer's demand.All employees are working hard on your and our business with highly attitude!
