Water Flow Switch Water Flow Control Liquid Flow Switch L K B-01

Name: Water Flow Switch Water Flow Control Liquid Flow Switch L K B-01
Brand: all-electronics-online.com
SKU: 690140302
Availability: InStock
Rating: 4.3 (119 reviews)

Price:	US $ 8.05-21.18/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LKB-01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:Dn25:	Connection: Screw
Control Type: Paddle:	Work Pressure: 1.0MPa
Liquid Temp:Max 100c:	Maximum Static Pressure: 10kg/Cm2/20kg/Cm2

Product Description

HENGSEN company is Professional OEM manufature!

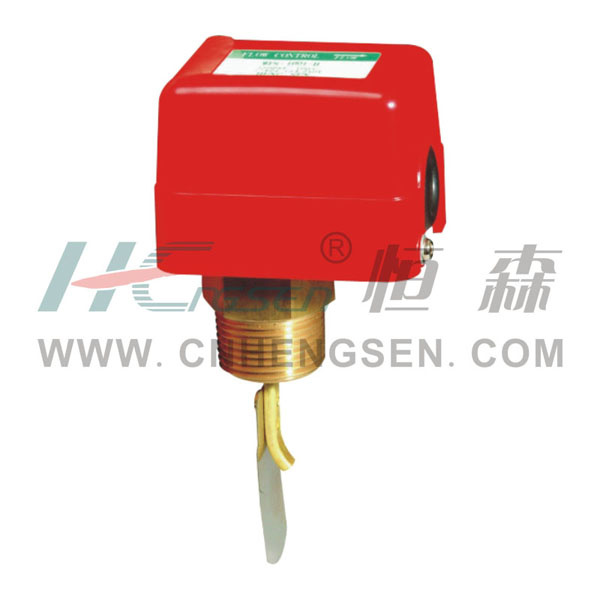

LKB-01 Water Flow Switch/ Water Flow Control DN25
Used in Liquid Flow Lines Carrying in
Water,Air Conditioning System,Heating System,Water System

WATER FLOW CONTROL
MODEL:LKB-01

APPLICATION:

Flow control used in liquid flow lines
carrying in water of any fluid not harmful
to brass or phoshphor bronze,non flammable fluid.

SPECIFICATIONS:

Control Type: Paddle
Maximum static pressure: 10kg/cm2/20kg/cm2
Electrical switch: SPDT RATING:220VAC,15A
Connection: Screw
Case: Plastic cover with 1/2 conduit opening
Work Pressure: 1.0Mpa
Liquid Temp:max 100ºC

MOUNTING:

Flow switch may be mounted in a horizontal pipe line or vertical pipe line.
Mount the flow switch in a section of pipe
where there is a straicht run of at least 5 pipe diameter
on each side of the flow switch.

We are professional OEM manufacturer of HVAC Control Products, Refrigeration Parts&Tools, Brass fittings&Copper Fitting, Disperse pipe(refnet joint).

We founded in 1988 years and have 10 years ODM&OEM experiences.

We have 3 main series products.

(1)HVAC Control products:

-Motorized brass Ball Valve

-Motorized Zone Valve

-Electric Thermal Valve

-Brass Solenoid Valve(air, oil, water)

-Motorized Flange Iron ball valve

-Damper actuator

-Dynamic Pressure Balance Electric Regulating Valve

-Dynamic Balance Filter motorized ball valve

-Water Flow Brass Static Balance valve

-Electrical Control Auto compensation Plug valve

-Mechanical thermostat

-Digital thermostat

-Temperature sensor

-Liquid Flow Switch

-HVAC Brass Control Valve(with Actuator)

-HVAC Iron Control Valve(with Actuator)

(2)Refrigeration Parts&Tools:

-Double Manifold gauge sets-Single manifold set-Refrigeration Gauges

-Charging Hose-Quick Couplers-Sight Glass-Hand Valve

-Split Air Conditioning Valve-Refrigeration Ball Valve

-Refrigeration Solenoid Valve-Filling Valve-Can Tap Valve

-Needle Valve-capillary-Comb Slice-Cutting Knife

-Brass Nut-Brass tie-in

-Disperse pipe(refnet joint)

(3)Copper&Brass Pipe Fitting:

-copper Elbow-copper Tee-copper Straight coupling

-copper Reducing Coupling-copper U Bend-copper P-Trap

-Brass Solenoid Valve(water, oil, air)

-Brass Male&Female elbow

-Brass Male&Female Tee

-Brass Male&Female connector

If you are interesting in our products and service,

Please contact with us, Thanks.
