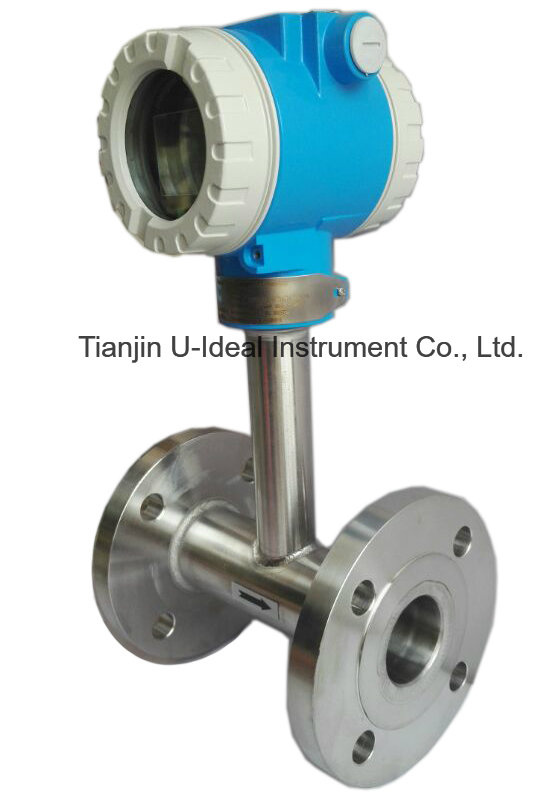

Water/Steam Flow Turbine. Vortex, Electromagnetic, Ultrasonic Flow Meter
| Price: |
US $ 350/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LDC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensor: |
Clamp-on/External |
| Accuracy: |
±0.2-0.5% |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Electrical Principles |
| Size: |
|
Product Description
Electromagnetic flowmeter/ water flow meter/ mass flowmeter/ liquid flowmeterElectromagnetic flowmeter is a new type of flow measurement instrument.
Based on the electromagnetic induction principle, it measures conductive liquid flow according to electromotive force induced by the conducting flow going through the applied magnetic field.
It is used to measure the conductive liquid flow of tap water, steel, petroleum, chemical, electric power, industry, water conservancy and other departments, and can also measure the acid, alkali, salt and other corrosive conductive liquid.
GENERAL INFORMATION
Product Description
Tianjin U-ideal LDG electromagnetic flow meters are intended for fluid measurement in most industries including water, wastewater, food and beverage, pharmaceutical and chemical. ...….There are two basic components of electromagnetic flow meter: 1)The Detector, which includes the flow tube, isolating liner and measuring electrodes, and 2) The Converter, which is the electronic device responsible for signal processing, flow calculation, display and output signals. The materials of construction of the wetted parts (liner and electrodes) should be appropriate for the specifications on the intended type of service. Review of the compatibilities consistent with the specifications is recommended. All electromagnetic flow meters are factory tested and calibrated. A calibration certificate is included in the shipment of each meter.1 Feature and Application
Feature
The electromagnetic flow meter works according to Faraday Law, the
Flow meter is used to measure volumetric flow rate for inductive liquids and pulps. This type Electromagnetic flow meter has several characteristics.
The measurement is independence of the density, viscosity, temperature, pressure and conductivity of the measured fluid.
No moving parts in the measuring tube. No pressure loss. Low requirement for the upstream and downstream straight pipes.
All digital processing, high disturbing resistance, reliable measurement, high accuracy, wide measuring range up to 1500: 1;
The transmitter uses a 16 bits Embedded microprocessor, easy to operate, displays measured values in Chinese, has self-test and self-diagnosis function.
Dual direction measurement function. It can display forward direction flow rate and reverse direction flow rate. It can also display dual direction of current and frequency output, easy to record and save the signal for different direction.
Three inside counters can respectively display forward direction volume,
Reverse direction volume and the different volume of both directions.
It is possible to communicate via RS485 or RS232.
1.2 Main application range
It can measure volumetric flow rate for inductive liquids and pulps in the sealed pipes. The main application range can be found in the following fields: Petrol, chemical
Industry, power generation and distribution, mine, water treatment, paper industry, pharmaceutical industry, food and etc.
1.3 Application condition
Ambient temperature: Remote sensor: -25º C~+60º C
Compact version and transmitter (process temperature): -10º C~+60º CRelative humidity: : 5~100
1.4 Process condition:
Maximum Temperature for liquids
Compact version: 70º C
Remote version: PTFE lining 100º C, 150º C
Gather chloronorgutta lining 80º C, 120º C
Polyurethane lining 80º C
Conductivity of fluid: More than 5μ S/cm;
Pressure: Flange Type 4.0MPa, 1.6MPa, 1.0MPa
Design

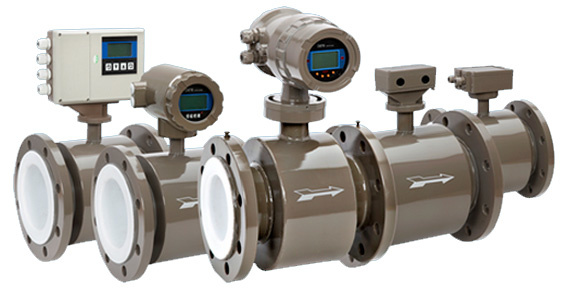

2.1 Structure and version
Compact version
Remote version
Design Features
| Fully welded maintenance‐free sensor |
| Flange version with full bore flow tube |
| Standard as well as higher pressure ratings |
| Large diameter range from DN25...3000 with rugged liners approved for drinking water |
| Industry specific insertion lengths |
| Modular construction | The measurement system consists of a flow sensor and a signal converter. It is available as compact and as separate version. |
Compact version
| With 511B converter: 110‐240Vac Power |
| With 521B converter: 18‐36V DC Power |
| With W800L/W800W: Battery Power |
Remote version
| In wall mount version with 211B converter (110240Vac) or 221B converter (18‐36V DC) |
| With W800F converter: Battery Power |
| Measurement range | ‐12...+12 m/s / ‐40...+40 ft/s |
Measuring accuracy | Reference conditions | Flow conditions similar to EN 29104 |
| Medium: Water |
| Electrical conductivity: ≥ 300 μS/cm |
| Temperature: +10...+30°C / +50...+86°F |
| Inlet section: ≥ 5 DN |
| Operating pressure: 1 bar / 14.5 psig |
Flow Meter Accuracy
| Standard: 0.5% of rate |
| Optional: 0.2% of rate |
Materials Sensor housing
| Sheet steel, polyurethane coated |
| Other materials on request |
| Measuring tube | Austenitic stainless steel |
Flanges
| Carbon steel, polyurethane coated |
| Other materials on request |
Liner
| Standard |
| DN10...40: F46 |
| DN50…300: PTFE or Hard Rubber |
| DN300...2200: Hard rubber |
| Connection box (only remote versions) | Standard: polyurethane coated die‐cast aluminum |
Measuring electrodes
| Standard: Stainless steel 316L |
| Option: Hastelloy C, titanium, tantalum |
| Other materials on request |
Grounding rings
| Standard: Stainless steel |
| Option: HastelloyC, titanium, tantalum |
| Grounding electrodes (option) | Same material as measuring electrodes. |
Our other related products: Level gauges, flow meters, pressure transmitters, indicators, industrial system.Welcome to contact if have enquiry.--------------------------------------------------------------------------------Thanks and Best wishes,Jenny ZhaoGeneral ManagerTianjin U-ideal Instrument Co., LtdAdds: Tianjin, China web: you-ideal.comTel: +86 22 88971536 Mobile: +86 13072030856
Hebei Xukang Meter Manufacturing Co., Ltd (Tianjin U-ideal Instrument Co., Ltd) is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.
Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.
Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.
Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.
Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge
Welcome to contact us, we will reply you in 24hours.
