| Prod Model: |
LK10A222-1 |
| Fiber Counts: |
96cores |
| Transmission Medium: |
Multimode |
| Structure: |
MT |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
APC |
| Brand: |
Lulink or OEM |
| Shape: |
Dome |
Product Description

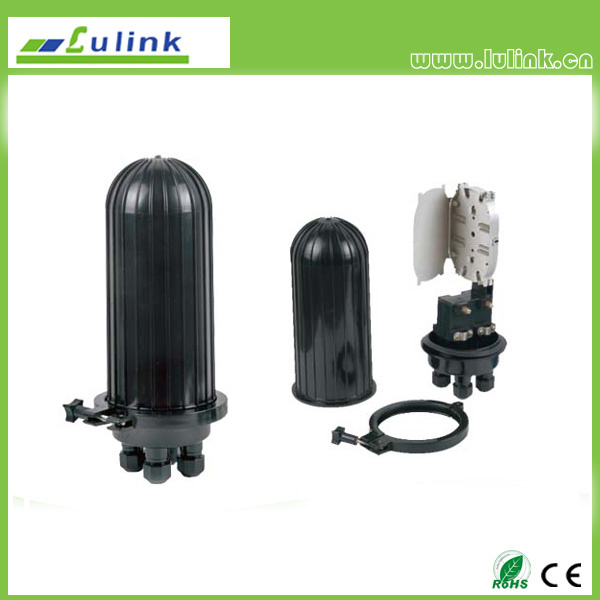

Fiber Optic Splice Closure, Fiber Optic Closure, Fiber Optic Joint Box, FOSC, Cables Enclosures
| item | LK10A222-1 |
| name | Fiber Optic Splice Closure |
Type: Waterproof Dome two inlets/outlets
Purpose: aerial, direct-burying, wall-mounting, Pipeline laying way
external dimensions:435mm*160mm (Erect type)
Cables Entry & Exit:2Entry 2Exit
Cable Diameter (mm): Φ7-Φ15
Sealing Structure: Sticky cincture sealing
Material: ABS/PC
Weight: 2.1kg(Erect type)
Maximum capacity: 96cores
Span-life: 20 years.
Components: Seal tape, Insulation tape, Nylon tie, optical cable heat shrinkable sleeve, mental hook, seal fittings, numeral bar, retaining ring
Environmental temperature: -40ºC to +65ºC
Atmospheric pressure: 70∽106KPa
Optic property: The spare fiber coiled in the fiber emplacing device; the fiber connector won't attenuate during the FOSC installation operation period.
Seal Performance: After the closures are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.
Re-encapsulation Performance: The closures are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
Insulation resistance: ≥2X104MΩ
It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network
Uses and properties:
It is belonged to open structure airproof tie-in system of machine pressure.
It is used for the protective connection between two or more optical cables
Suitable for single core fiber optic cable and ribbon fiber optic cable
