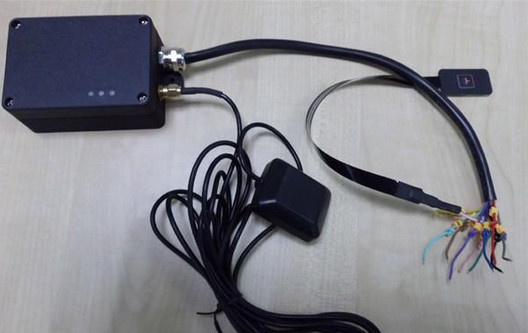

Waterproof GPS GSM GPRS Motorcycle Tracker Gmt368s Support 1 Output Switch Function Sos Alarm Tracker Built-in Memory

Prod Model:	GMT-368S
Size:	83mm X 59mm X 35mm
Place Of Origin:	Guanghdong China
Warranty:	5yeas
Weight:	100g
Band:	850/900/1800/1900MHz
Battery:	1200mA
Waterproof:	IP67
GPS Chipset:	Skytraq
Position Accuracy:	10m
Work Time:	12 Hours
Type:	GPS Tracker
Use:	Automotive

Product Description

waterproof gps gsm gprs motorcycle tracker GMT368S Support 1 Output Switch Function SOS alarm tracker Built-in Memory



The device has the following features and functions:

Waterproof (IP67)
SMS and GPRS TCP/UDP Communication
Support setting 3 authorized cell phone numbers
Track on demand
Track by time interval
Geo-fencing control
In-build backup battery
SOS button for immediate rescue and alarm
2 digital outputs, 3 digital inputs and 2 analog inputs
Speed limit alarm
No GPS signal alarm
Low battery alarm
Vibration alarm
Data Logger in no GSM signal area
Power saving mode


Connecting and installation
Please read this manual before using TRACKER and check if all parts are included in the packaging box.

4.4.1 Ensure that your TRACKER has a working SIM card.
Check that the SIM card has not run out of credit (Test the SIM card in a phone to make sure it can send and receive SMS).

Check that lock code of the SIM card is turned off.
If you require the function of sending an SMS location report to the authorized phone number when it makes a call to the TRACKER, please make sure the SIM card installed supports displaying caller ID.

4.4.2 Insert SIM card and install backup battery and install external GPS antenna.
- Unscrew the cover of TRACKER.
- Insert the SIM card and connect the Backup Battery Connector.
Put back the cover and screw it up.

4.4.3 First use of TRACKER, please charge the backup battery at least 3 hours (8 hours suggested). And you should test the related functions before installing the TRACKER to motorcycle or car.

4.4.4 Install TRACKER to motorcycle or car
- Find a suitable place for installing TRACKER, make sure the front-cover face sky, check if all wirings have been connected correctly and then connect the unit to the motorcycle or car battery.
Note: TRACKER should not be covered or shielded by any object containing metal.
Note: Wiring connections must be firm and reliable and the joints should be wrapped with insulating tape tightly. The unused electrical wire should be properly insulated.
- Make a missed phone call the TRACKER using a mobile phone to check if the calling can go through.


Standard Packing:

GMT368S Main body
Special-USB-cable
Gps antenna
CD
Optional Accessories:


Oil sensor $35
Relay $4

Items	Specification
Power Supply	DC  7 - 36 V/ 3A
Backup  Battery	Rechargeable  1 2 00  mA h  battery (3.7V),
Normal Power Consumption	50mA/h
Dimension	83mm  X  59mm  X  35 mm
Weight	100 g
Operating  T emperature	-20° C  to 55°C
Humidity	5% to 95% Non-condensing
GSM  M odule	Quad Band GSM 850/900/1800/1900Mhz
GPS Chipset	L atest GPS chipset
GPS Sensitivity	-159 dB
GPS Frequency	L1  1575.42MHz
C/A Code	1.023 MHz chip rate
Channels	20 channel all-in-view tracking
Position Accuracy	< 15 M  2D RMS
Velocity Accuracy	0.1 M/S
Time Accuracy	1 us synchronized to GPS time
Reacquisition	0.1 ms
Hot  S tart	1 sec ., average
Warm Start	35 sec ., average
Cold Start	37 sec ., average
Altitude Limit	18,000 meters (60,000 feet) max.
Velocity Limit	514 meters/second (1000 knots) max.
Acceleration Limit	Less than 4g
Work  T ime  using backup battery	12 hours in normal mode and 5 5  hours in power-saving mode
Memory	32M-BIT  flash memory
LED	3 LED lights to show power, GPS, GSM and other status
Button	One   SOS  button for making phone calls   and sending SMS
Interface	2 digital  output s 3  digital inputs 2   analog  inputs
