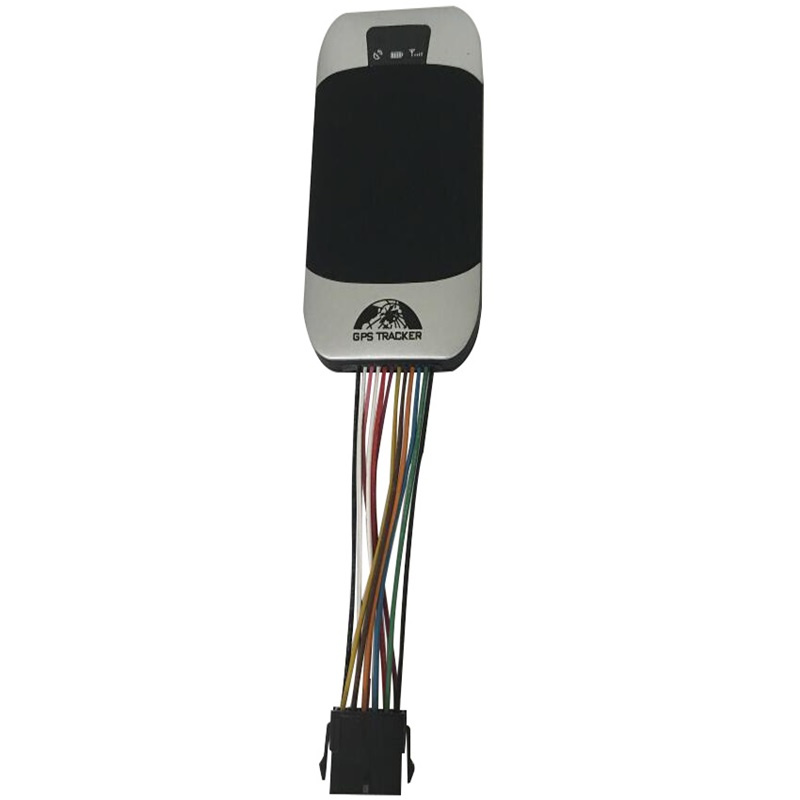

Waterproof IP55 Real Time GSM GPRS GPS Tracker Tk303f GPS303f Handheld and Vehicle Tracking Device

Waterproof IP55 Real Time GSM GPRS GPS Tracker Tk303f GPS303f Handheld and Vehicle Tracking Device

Used widely for vehicles and other moving objects tracking

Compact,elegant appearance, easy to hide,, and outdoor installation

Built-in GSM, GPS antenna

Support GPS and LBS (location based service) double tracking solution

Support SMS / GPRS / Internet Network data transmission

Support configures the settings remotely

Set multiple functions of security, tracking, monitoring surveillance,

emergency alarms and management in its entirety

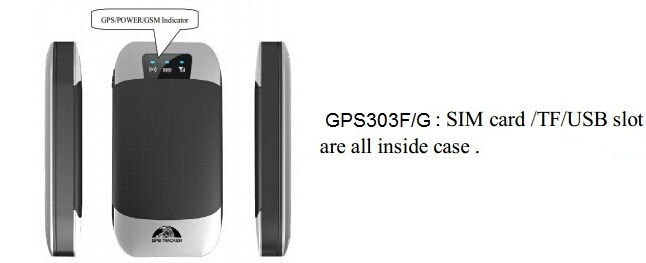

Hardware Description:




Wiring Diagram:

Find the 12 PIN harness and insert it into the corresponding holes of the products, and connect the wires with the original car circuit showing below:

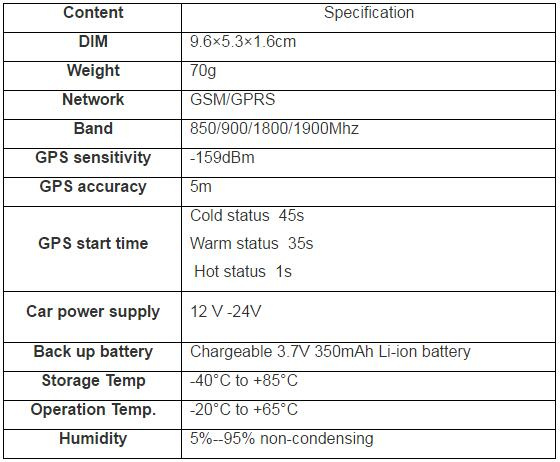

Specifications:




Main Features

1.Input sim card, Turn on the device, Support to set 5 admin number monitor the GPS device.

2. Single Locating

3. Auto track continuously

4. Turning points update automatically

5. GPS drift suppression

6. Exact street address

7. Location based service (LBS) /Cell-ID Locating

8. Monitor

9. Data logging

10. Data load

11. Forward the third parties' message

12.SIM card balance inquiry

13. ACC working alarm

14.Cut off the oil and power system

15.Function of Remote Controller (Option, for model 303G ONLY )



16.Arm

17.Silent Mode

18.Disarm

19.Decide how many times of alarm message

20.Low battery alarm

21.External Power off alarm

22.GPS blind Spot alert

23.SOS

24.Geo-fence

25.Multi-area management

26.Movement alarm

27.Over speed alarm

28.Fuel Alarm

24.Alarms under ARM State:

   Door Open Alarm;

   ACC alarm;

   Built in Acceleration Sensor Alarm;

    Alarm without GSM network service

25. Sleep Mode:sleep by time,sleep by shock sensor,deep sleep by shock sensor, no sleep mode

26.Start Work on specific time

27.Check IMEI

28.Check the Vehicle State

29.Set up Terminal (local) Time

30.Reset Hardware

31.Configure parameters by USB

32.TCP/UDP Switch

33.Activate "Fuel" value in GPRS data

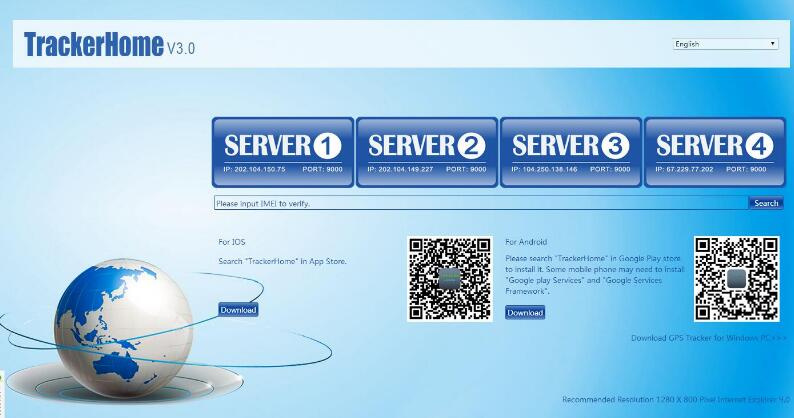

   Web platform  ( 10 years free!! )
