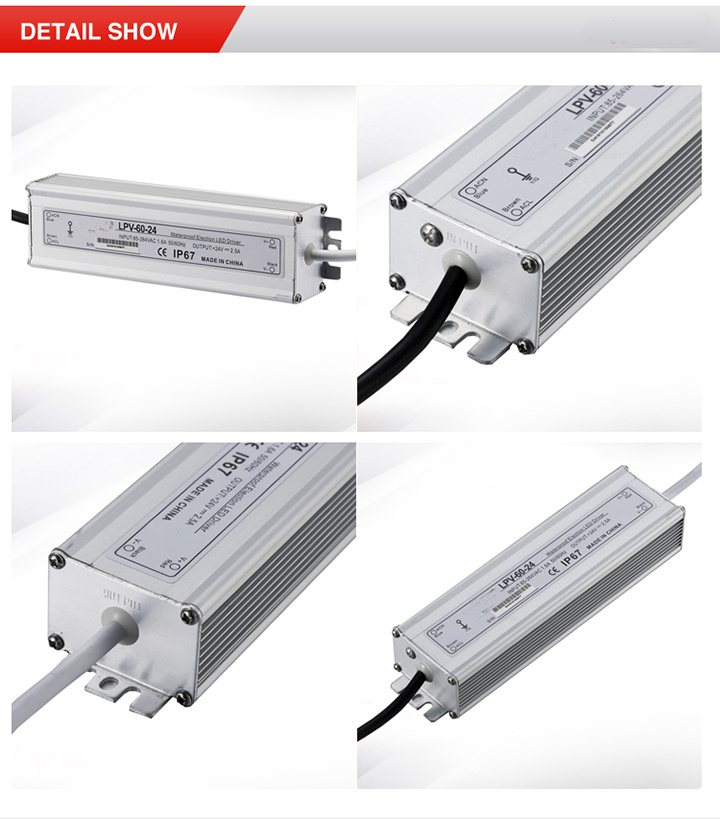

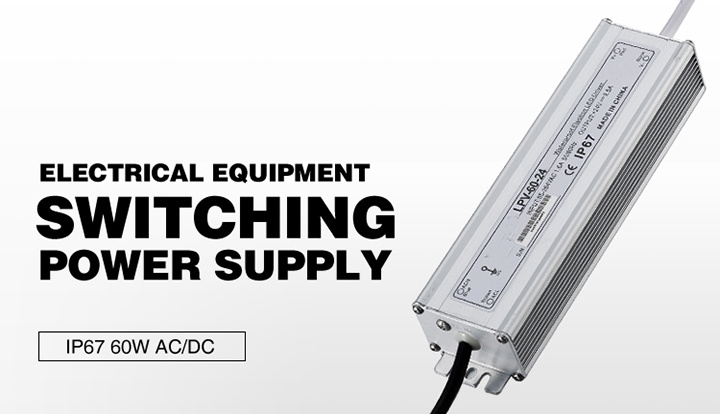

Waterproof IP67 60W Switch Power Supply 12V with Ce/RoHS, LED, IP67

Name: Waterproof IP67 60W Switch Power Supply 12V with Ce/RoHS, LED, IP67
Brand: all-electronics-online.com
SKU: 840164585
Availability: InStock
Rating: 4.9 (48 reviews)

Price:	US $ 10-11/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPV-60
Output Type:	Single
Warranty:	1 Year
Output Power:	51 - 100W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

60W waterproof Switching Power Supply

Features:

1. DC Output 5v 12v 24v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 12 months warranty

Specifications:

Waterproof IP67 60w switch power supply 12v with CE/RoHS

Model	LPV-60-12	LPV-60-15	LPV-60-24	LPV-60-48
Dc output voltage	12V	15V	24V	48V
Rated output current	5A	4A	2.5A	1.3A
Output current rage	0~5A	0~4A	0~2.5A	0~1.3A
Rated Power	60W	60W	60W	62.4W
Wave and noise	100mVp-p	150mVp-p	150mVp-p	150mVp-p
Efficiency	81.0%	83.0%	83.0%	84.0%
AC input voltage range	AC85~264V 47~63Hz;254~373VDC
Input current	1.6A/115V 0.85A/230V
AC INnrush current	Cold-start 30A/230V
Overload proctection	105%~150% Potection type: Hiccp mode,recobers automatically after condition recoverd
	Potection type :Shut down o/p voltage,re-power on to recover
Setup rise time	500ms,20ms/230VAC 500ms,20ms/115VAC at full lod
Hold up time	24ms/230VAC ,24ms/115VAC at full lod
Withstand voltage	I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,O/P-FG: 0.5KVAC
Isolation resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH
Working temperature	-10°C~+50°C
Overall dimension	1904838mm
EMC standards	Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B
Weight	0.78Kgs
