| Prod Model: |
LPV-50-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Frequency: |
47-63Hz |
| Output Voltage: |
12V/24V/48V |
| Output Power: |
1 - 50W |
| OEM: |
Accepted |
| Usage: |
Vehicle |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Brand: |
Jyins |
Product Description

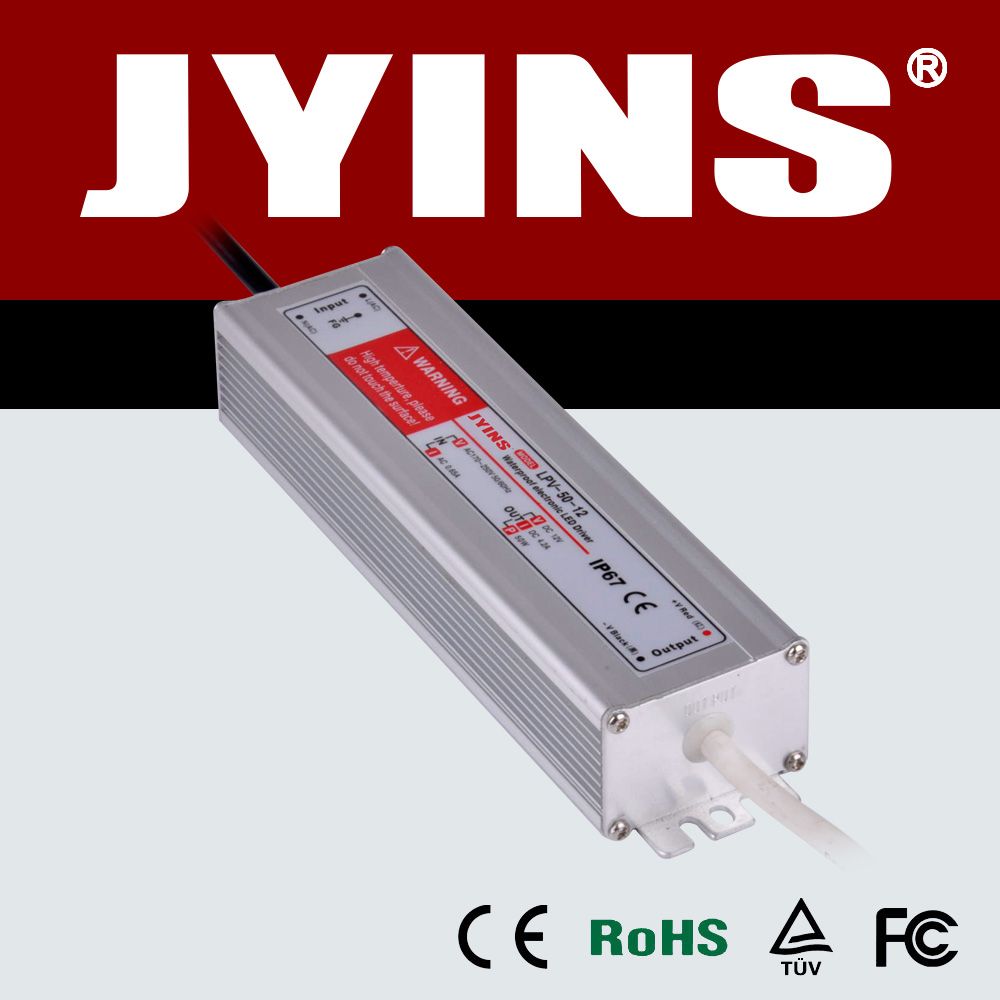

Waterproof power led transformer led driver (LPV-50-12 )
Standards and certifications:
The Jingying series of led transformer / led driver is produced on the standard of GB/T7676-1998, and the power transformer is on the standard of GB/T22264-2008. Its safety performance is on the standard of GB4793 and IEC61010. The dial scale line and the pointer is designed to meet the German standards of DIN43790 and DIN43802. The shape and hole size of the meter is on the standards of GB/T1242 and IEC61554. All the products of Jingying meters Company have gone through the national CE certification, and have got ISO: 9001 certification.
Packaging & Delivery
Packaging Details: Standard export carto
Delivery Detail: 1-3weeks
Specifications
CE Approved
Reliable Quality/High Efficency
To be your nice partner with good price
Waterproof power led transformer led driver (LPV-50-12 )
Connection: 30cm wire
L, N: AC Input
-V: DC output negative terminal
+ V: DC output positive terminal
AC input voltage range: 170-264VAC 47-63HZ
Input current: 0.65A/230V
AC inrush current: Cold-start current 36A/230V
Leakage current: <1mA/240VAC
Over load protection: 105-150% hiccup mode, auto-recovery
Water level: IP68
Setup rise lold up time: 200ms 100ms 20ms
Withstand voltage:
I/P-O/P: 1.5KVAC 1minute
I/P-FG: 1.5KVAC 1minute
O/P-FG: 0.5KVAC 1minute
Working temperature:
0-40° C@100%put
-10-40° C@80%put
50° C@60%put
type | Output | Error | Range | Efficiency |
| LPV-100-12 | 12V,0-8.3A | ±1% | 100mV | 81% |
| LPV-100-15 | 15V,0-4.2A | ±1% | 100mV | 81% |
| LPV-100-24 | 24V,0-2.8A | ±1% | 100mV | 84% |
| LPV-100-48 | 48V,0-2.1A | ±1% | 100mV | 84% |
NOTE:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be reconfirmed that it still meets
EMC directives.
5. If the power supply is short-circuited under no load, it will recover automatically when short-circuit is removed. |
