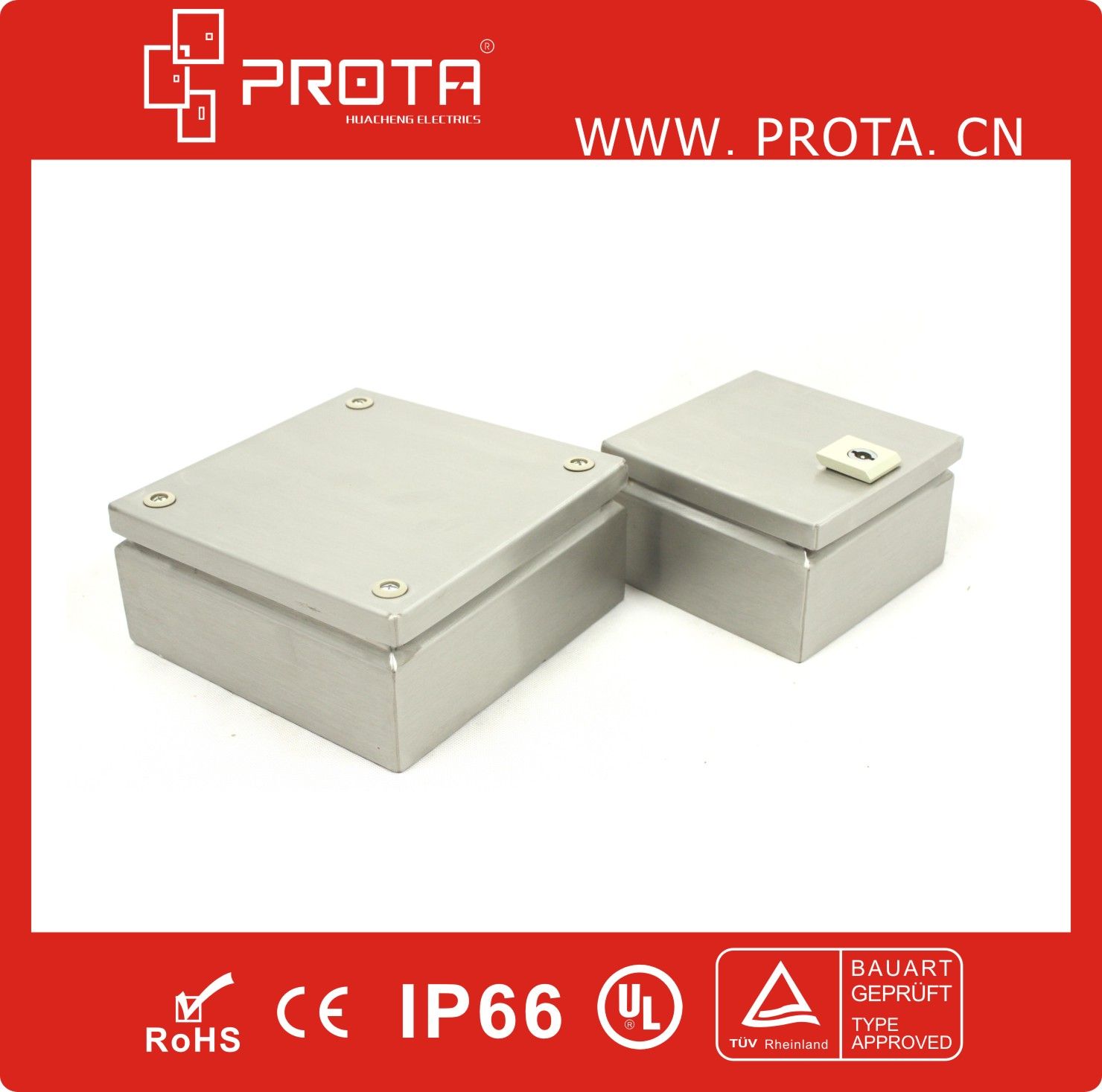

Waterproof Push Button / Terminal Box
| Price: |
US $ 10-50/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
PB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Ral 7032/Ral 7035/Customize |
| External Size: |
150X150X80mm~800X300X155mm |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Application Range: |
Electrical Distribution |
| Shell Protection Grade: |
IP66 |
| Brand: |
Porta |

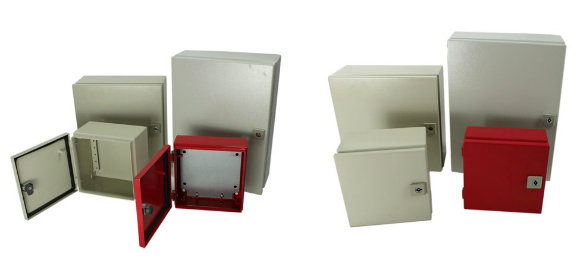

Product Description
Standard Configuration:
Material:1.2mm cold rolled sheet steel
Surface:epoxy thermosetting powder coating,textured finished.
Color:RAL 7032/RAL 7035/RAL 2000/RAL 9002/X15 Orange/Customized
Protection degree:IP66

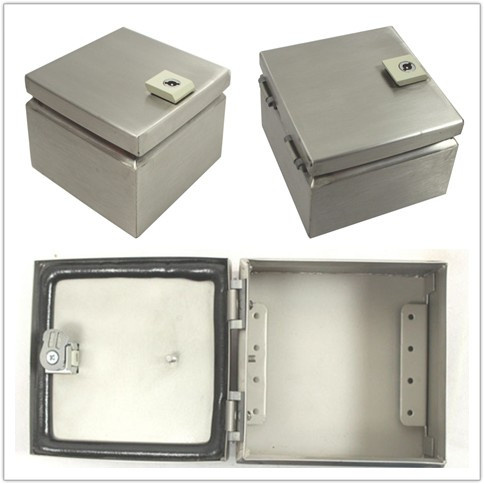

Craftsmanship:
1,Special hinges ensure the maximum opening angle of 180 degrees.
2,The slot of the body strengthens the enclosure itself, also prevents the dust and the water when enclosures are opened,
3,The galvanized mounting plate applies as wring, and provides larger installation spaces.
4,The PU foam sealing gasket ensures the box the protection garde of IP66.
Selection Table| Modle No. | H(mm) | W(mm) | D(mm) |
| PB15158 | 150 | 150 | 80 |
| PB151512 | 150 | 150 | 120 |
| PB20158 | 200 | 150 | 80 |
| PB201512 | 200 | 150 | 120 |
| PB20208 | 200 | 200 | 80 |
| PB202012 | 200 | 200 | 120 |
| PB30158 | 300 | 150 | 80 |
| PB301512 | 300 | 150 | 120 |
| PB30208 | 300 | 200 | 80 |
| PB302012 | 300 | 200 | 120 |
| PB303012 | 300 | 300 | 120 |
| PB401512 | 400 | 150 | 120 |
| PB40208 | 400 | 200 | 80 |
| PB402012 | 400 | 200 | 120 |
| PB403012 | 400 | 300 | 120 |
| PB404012 | 400 | 400 | 120 |
| PB502012 | 500 | 200 | 120 |
| PB503012 | 500 | 300 | 120 |
| PB60208 | 600 | 200 | 80 |
| PB602012 | 600 | 200 | 120 |
| PB604012 | 600 | 400 | 120 |
| PB802012 | 800 | 200 | 120 |
| PB804012 | 800 | 400 | 120 |
Other sizes avaliable onrequest .Cut-outs and drilled holes to your specifications. Should you have any questions or problems, ple4se contact with us.
Packing and Shipping
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
Company Information
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.
Our products sell well in international markets such as the U.S., Canada, South America, Southeast Asia, the Mid East, India, Africa, etc.
we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our customers.
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.
We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
