Waterproof RF 8 Keys RGB Controller

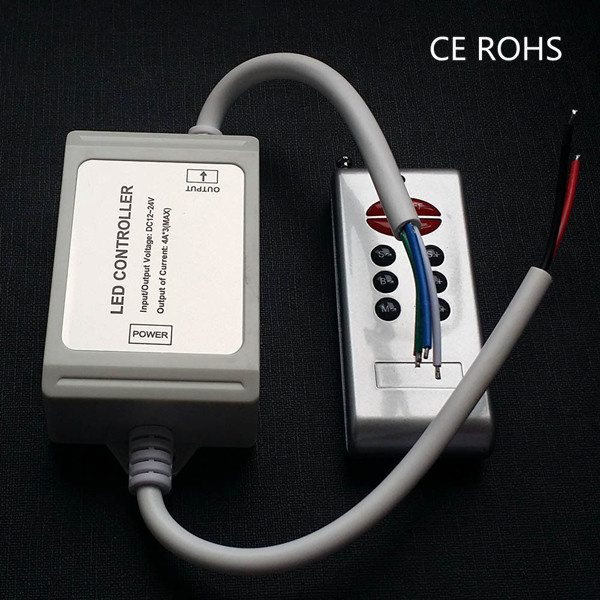

Name: Waterproof RF 8 Keys RGB Controller
Brand: all-electronics-online.com
SKU: 801790445
Availability: InStock
Rating: 4.3 (120 reviews)

Price:	US $ 6.40-6.5/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-8
Net Weight:	150g
IP Rating:	IP68
Static Power Consumption:	<1W
Working Temperature:	-20 - 60
Application:	Toys
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Battery Type:	Button Battery
Voltage:	DC12V~24V
Material:	Iron

Product Description

Basic Info

place of origin:	Shenzhen,China	brand name:	louita	IP Rating:	IP68
Output power:	12V:<144W, 24V:<288W	Output current:	<4A/CH	Connection mode:	Common anode
Static power consumption :	<1W	Controller's dimension:	L95W53H30mm

Product Description

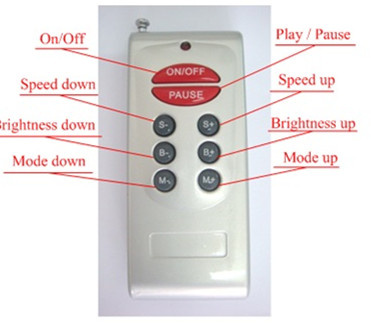

Plastic RF 8 Keys RGB controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with easy connection,simple manipulation and power off memory function.User can choose the 7 color jump, fade,fash mode ,and the lights brightness are adjustable according to the user actual requirement.The controller section with waterproof, waterproof rating of IP68.

Technical Parameter

Working temperature:-20~60ºC

Supply voltage:DC12V~24V

Output:3 Channel

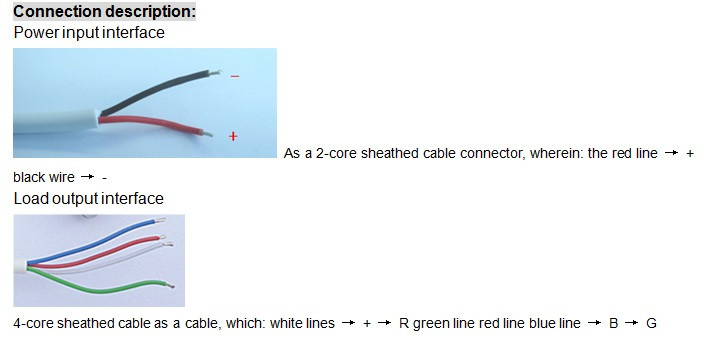

Connection mode:Common anode

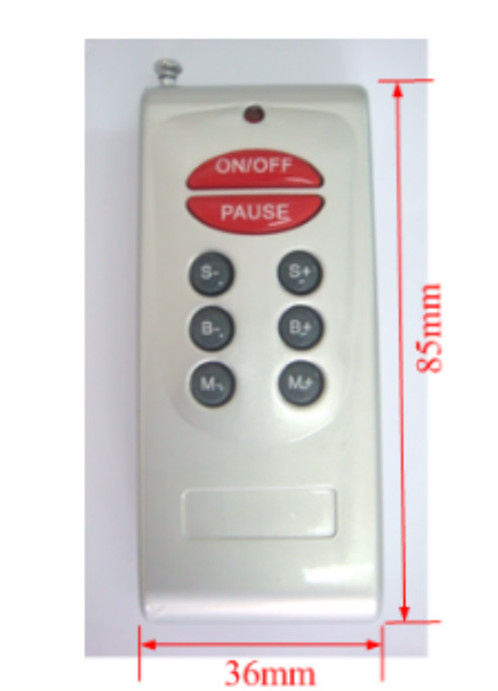

Controller size:L85×W45×H23mm

Net weight:88g

Static power consumption:<1W

Output current:<4A/CH

Output power:12V:<144W, 24V:<288W

Projects

Packaging & Shipping

With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.

Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.

Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
