Waterproof Rg11 Compression Connector
| Price: |
US $ 0.4-0.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
RG11 Compression CATV Connector |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: |
F |
| Impedance: |
75ohm |
| Length: |
18mm or 20mm |
| Bandwidth: |
0~1000MHz |
| Model Number: |
Rg11 CATV Compression Connector |
| Material: |
Brass with Nickel Plating |
| Certification: |
CE,FCC,RoHS |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
| Brand: |
Daytai |
Product Description

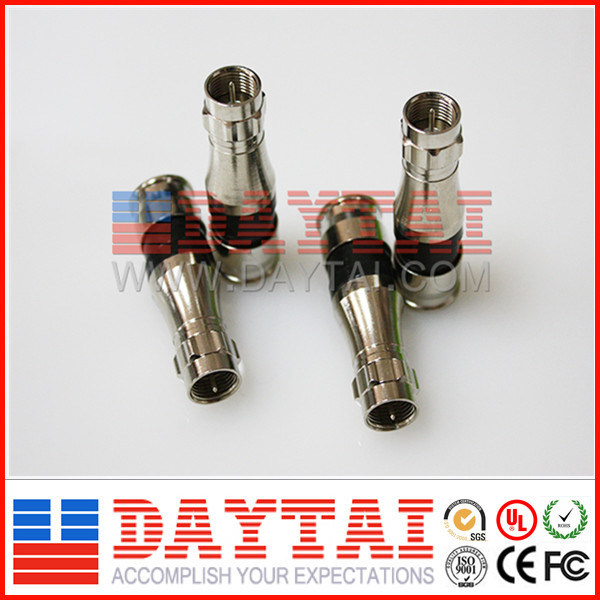

Compression CATV Connector for RG11 Coaxial Cable
A. RG11 F Compression CATV Connector Specifications
CATV Connector, RG11 Male CATV Compression
Connector suitable for RG11 Coaxial cable
B. RG11 F Compression CATV Connector Features:
1. Excellent insertion /withdrawal characteristics.
2. Easy installation
3. Material: Brass and nickle plating
4. OEM accept
5. Can do waterproof with O ring
6. Application: Telecom, Radios, Broad cast, Coaxial cable, CATV
C. Business Scope: ( RG11 Compression CATV Connector)
We deal with all connector: TV connector, TV jack connector, antenna connector, coaxial connector, F connector, RF connector, CATV connector, BNC connector, catv f connector...Etc. All production are cheaper than other company. Meanwhile, our pruduction are high-qualty. There are so many choice in our company.
D. Technical Characteristics of RG11 Compression CATV Connector
| Frequency Range | DC~1000MHz |
| Working Voltage | 335V max |
| Withstand Voltage | 750V rms |
| Contact resistance |
| Center Contact | ≤ 10 mΩ |
| Outer Contact | ≤ 5 mΩ |
| Insulation resistance | ≥ 1000 MΩ |
| Durability(mating) | ≥500(cycles) |
| Temp.range | -50~+60°C |
