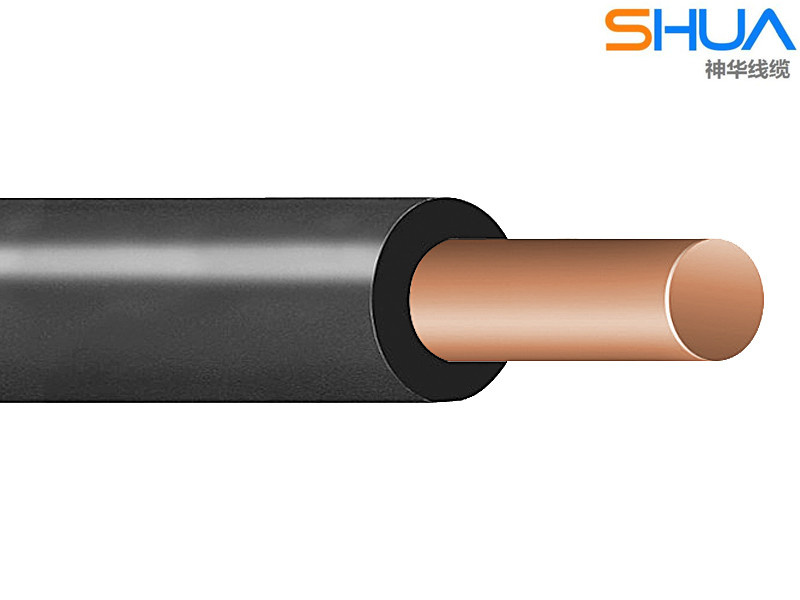

Weather Proof Wires and Cables (WP)

Name: Weather Proof Wires and Cables (WP)
Brand: all-electronics-online.com
SKU: 733212925
Availability: InStock
Rating: 4.4 (135 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Operation Tension:	600 V
Maximum Conductor Operation Temperature:	75°c
Insulation Color:	Black
Delivery Date:	15 Days or Depend on Your Quantity
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Application:	Low Tension Electrical Power Distribution Systems
Certification:	CE
Insulation Material:	Pead

Product Description

General description
Conductor that can be a half-hard copper wire or cable with High Density Polyethylene (PEAD) thermoplastic isolation in black.

Main applications
Weather proof wires and cables are general usage products in low tension electrical power distribution systems
Characteristics
Maximum operation tension: 600 V.
Maximum operation temperature in the conductor: 75° C
Half-hard temper cooper conductor.
They are manufactured in gages:
Wire from 3, 307 to 33, 62 mm2 (12 to 2 AWG ).
Cable from 8, 367 to 107, 2 mm2 (8 to 4/0 AWG).
Black tinted isolation that makes it sunlight resistant.

Advantages
Their half-hard temper allows them to support the installation tension and greater wiring lengths.
Their polyethylene isolation allows them to resist abrasion with tree branches.
Sunlight and weather resistant.

Note: These cables are available upon request, in aluminum alloy 1 350 or aluminum cable steel reinforced (ACSR).

No existen especificaciones té Cnicas para este producto.
Aerial Dist. Cable (PSD) Duplex Wires and Cables TWD type Secondary Dist. Cable (DRS) 600 V / 75 ° C
Semi-Isolated Cable 15, 25, 35 kV Spiral Concentric Lay Cable
