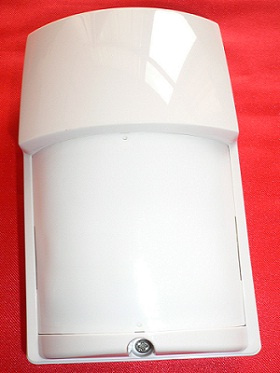

Weatherproof External Passive Infrared Motion Detector

Prod Model:	LX402
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Saling Points:	Experienced Staff & Good Price
W.T.:	0.08kg/PCS
Type:	Sensor
Installation Mode:	Contact Type
Application:	Home, Industry, Communication
Usage:	Anti-Theft

Product Description

Weatherproof External Passive Infrared Motion Detector
Description:
Weatherproof and specifically designed for short-range outdoor event-driven CCTV applications
Small size and attractive finish ensures that will blend into even most sensitive areas
Wide angle and long-range options offer flexibility and advanced features such as sensitivity and range adjustment
Built-in light sensor provides day and night modes and further adds to flexibility
Ingenious mirror assembly allows sensor to provide pet alley configuration, while inclusion of OPTEX patented double conductive shielding ensures sensor is highly resistant to interference from foreign light sources such as sun and car headlights
Patented double conductive shielding
Selectable detection patterns (pet alley or multilevel)
Area masking strips
Sensitivity selection switch (high, mid and low)
Selectable pulse count (test or 2)
Day and night modes
Standard model: 12x15m
Detection model: Passive infrared
Detection area: 40x50ft (12x15m) 120° Wide
Coverage:
Multilevel area: 40 zones
Pet alley area: 18 zones
Mounting height: Multilevel area: 8.3ft (2.5m) (maximum)
Pet alley area: 4 to 5ft (1.2 to 1.5m)
Detection speed 1 to 3.3ft/second (0.3 to 1.0m/second)
Sensitivity adjustment selectable: 3 position (H, M and L)
LED indicator: LED lights during detection
Alarm period: 2± 1 second (delay timer)
Alarm output: NC. NO 28V DC 0.2A (maximum)
Tamper switch: Opens when cover removed
Pulse count: 2 (205 second) or TEST (1pulse)
Day/night mode adjustment: 10 to 100, 000 lux (approximately)
Warm up period: 60 second (approximately)
Power input voltage: 10.8 to 13.2V DC
Current draw: 25mA (maximum)
Mounting: Wall (indoor/outdoor)
Operating temperature: -20 to 50° C
Environment humidity: 95% (maximum)
Weight: 6.0oz (170g)
IP rating: 54
Accessories: Masking strips, mounting screw and sponge
