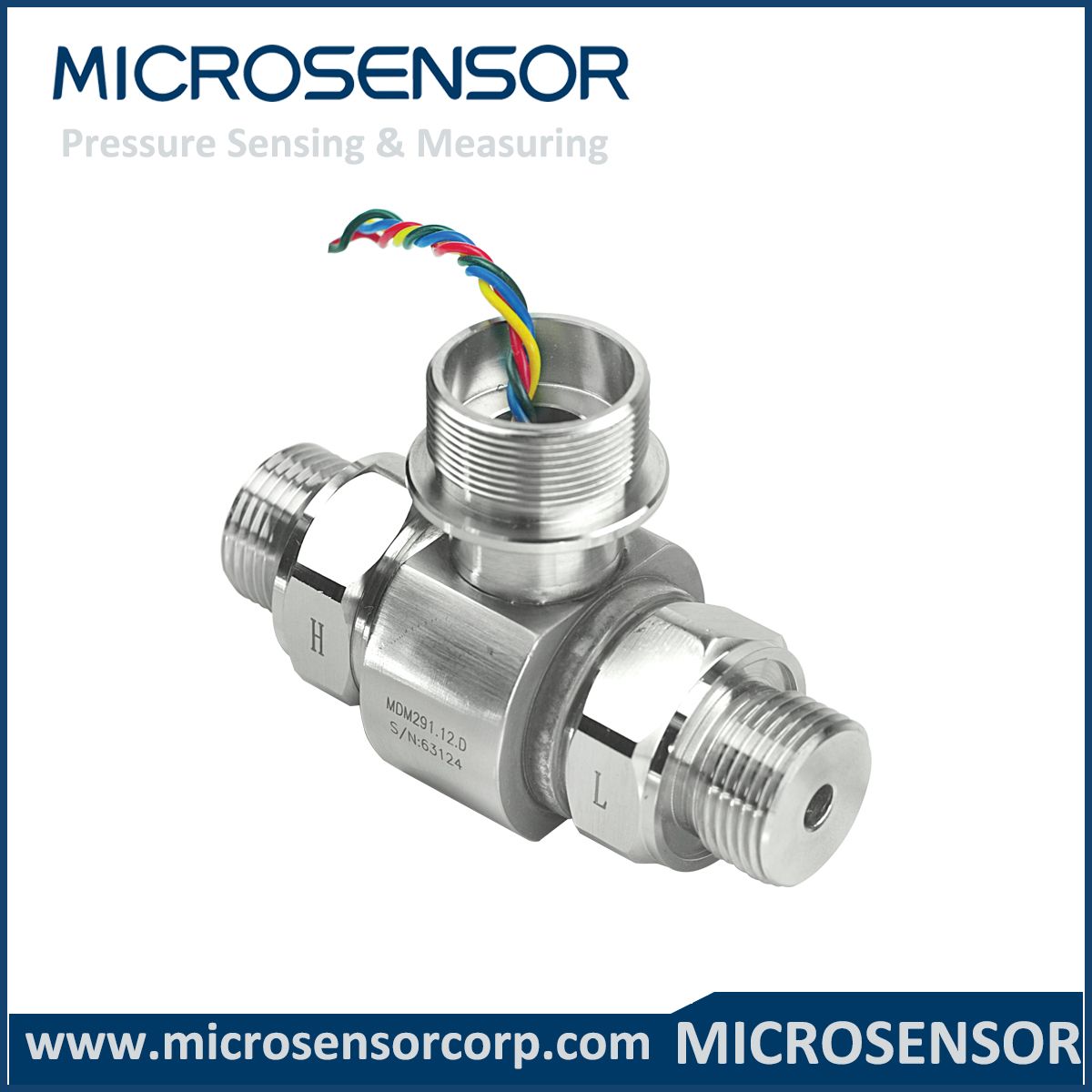

Welded Water Differential Pressure Sensor (MDM291)

Name: Welded Water Differential Pressure Sensor (MDM291)
Brand: all-electronics-online.com
SKU: 741827635
Availability: InStock
Rating: 4.9 (139 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MDM291
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	0~35kpa...2MPa
Housing:	Stainless Steel
Compensated Temp:	0~70c
Operation Temp:	-40~125c
Storage Temp:	-40~125c
Weight:	355g
Long Term Stability:	0.3%Fs/Y(Typ.)
Shock:	100g,10ms
Media Temp:	35+1c
High Static Pressure:	20MPa
Type:	Differential Pressure Sensor

Product Description

Welded Differential Pressure Sensor MDM291

Features:
1.     All welding construction;
2.     SS316L;
3.     Constant current power supply;
4.     High static pressure 20MPa

Applications:
1.     Differential pressure measure;
2.     Pressure calibrator;
3.     Gas, liquid pressure measure;
4.     Pressure checking meter;
5.     Industrial process control

Description:
MDM291 Welded Differential Pressure Sensor is an OEM differential pressure measure element using stainless steel isolated diaphragm, all welding construction and having no O-rings. This OEM product has been produced in advanced production line, through automatic tested and compensated, so it has good temperature feature. It can be widely used in industrial process to measure differential.

Specifications:

Specification	Min.	Typ.	Max.	Unit
Non-Linearity			±0.20	%FS,BFSL
Repeatability		±0.05	±0.075	%FS
Hysteresis		±0.05	±0.075	%FS
Zero Output			±2	mVDC
Full Span Output	20			mVDC
Zero Thermal Error		±0.5	±0.5	%FS,refer to midst temperature
FS Thermal Error		±0.5	±0.5	%FS,refer to midst temperature
Compensated Temp. range	-20~50			ºC
Working temp. range	-40~120			ºC
Storage Temp.range	-40~120			ºC
Long term Stability		±0.3	±0.5	%FS/year
**Testing at basic condition
**Code 0A :Max. Zero and FS thermal Error: ±1%FS(refer to midst temperature)

Order guide:

MDM291	Piezoresistive OEM Differential Pressure Sensor
	Range Code	Pressure range	Positive Overpressure		Negative Overpressure
	0A	0~35kPa	70kPa		35kPa
	02	0~70kPa	150kPa		70kPa
	03	0~100kPa	200kPa		100kPa
	07	0~200kPa	400kPa		200kPa
	08	0~350kPa	700kPa		350kPa
	09	0~700kPa	1400kPa		700kPa
	10	0~1MPa	2.0MPa		1.0MPa
	12	0~2MPa	4.0MPa		1.0MPa
		Code	Temperature Compensation Mode
		L	Laser Trimming
			Code	Electric Connection
			2	4 colors silicon rubber flexible wires

MDM291 12 L 2 whole spec.
