| Prod Model: |
DX-6000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Welding Machine Electronic Tools 220V 6000 Watts |
| Rated Power: |
6000W |
| Peak Power: |
12000W |
| Input Voltage: |
DC12V/24V/48V |
| Output Voltage: |
AC110V/220V |
| Frequency: |
50Hz/60Hz |
| Display: |
LED High-Definition Digital Display |
| USB Outlet: |
5V 1A |
| Thd: |
<3% |
| Cooling Way: |
Intelligent Cooling, Built-in Cooling Block |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Application: |
Electric Razor |
Product Description

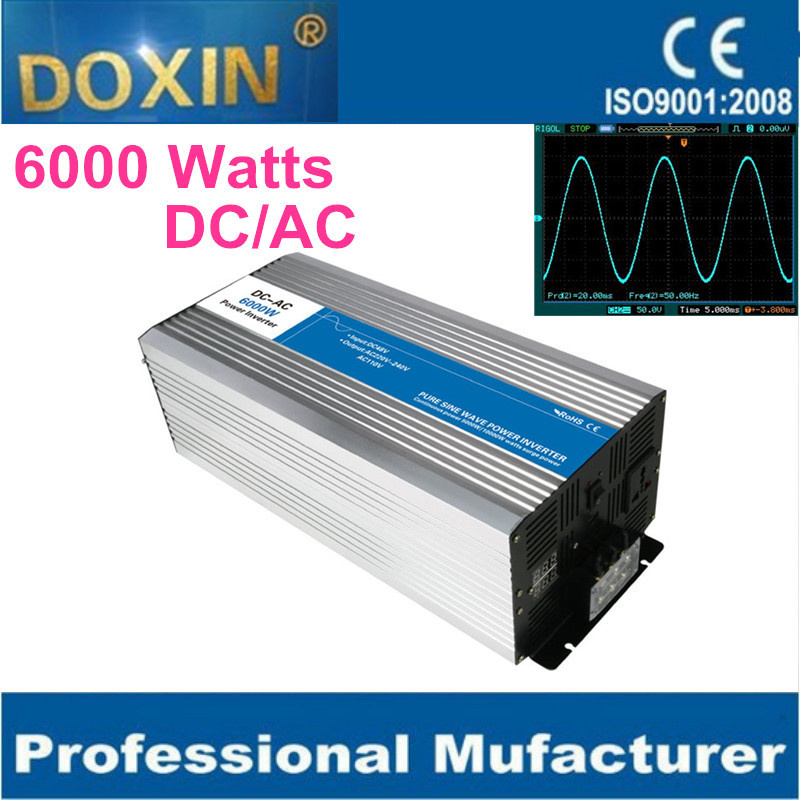

welding machine electronic tools 220V 6000 watts pure sine wave power inverter
| Model | DX-6000W |
| Output power | 6000W |
| Peak power | 12000W |
| Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| Output voltage | 100VAC or 110VAC or 120VAC ±5% | 220VAC or 230VAC or 240VAC ±5% |
| No-loadcurrent(less-than) | 1.3A | 0.7A | 0.3A | 1.3A | 0.7A | 0.3A |
| Output frequency | 50HZ±0.5HZ or 60HZ±0.5HZ |
| Output wave | Pure sine wave |
| Waveform Distortion | THD<3%(linear load) |
| Charging current | 10A/20A | 10A | | 10A/20A | 10A | |
| Transfer Time | ≤8MS |
| Battery priority | Optional/Default Battery priority |
| USB | 5V 1000MA |
| Max. working efficiency | 94.80% |
| Input voltage range | 9.55-15.5V | 19.8-30.27V | 40.2-60.4V | 9.55-15.5V | 19.8-30.27V | 40.2-60.4V |
| Operating temperature range | -10°- +50° |
| Storage temperature | -30°- +70° |
| Humidity | Max. 90%, non-condensing |
| Warranty | Two years |
| Dimensions(W*H*D) | 450*200*150mm |
| Package size | 490*240*200mm |
| Net weight/Gross weight | 11.8/12.7kg |
| Starting | bipolar soft start |
| Low voltage alarm | 10.5±0.5V | 21V±0.5V | 42V±1V | 10.5±0.5V | 21V±0.5V | 42V±1V |
| Low voltage shut down | 9.5±0.5V | 20V±0.5V | 40V±1V | 9.5±0.5V | 20V±0.5V | 40V±1V |
| Low voltage recovery | 13±0.5V | 24V±0.5V | 48V±1V | 13±0.5V | 24V±0.5V | 48V±1V |
| Over voltage shut down | 15.5±0.5V | 31V±0.5V | 61V±1V | 15.5±0.5V | 31V±0.5V | 61V±1V |
| Over voltage recovery | 14.8±0.5V | 29.5V0.5V | 59V±1V | 14.8±0.5V | 29.5±0.5V | 59V±1V |
| LED Lights | Blue indicator light (inverter output, normal operation); the red indicator flashes (under / over voltage, overload, temperature, short circuit) |
| Protection | Battery over under / over voltage, overload, temperature, AC short circuit protection (positive and negative polarity protection) |
| Fuse | DC short circuit protection |
| Display | LED high-definition digital display |
| Circuit Topology | Frequency link |
| Cooling way | Intelligent cooling, built-in cooling block |
