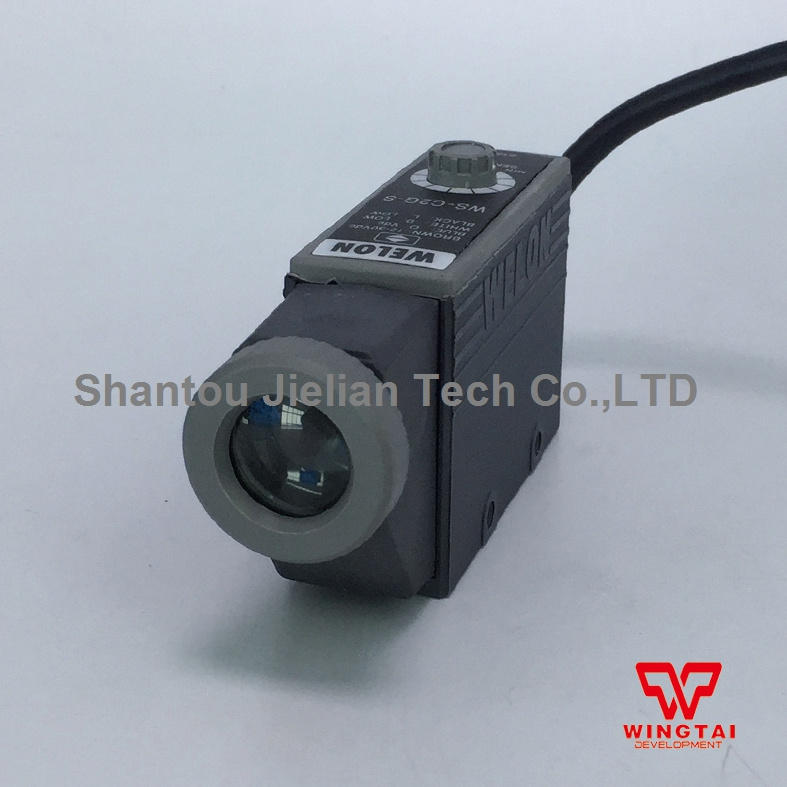

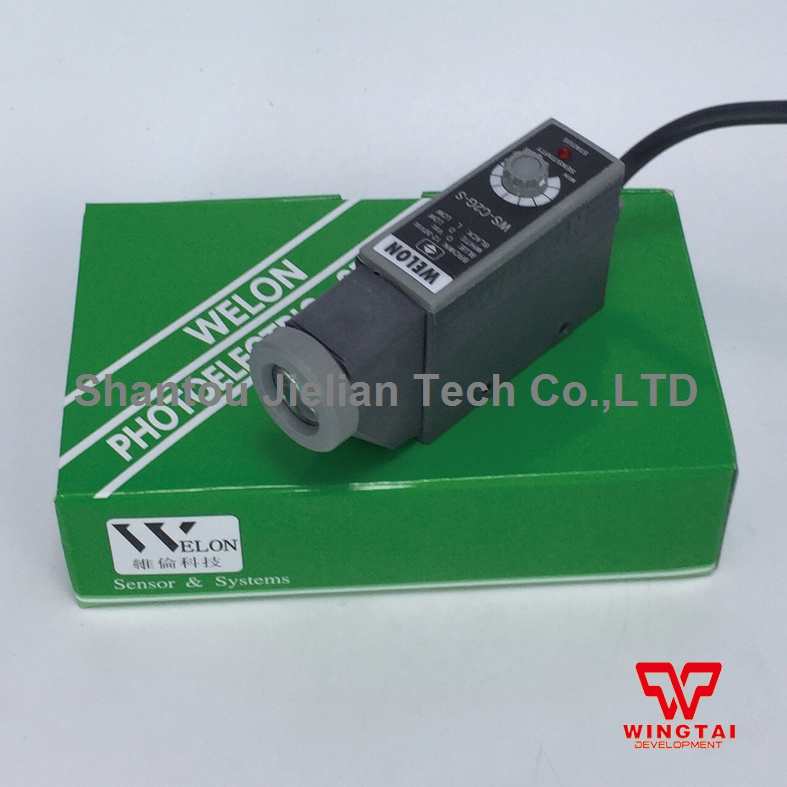

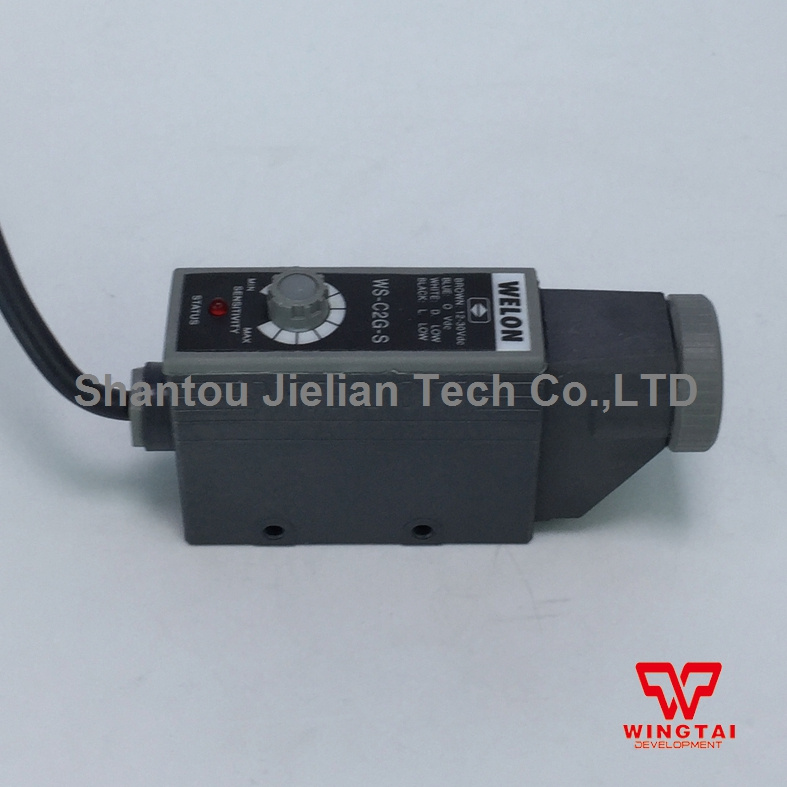

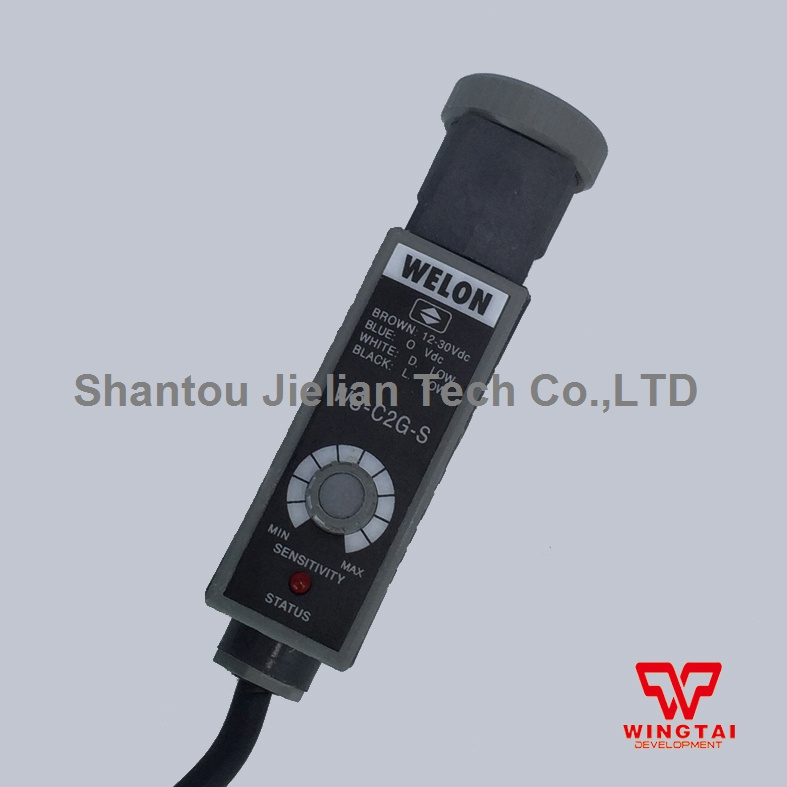

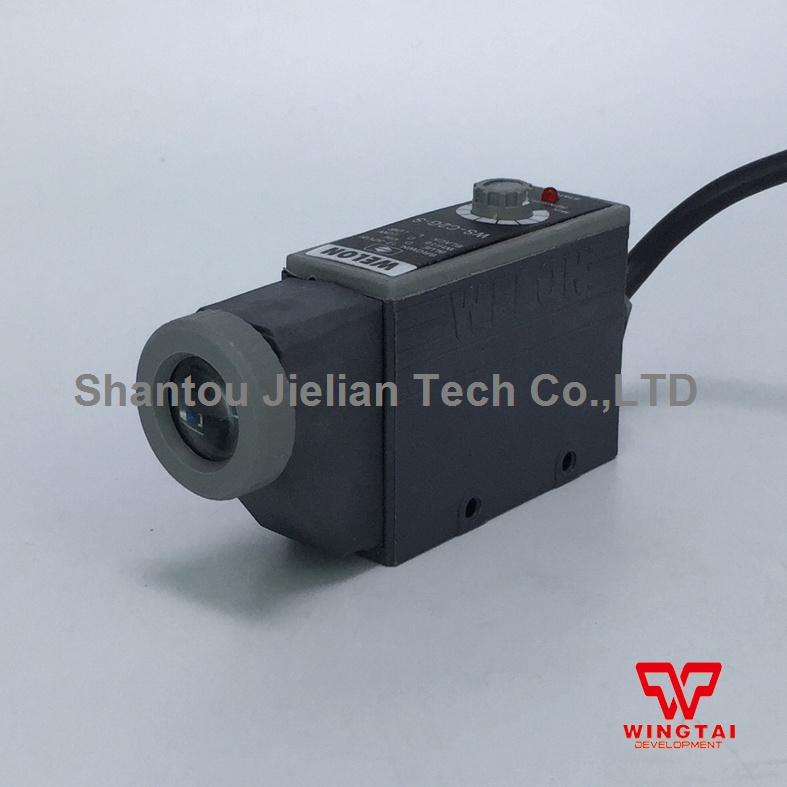

Welon Ws-C2g-S Mark Sensors 12-30 V DC
| Price: |
US $ 202-215/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
WS-C2G-S |
| Operating Voltage: |
12 - 30 V DC |
| Sealing: |
Conforming to IP66 |
| Current Consumption: |
Less Than 45 Ma |
| IP Rating: |
IP66 |
Product Description
WELON WS-C2G-S Mark Sensors 12-30 V dcThe WS series Mark Sensors use the state of the art E/O sensor module technology to optimize the color discrimination capability and use the double side SMT technology in multilayer PCBs to greatly reduce the noise level to minimum as circuit. The WSA series Mark Sensors have higher field of depth and advanced E/O sensor module design than before. Thus WS and WSA series Mark Sensors enable this series features (1) small spot size (2) very high resolution (3) economic price.
Many versions of ON/OFF type are available for customer's selection to meet their requirements. The dual color model uses UV/white LED pair, LUE/YELLOW LED pair or GREEN/RED LED pair as light sources to greatly enhance the capability of color discrimination. For economic purpose, the single color model use only WHITE or GREEN LED as light source is available.
Technical Parameters Operating Voltage | 12 - 30 V dc |
Sensing Distance | refer to model types |
Light source | light emitting diode |
Detector | silicon photo-diode |
Current Consumption | less than 45 mA |
Response Time | 0.3 mS for FAST and UV VERSION 1 mS for STANDARD VERSAION |
Indication | light-on condition energized |
Output modes | both light-on condition energized |
Circuit Protection | output short circuit reverse polarity of supply voltage |
Max. Load Currentt | 120 mA for ON/OFF type |
Housing Materials | PLASTIC HOUSING : PBT+ 30 % glass fiber Lens : optical grade glass |
Sealing | conforming to IP66 |
Wiring | ref to Output Circuit 2 meter length, UL 2464 listed |
Cable | Brown, Blue, Black,& White conductors |
ApplicationGravure printing machine, laminating machine, bag making machine, cutting machine, automatic packaging machines; This series of products have accurate, sensitive color vision ability. The shade and cursor Model.
