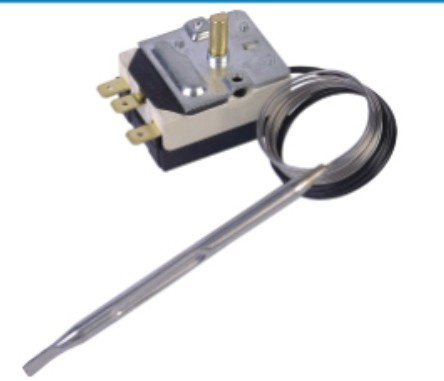

Wgb/F Series Thermostat Temperature Controller (WGB02)

Name: Wgb/F Series Thermostat Temperature Controller (WGB02)
Brand: all-electronics-online.com
SKU: 727159215
Availability: InStock
Rating: 4.3 (134 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	wgb02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	Minus 35 Degree to 320 Degree
Product Lifespan:	More Than 100000 Times
Electrical Strength:	AC2000V/1min
Minimum Current:	200mA

Product Description

Application:
Mainly used in water boiler, shower, washing machine drum, deep fryer, toaster, electric iron, fermentation tank, electric heater, a fishing pond, Western kitchen equipment, sealing machine, etc. It can also be used in products such as refrigeration and temperature controls.

Working principles, characteristics
When the controlled temperature of electrical appliances changes,expansion and contraction of the pipe makes the membrane cartridge displace to push the movable contact sheet and the contacts instant action to reach the thermostat so as to limit the temperature.
Accurate temperature control, contact capacity, adjustable temperature, stable performance, long life, less radio interference

Technical parameters

Electrical Performance	16A/AC250V 20A/AC 125V
Temperature Range	-35ºC-320°C. It can be designed according to the user's requirements.
Product's Lifespan	More than 100,000 times
Electrical Strength	AC2000V/1min
Insulation Resistance	≥100MΩ
Contact Resistance	≤50MΩ
Temperature Response Rate	≤1°C/min
Minimum Current	200mA
The main maximum tolerated temperature	T150°C
Type of Switch	S.P.S.T, S.P.D.T
