Wgs Series Thermostat Temperature Control (Wgs21)

Name: Wgs Series Thermostat Temperature Control (Wgs21)
Brand: all-electronics-online.com
SKU: 727161895
Availability: InStock
Rating: 4.3 (64 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WGS21
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Air Purifier
Certification:	TUV
Control Type:	Mechanical
Type:	Temperature Controller
Material:	Stainless Steel
Display Type:	Non

Product Description

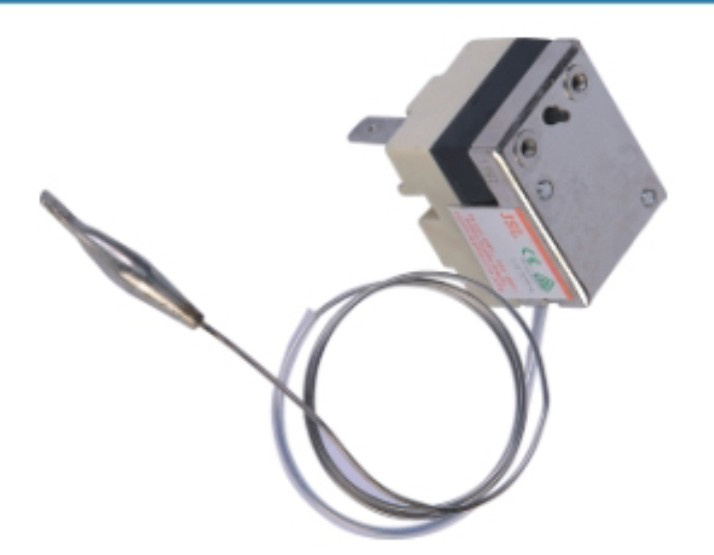

WGS Series Thermostat

Application:
Mainly used in water boiler, shower, washing machine drum, deep fryer, toaster, household electric appliances like electric control over temperature protection

Working principles, characteristics
When the controlled temperature of electrical appliances changes,expansion and contraction of the pipe makes the membrane cartridge displace to push the movable contact sheet and the contacts instant action to reach the thermostat so as to limit the temperature.
The product is accurate temperature control, contact capacity, adjustable temperature, stable performance, long life, less radio interference

Technical parameters
1.Electrical performance:16A/AC250V 20A/AC 125V
2.Temperature Range:60ºC—280°C. It can be designed according to the user's requirements.
3.Product's lifespan:More than 6000 times
4.Electrical strength:AC2000V/1min
5.Insulation Resistance: ≥100MΩ
6.Contact resistance : ≤50MΩ
7. Temperature response rate: ≤1°C/min
8. Minimum current: 200mA
10.Type of Switch : S.P.S.T
