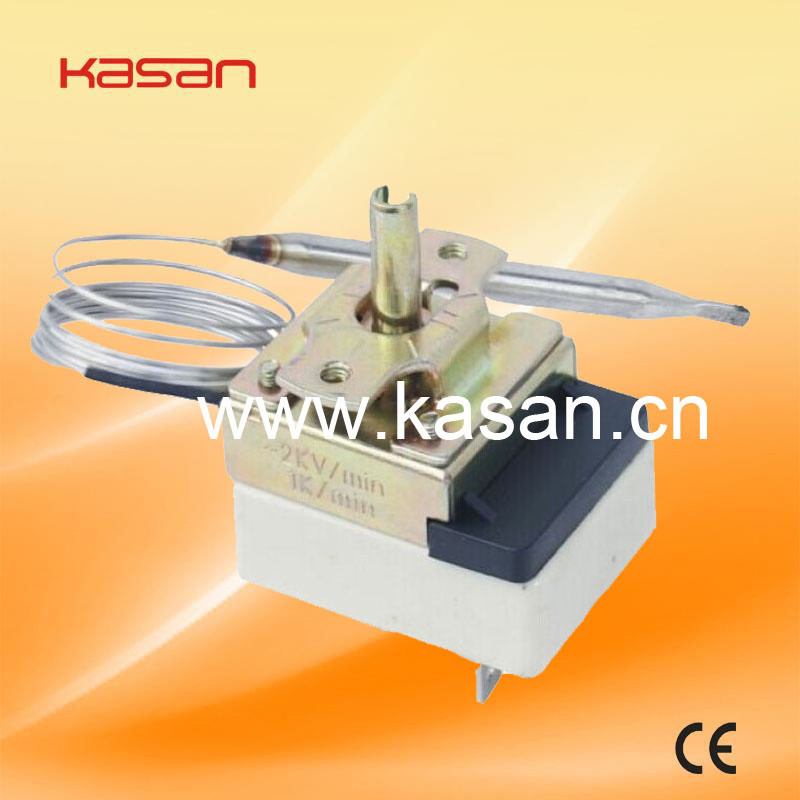

Whd-110b Newest Adjustable Thermostat

Name: Whd-110b Newest Adjustable Thermostat
Brand: all-electronics-online.com
SKU: 689053232
Availability: InStock
Rating: 4.8 (113 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

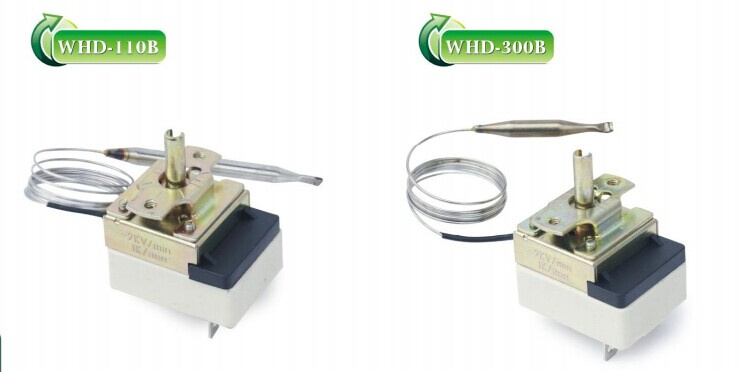

Prod Model:	WHD-110B, WHD-300B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Superior

Product Description

Specifications

. Product description of adjustable thermostat

1)Designed temperature range: -35°C ~ 350 °C

2)Capillary Length: 300-3000mm

3)On-off temperature difference: 3°C- 10°C

4)Fitting size:28±0.25mm

5)Rated at 16A/250V 50/60Hz

6)Main body temperature: T90 / T150

7)Electric strength: 800v/s between two pin.

8)Insulation resistance≥100MΩ

9)Control type: mechanical temperature controller

10)Contact resistance:≤50MΩ

11)Operating life: ≥ 100,000times

12)CERTIFICATES OF CQC AND CE

13)Widely used for electric water heater, washer, electric oven, fried pan, ice machines, fish ponds, etc.

14)Manufactured on customers' request

15)Welcome your consults at any time

MODEL	Temperature Range	Difference	Sensitivity	Capillary length(mm)	Thermometer Bulb Length(mm)
WHD-40B	0-40°C	≤4.5°C	±5°C	400-1800	(110)
WHD-85B	30-85°C	≤4.5°C	±5°C	400-1800	(50)
WHD-93B	30-93°C	≤4.5°C	±5°C	400-1800	(45)
WHD-110B	30-110°C	≤4.5°C	±5°C	400-1800	(40)
WHD-250B	50-250°C	≤8°C	±8°C	500-1500	Φ3×170
WHD-320B	50-350°C	≤10°C	±8°C	500-1500	Φ3×130

"Customer-oriented, Quality first"

1)Designed temperature range: 50°C ~ 350 °C

2)Capillary Length: 300-3000mm

3)On-off temperature difference: 3°C- 10°C

4)Fitting size:28±0.25mm

5)Rated at 16A/250V 50/60Hz

6)Main body temperature: T90 / T150

7)Electric strength: 800v/s between two pin.

8)Insulation resistance≥100MΩ

9)Control type: mechanical temperature controller

10)Contact resistance:≤50MΩ

11)Operating life: ≥ 100,000times

12)Widely used for electric water heater, washer, electric oven, fried pan, ice machines, fish ponds, etc.
