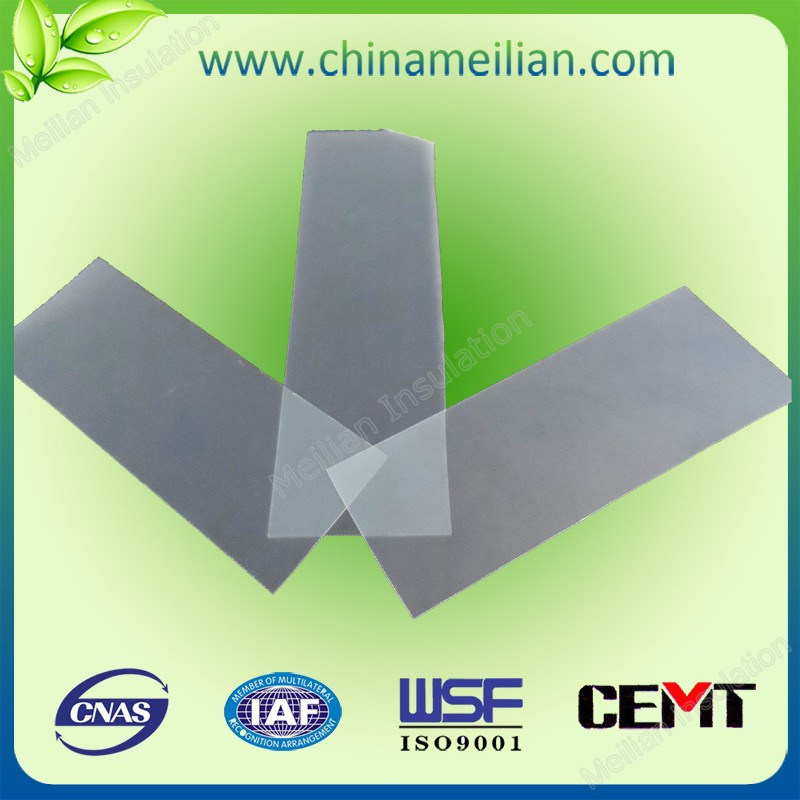

Whosale Electrical Insulating Material G10

Prod Model:	MJ-G10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	According to Customer Requirement
Usage:	Insulation Material Sheet
Others:	Insulation Material Board
Otherss:	Insulation Material Plate
Application:	Generator & Transformer
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	F 155
Maximum Voltage:	>100KV
Brand:	Mj

Product Description

347 Fiberglass Laminate Sheet ,G10 Fr4  Insulation Material Sheet /Board
Appearance:
Natural color White surface smoothly without bubble and impurities, no flow marks, cutting edge
Without fault and separation

Feature:
Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection

Application:
Motor and generator groove strip/slot wedge
Reduce the motor loss, temperature rising, noise and etc
Improve the motor efficiency
Ideal energy-saving products

Packaging Detail: Each package is not more than 100KG, respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements

Delivery Detail: 7-10 working days

FAQ:
(1) Can you give me a discount price?

Answer: It is depending on the volume. The larger the volume is, the more discount you canenjoy.

(2) Why is your price a bit higher than other Chinese suppliers?

Answer: To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer's target price and quality requirement.

(3) How can I get a sample?

Answer: Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.

(4) How can you guarantee the quality of mass production is same with the sample sent to me before?

Answer: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.

(5) How can you deal with quality issues that customer feedback after receiving the goods?

Answer:
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
3) Finally, we will negotiate with our customers to make some compensation.

B asic Information
Product name	G10 Fr4  Insulation Material Sheet /Board
Item No.	MJ-347
Brand	MJ-Epoxy fiberglass sheet
Material	BMI resin and Alkali free fiberglass cloth
Grade	Grade F
Technical Specification
Density	≥1.7g/cm3
Appearance	Natural color Dark brown, surface smoothly  without bubble  and impurities, no flow marks,  Cutting edge without  fault and separation
Sheets Thickness	0.1-50mm
Size	≥1220x980mm
Formation methods	High temperature and high pressure
Thermal stability in 24h	≥200°C
Water absorption	≤1.0%
Flexural strength perpendicular to layer at room temperature at high temperature  180±2°C	≥400 MPa ≥200 MPa
Compressive strength, perpendicular to layer	≥350 Mpa
Impact strength parallel to layer (Charpy method)	≥37 KJ/m 2
Tensile strength	≥280 Mpa
Insulation resistance parallel to the layer At room temperature Immersing in water for 24h	≥1.0×10 4  MW ≥1.0×10 2  MW
Electric strength,perpendicular to the layer(at 90°C±2°C oil.) 0.5-1.0mm 1.1-2.0mm 2.1-3.0mm	≥14.5 MV/m ≥12.4 MV/m                                                                     ≥11.6 MV/m
Dissipation factor Under 1MHz.	≤0.05
Voltage resistance parallel to layer(at 90°C±2°C oil for 1min)	≥40 KV
Combustibility	HB class
