Window Type Current Transformer (Msq-100)

Name: Window Type Current Transformer (Msq-100)
Brand: all-electronics-online.com
SKU: 704857055
Availability: InStock
Rating: 5 (89 reviews)

Price:	US $ 1.67/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSQ-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Grey
Primary Current:	5A~5000A
Class:	0.5/1.0
Frequency:	50/60Hz
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

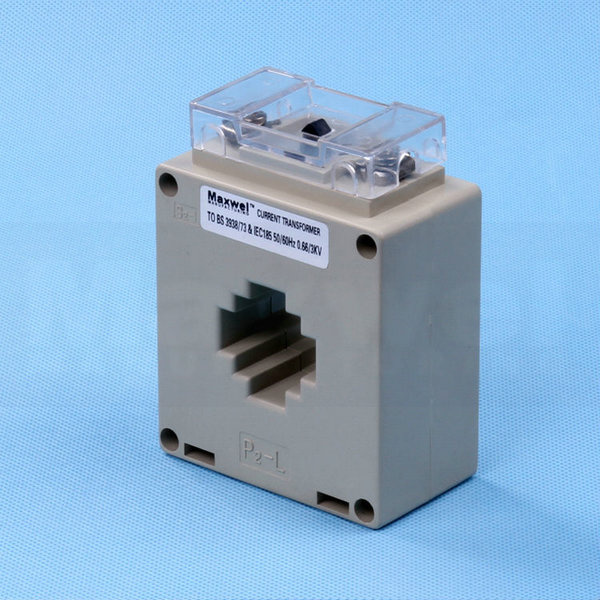

Window type current transformer MSQ-100

Description of MSQ current transformers:
Can be applied to test, control display and record the running of the electrical equipment
Protects the equipment against the damage in the AC circuit with the rated voltage value below 720V and the frequency of 50 to 60Hz
Can also be applied to form complete set of mine transformer
Comply with VDE 0414, BS7626 and IEC 44-1 standards
Sell very well in Greece,Italy,Russian,South African,Egypt etc.
Specification:

Primary current: 5A-5000A

Secondary current: 5A,1A

Standard appoval: VDE0414,BS7626,IEC44-1

Maximum voltage: 720V/AC

Freguency :50-60HZ

Rate load: 5VA-10VA

Class:0.5,1.0

Rated security coefficient: FS<5

Type	Rated current (A)	Rated power (VA)		Weight (kg)
Type	Rated current (A)	Class: 0.5	Class: 1	Weight (kg)
MSQ-100	1500/5	15	15	0.8
	1600/5	15	15	0.8
	2000/5	15	15	0.94
	2250/5	15	15	0.98
	2500/5	15	15	1.1
	3000/5	15	15	1.16
