| Prod Model: |
MDM491 |
| Output: |
4mA~20mA DC(2-wire); 0V/1V~5V/10V DC, 0mA~10mA/20m |
| Pressure Range: |
0~0.035...2MPa |
Product Description

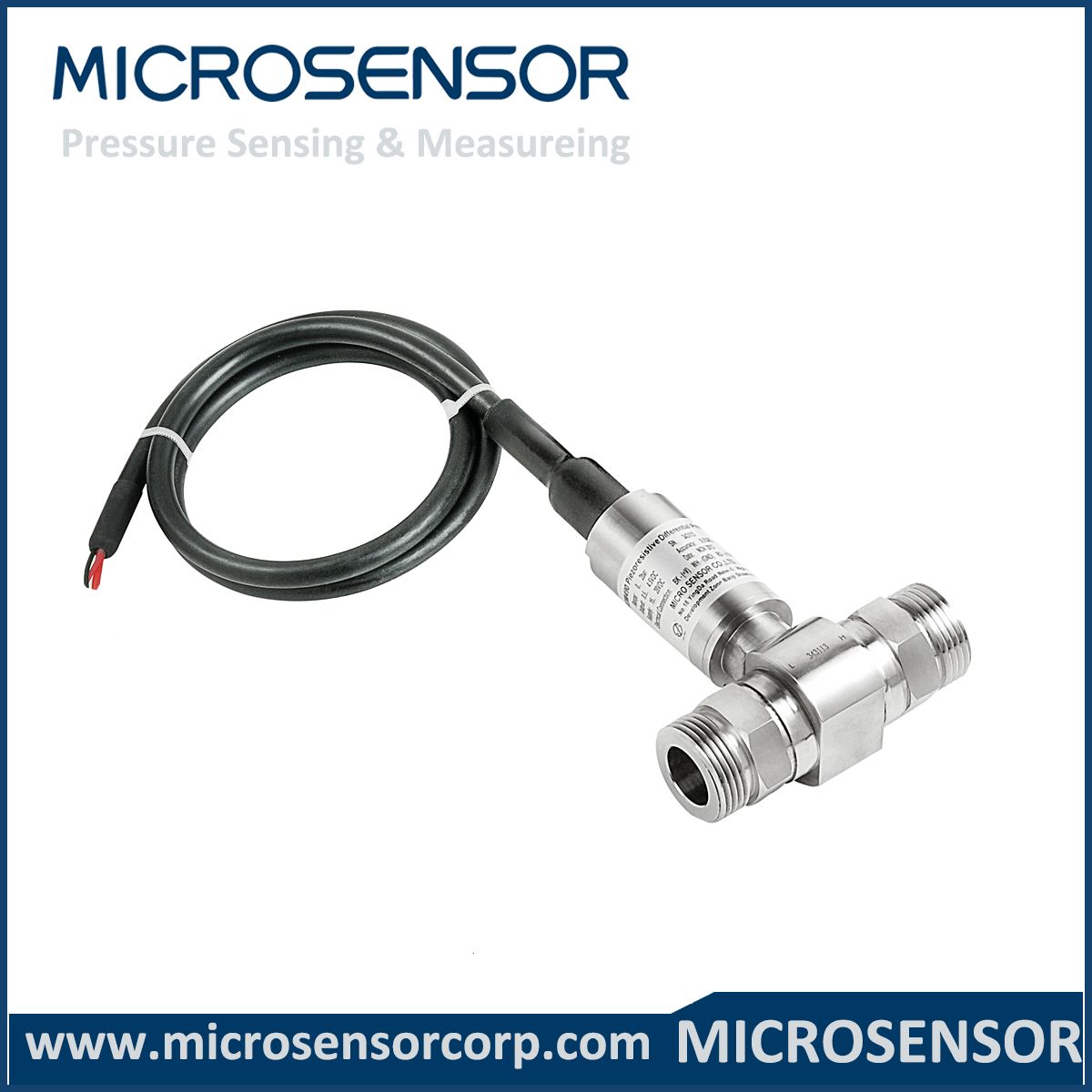

Wire Connection Differential Pressure Transmitter (MDM491)
Features•Full stainless steel construction, compact size, easy installation;
•Welding and full-sealed construction; housing protection IP65;
•Using piezoresistive differential pressure sensor, 316L isolated diaphragm;
•Temperature compensation and aging, stable performance;
•Zero and span adjustable outside for plug connection version.
IntroductionMDM491 Piezoresistive Differential Pressure Transmitter is a compact full-welded (no sealed ring) differential measurement element. The whole product is used for differential pressure measurement of various gases and liquids in pipeline in many fields including petroleum, chemi-industry, power station and hydrology, etc.
Specification| Range Code | 0A | 02 | 03 | 07 | 08 | 09 | 10 | 12 |
| Unit | kPa | MPa |
| Pressure Range | 0~35 | 0~70 | 0~100 | 0~200 | 0~350 | 0~700 | 0~1 | 0~2 |
| + overpressure | 70 | 150 | 200 | 400 | 700 | 1400 | 2.0 | 4.0 |
| -overpressure | 35 | 70 | 100 | 200 | 350 | 700 | 1.0 | 1.0 |
| Static Pressure | ≤20MPa |
| | Min. | Typ. | Max. | Unit |
| Accuracy | | | 0.5 | | ±%FS |
| Zero Thermal Error | ≤ 200kPa | | 0.75 | 1.25 | ±%FS,@35ºC |
| > 200kPa | | 0.5 | 0.75 |
| Span Thermal Error | ≤ 200kPa | | 0.75 | 1.25 |
| > 200kPa | | 0.5 | 0.75 |
| Stability | ≤ 200kPa | 0.5 | ±%FS/year |
| > 200kPa | 0.2 |
| Static Pressure Effect | 0.05 | ±%FS, per 100kPa |
| Compensation temp. | 0~70 |
ºC
|
| Operation temp. | -10~80 |
| Storage temp. | -40~120 |
| | | | | | | |
Electric Characteristic
Power Supply:15V~28V DC
Output Signal: 4mA~20mA DC(2-wire); 0V/1V~5V/10V DC, 0mA~10mA/20mA DC(3-wire)
Electric Connection: plug or cable
Response Time:(10%~90%): ≤1ms
Insulation Resistance: 100MΩ, 50VDC
Construction Material
Housing: SS 1Cr18Ni9Ti
Diaphragm: SS 316L
Filled liquid: silicon oil
Environment Condition
Shock Effect: ≤±1% at 3gRMS,30Hz~2000Hz
Impact: ≤1% at 100g, 10ms
Media: liquid or gas which is compatible with construction material

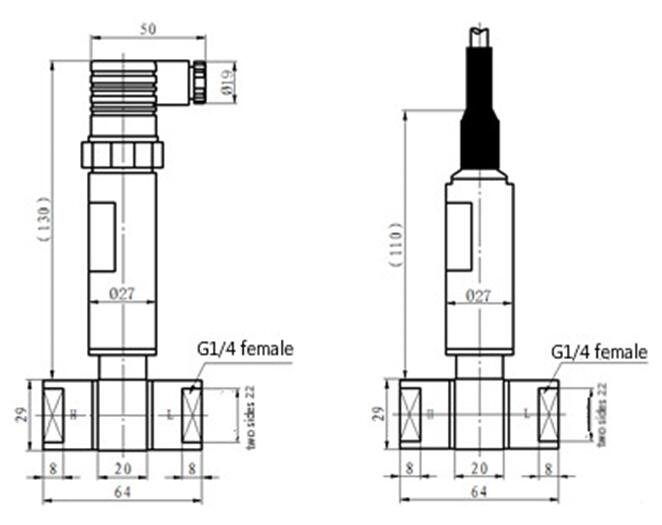

Outline Construction
(Unit:mm)
(Plug connection) (Cable connection)

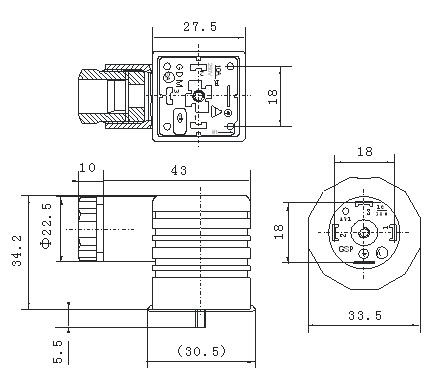

Plug Outline Construction and Arrangement Electric Connection:(1) Plug Connection| Pin | 2-wire | 3-wire |
| 1 | +V | +V |
| 2 | 0V/+OUT | GND |
| 3 | Null | +OUT |
(2) Cable Connection| Wire Color | 2-wire | 3-wire |
| Black | +V | +V |
| Red | 0V/+OUT | +OUT |
| White | Null | GND |
Order Guide: | MDM491 | Piezoresistive Differential Pressure Transmitter |
| | | Code | Pressure Range |
[0~X]
kPaMPa | Range Code | Pressure Range
kPa | Overpressure kPa | Range Code | Pressure Range
MPa | Overpressure MPa |
| + | - | + | - |
| 0A | 0~35 | 70 | 35 | 08 | 0~0.35 | 0.7 | 0.35 |
| 02 | 0~70 | 150 | 70 | 09 | 0~0.7 | 1.4 | 0.7 |
| 03 | 0~100 | 200 | 100 | 10 | 0~1.0 | 2.0 | 1.0 |
07
| 0~200 | 400 | 200 | 12 | 0~2.0 | 4.0 | 1.0 |
| | | Code | Output Signal |
| E | 4mA~20mA DC |
| F | 1V~5V DC |
| J | 0V~5V DC |
| Q | 0mA~10mA DC |
| U | 0mA~20mA DC |
| V | 0V~10V DC |
| | | Code | Construction Material |
| Diaphragm | Pressure port | Housing |
| 22 | SS 316L | SS | SS |
| | 24 | SS 316L | SS 316L | SS 316L |
| | | Code | Others |
| C1 | M20×1.5 male with face type seal |
| C2 | G1/4 male |
| C3 | G1/2 male |
| C4 | G1/4 female |
| B1 | 4-core plug connection |
| B2 | Cable connection length:1.5m |
| M3 | 3LCD digital indicator (only 4~20mADC) |
| M4 | 3LED digital indicator (only 4~20mADC) |
| | |
| MDM491 [0~100]kPa E 22 C4B2 the whole spec. |
Order Note:1. We suggest to install tri-valve between the measured point and transmitter to protect the media adding on transmitter's positive and negative cavities slowly;
2. We suggest to make two pressure ports horizontally to reduce installation direction effect;
3. Please pay attention that the static pressure should be less than 20MPa, transmitter positive and negative cavity should be in the rating pressure range;
4.Digital indicator information, please refer to MPM480 datasheet;
5. If the user has special requirement, please feel free to contact our company.
