Zhuhai Yukming Technology Co., Ltd. >> Wire-Wound Chip Power Inductor Cbc3225t100kr Electronic Component

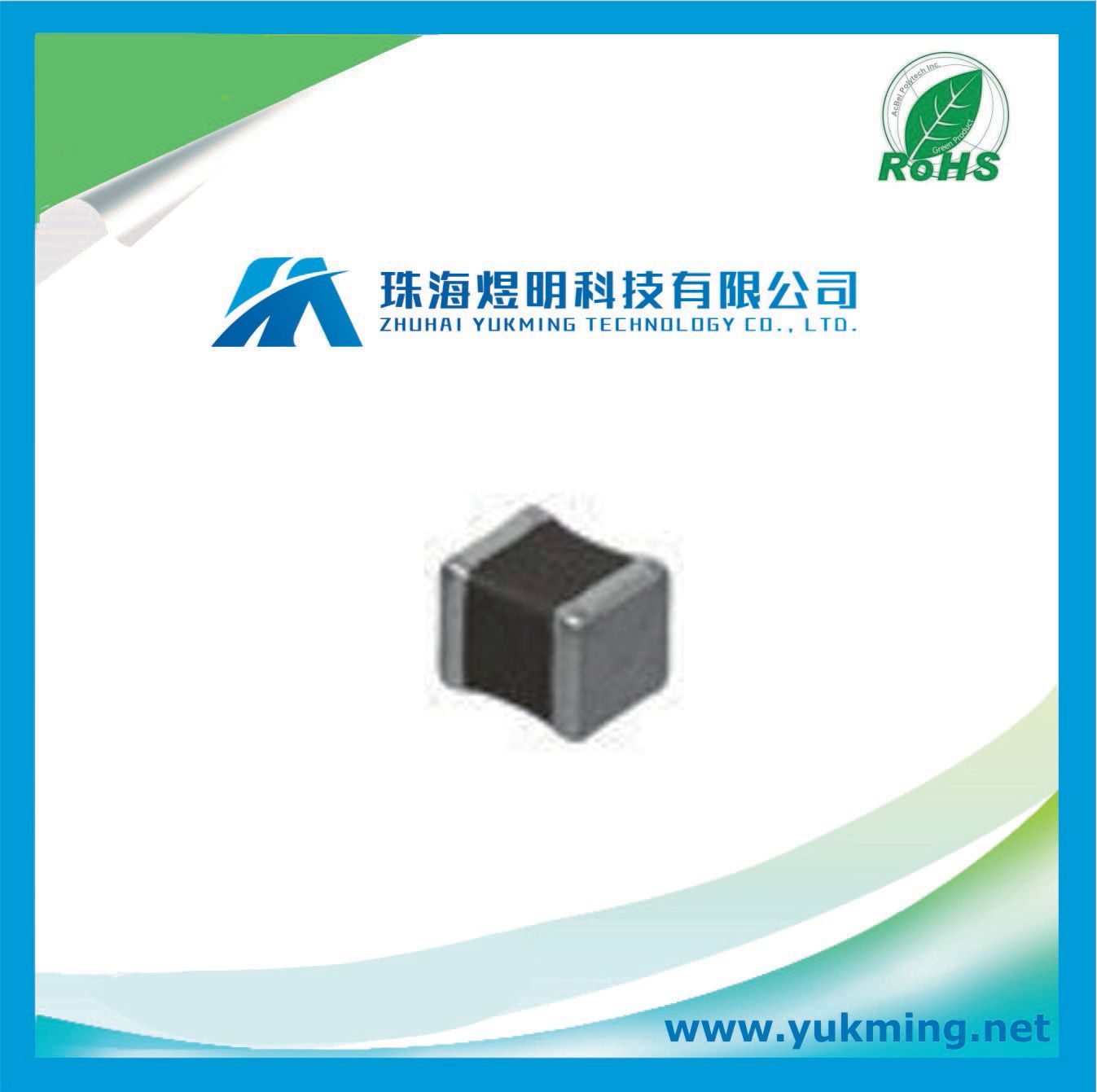

Wire-Wound Chip Power Inductor Cbc3225t100kr Electronic Component

Wire-Wound Chip Power Inductor Cbc3225t100kr Electronic Component
Price: US $ 0.0789/Piece
Min Order: 3000/Piece
Pay Type: L/C,T/T,D/P
Prod Model: CBC3225T100KR
Type: Fixed Inductor
Brand: Taiyo

Product Description

WIRE-WOUND CHIP POWER INDUCTORS (CB SERIES)

MANUFACTURER
Taiyo Yuden

PRODUCT CATEGORY
Inductor Surface Mount

DESCRIPTION
Inductor Power Chip Wirewound 10uH 10% 100KHz Ferrite 900mA 172.9mOhm DCR 1210 T/R

Specifications
EU RoHS Compliant
Type Power Chip
Technology Wirewound
Core Material Ferrite
Inductance (H) 10u
Tolerance 10%
Test Frequency (Hz) 100K
Maximum DC Current (A) 900m
Maximum DC Resistance (Ohm) 172.9m
Minimum Self Resonant Frequency (Hz) 23M
Case Size 1210
Product Length (mm) 3.4
Product Height (mm) 2.7
Product Depth (mm) 2.7
Packaging Tape and Reel
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 105

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
